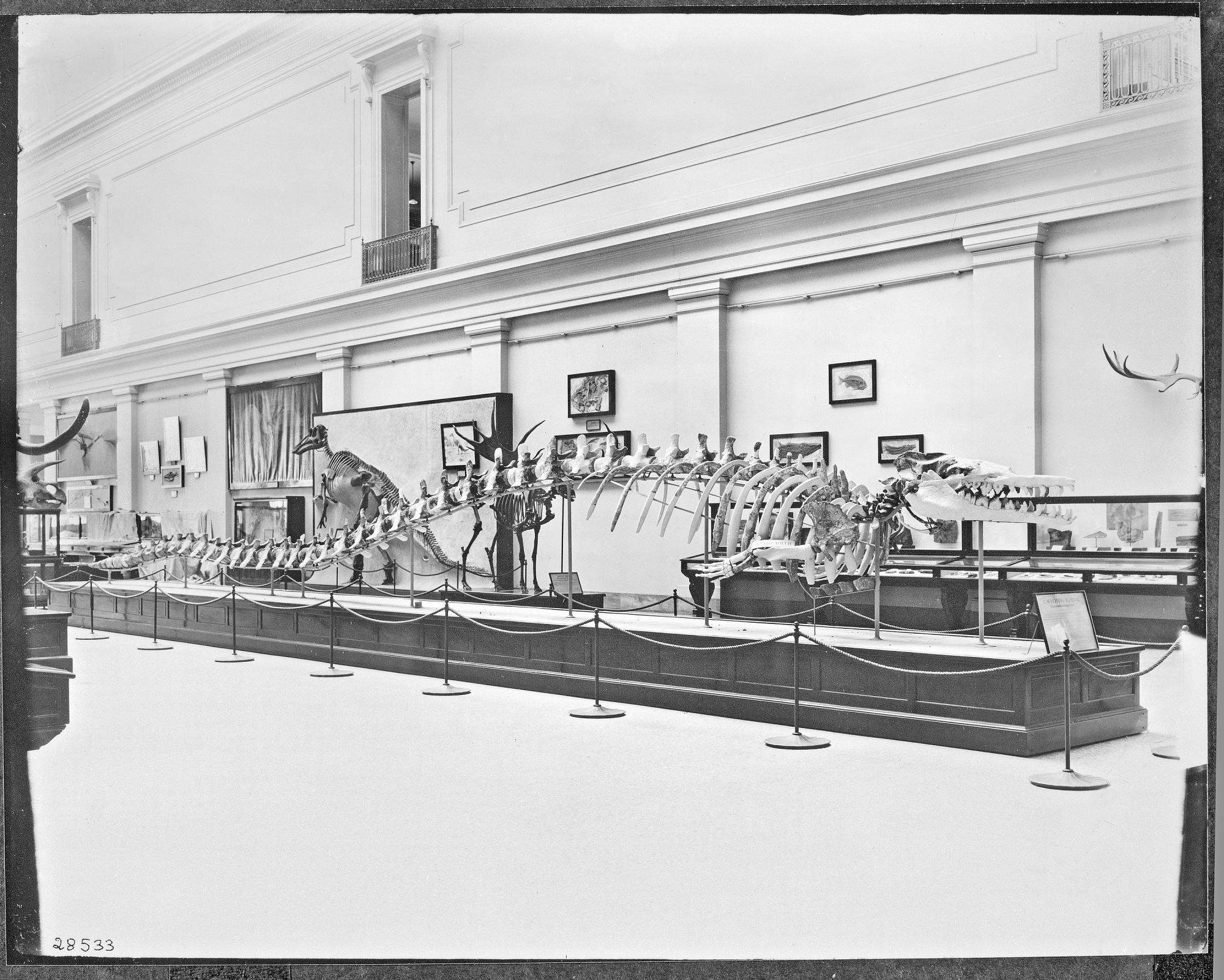

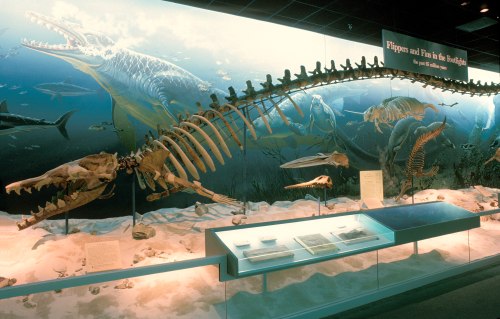

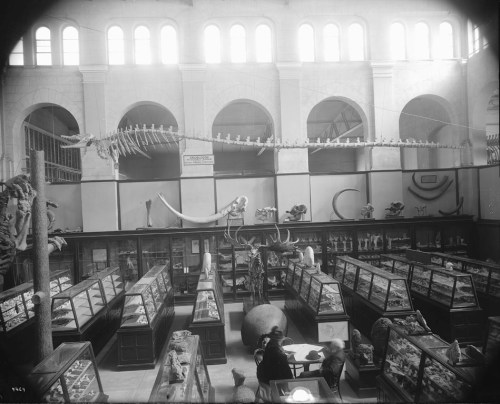

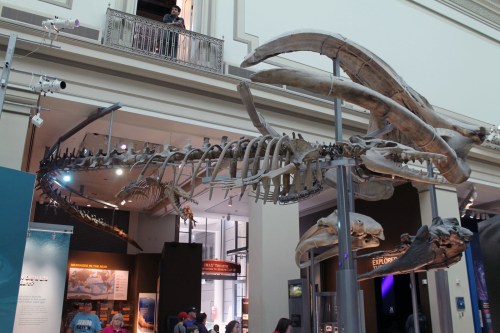

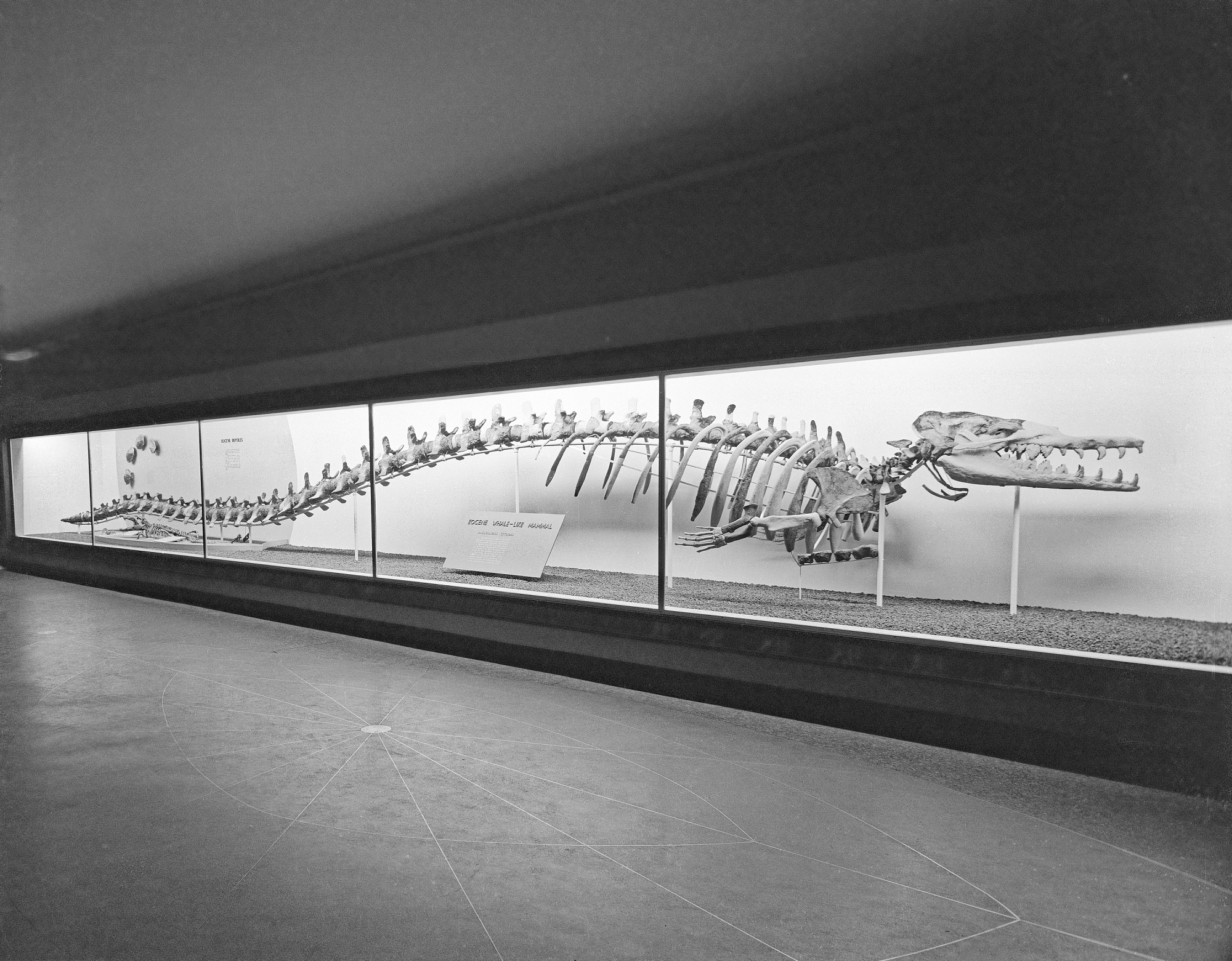

The historic Basilosaurus at NMNH. Photo by the author.

I realize the blog has been quiet lately. The usual excuses apply – work responsibilities, preparing to relocate, and of course the crushing despair of our present political reality. I do have a fun announcement for people in the Washington, DC area, however. I’ll be speaking at the April 19th meeting of the Paleontological Society of Washington, which is held after hours at the National Museum of Natural History. Meetings are open to all. The full announcement flyer is here. Many thanks to the PSW for having me! The talk abstract is below.

Extinct Monsters: The Hybrid Identities of Fossil Mounts

Mounted skeletons of dinosaurs and other prehistoric animals are an enduring symbol of natural history museums. However, fossils do not come out of the ground bolted to armatures. These iconic displays occupy a paradoxical middle ground between scientific specimens and cultural objects. Many have endured for generations, taking on second lives independent of their original purpose. This presentation will unpack the densely-layered identities of fossil mounts, tracking their scientific, artistic, and cultural significance from the 18th century to today.

Leave a comment

Filed under Extinct Monsters, fossil mounts, history of science, museums

The National Fossil Hall Rejects

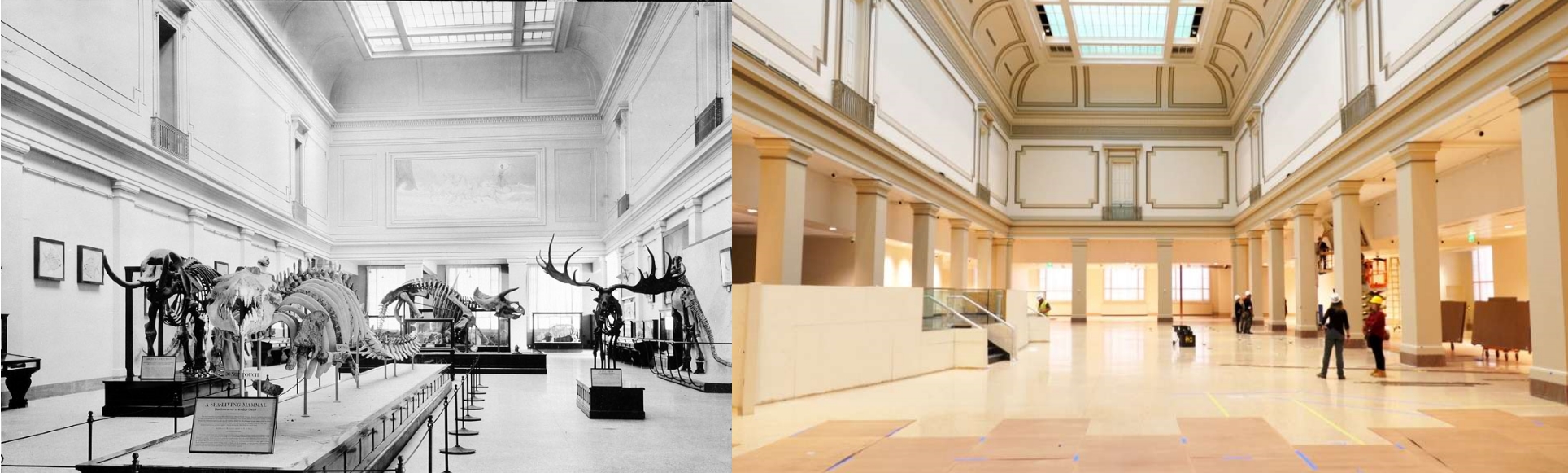

In April 2014, the paleontology exhibits at the National Museum of Natural History closed for a wall-to-wall renovation. The re-imagined National Fossil Hall will reopen in 2019. We are now approaching the halfway point of this journey, which seems like a fine time to say farewell to some of the more charismatic specimens that are being rotated off display.

In comparison to the old exhibit, the new version will be influenced by a less-is-more design philosophy. While there will not be quite as many individual specimens on display, those that are included will be more visible and will be explored in more detail. This combined with the significant number of new specimens being added means that many old mainstays had to be cut from the roster. Cuts occur for a variety of reasons, including eliminating redundancy, preserving specimens that were not faring well in the open-air exhibit space, and making specimens that have been behind glass for decades available to a new generation of researchers. Retired specimens are of course not going far – they have been relocated to the collections where students and scientists can study them as needed.

Stegomastodon (USNM 10707)

Stegomastodon in 2014. Photo by the author.

The Stegomastodon in 2014. Photo by the author.

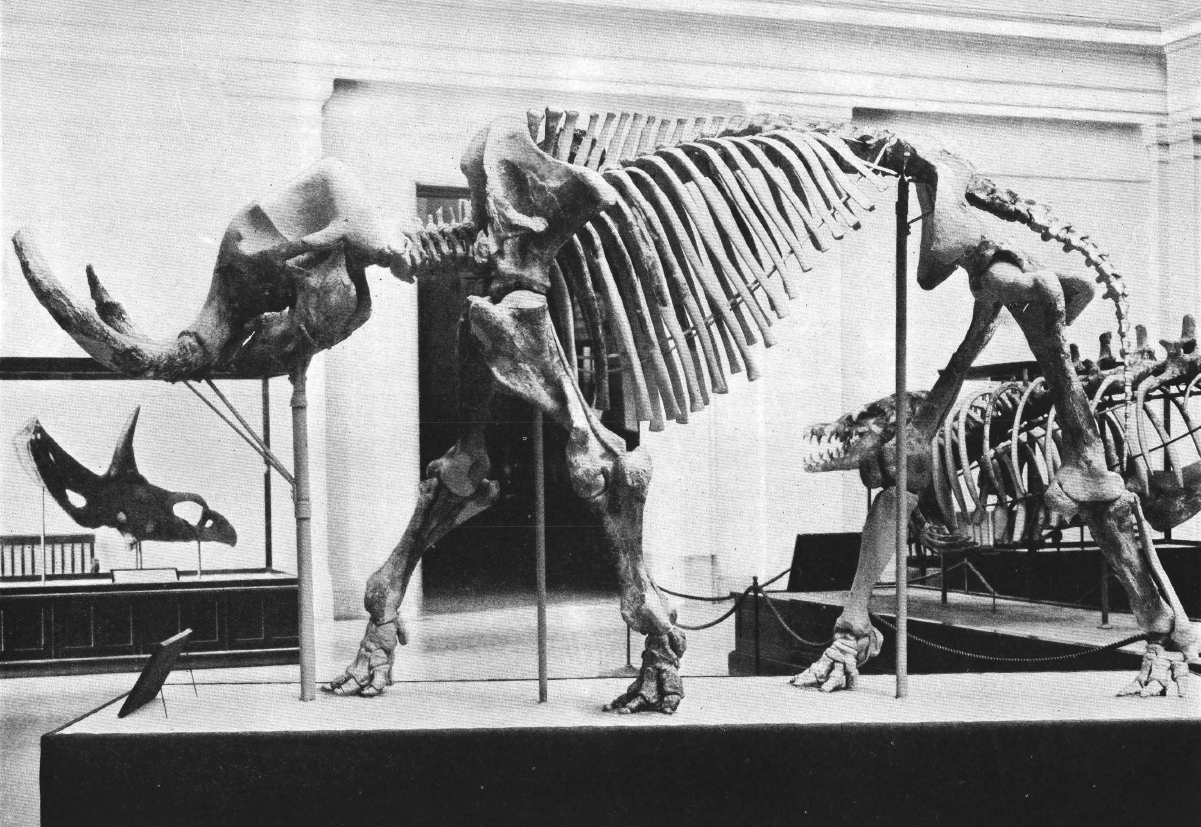

The young male Stegomastodon is the largest single specimen that is being retired from the NMNH fossil halls. James Gidley and Kirk Bryan collected this skeleton in the San Pedro Valley of Arizona, during the same 1921 collecting trip that produced the museum’s Glyptotherium (which will be returning). While the genus Stegomastodon was erected in 1912, Gidley referred his specimen to a new species, S. arizonae, due to its more “progressive” physiology and slightly younger age. By 1925, the skeleton was mounted and on display in the Hall of Extinct Monsters. While the original mount used the real fossil tusks, these were eventually replaced with facsimiles.

There are at least two reasons the Stegomastodon will not be returning in 2019. First, there are already two big elephants on display: the mammoth and the mastodon. Elephants take up a lot of space, and a third proboscidean offers diminishing returns when compared to the amount of floor space it requires. More importantly, the Stegomastodon is a holotype specimen, and the exhibit team elected to remove most of these important specimens from the public halls. This is both to keep them safe from the damaging effects of vibration, humidity, and fluctuating temperature, as well as to make them more accessible to researchers.

Paramylodon (USNM V 15164)

Collections staff

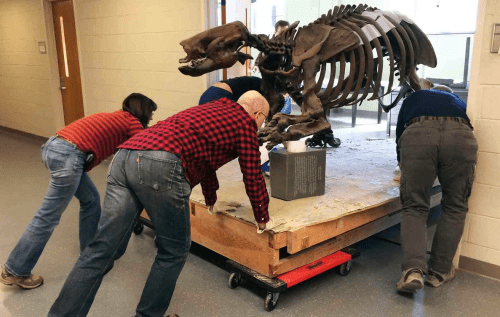

Collections staff wheel Paramylodon out of the exhibit hall. Source

During the 1960s, Assistant Curator Clayton Ray oversaw the construction of the short-lived Quaternary Hall, which was reworked into the Hall of Ice Age Mammals. This meant creating a number of brand-new mounts, including several animals from the Rancho La Brea Formation in Los Angeles County. La Brea fossils are not found articulated, but as a jumble of individual elements preserved in asphalt. The Los Angeles Natural History Museum provided NMNH with an assortment of these bones, which preparator Leroy Glenn assembled into two dire wolves, a saber-toothed cat, and the sheep cow-sized sloth Paramylodon.

Paramylodon is another cut for the sake of eliminating redundancy: the two colossal Eremotherium completely overshadow this more-modestly sized sloth. This mount also needed some TLC. For aesthetic reasons, the Paramylodon was given an internal armature, which involves drilling holes through each of the bones. Last year, preparator Alan Zdinak took on the task of disassembling and conserving these damaged fossils with assistance from Michelle Pinsdorf.

Zygorhiza (USNM PAL 537887)

efwewfwefwe

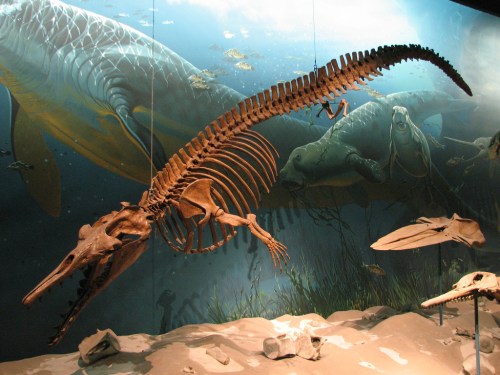

Zygorhiza cast in the Life in the Ancient Seas gallery. Source

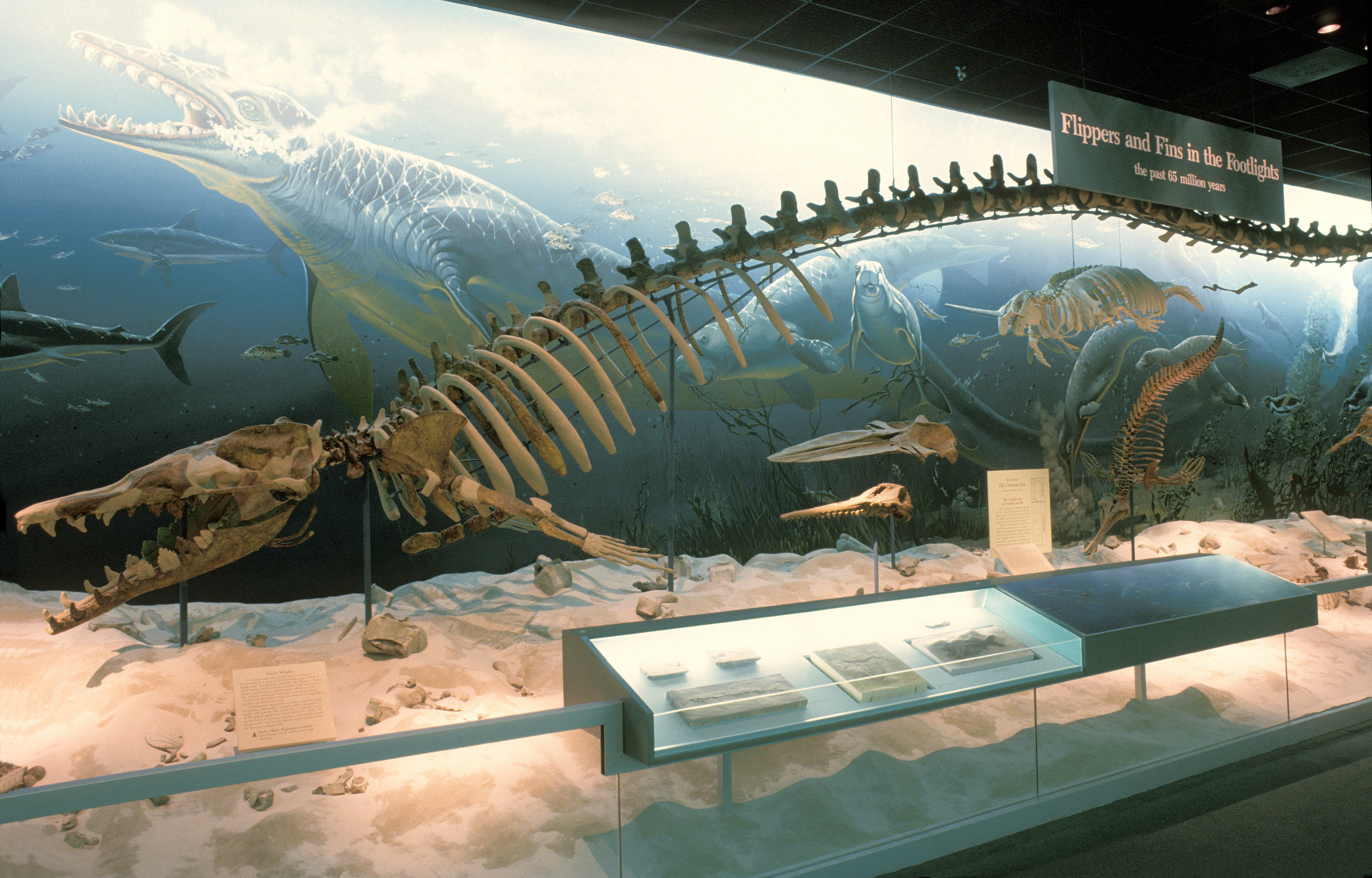

When the Life in the Ancient Seas gallery opened in 1990, it featured a historic Basilosaurus skeleton that had been on display since the 1890s. This ancestral whale was relocated to the Ocean Hall in 2008, and a cast of the smaller whale Zygorhiza took its place in Life in the Ancient Seas. Since there is now an extensive whale evolution exhibit in Ocean Hall, this subject will not be a major part of the new paleontology exhibit. Both Zygorhiza and the dolphin Eurhinodelphis will have to go.

After the old fossil halls closed, Smithsonian affiliate Mark Uhen managed to acquire the retired Zygorhiza mount for George Mason University, where he is a professor. The whale is now on display in the Exploratory Hall atrium, suspended 30 feet in the air.

Tapirs, Horses, and Oreodonts

Photo by the author.

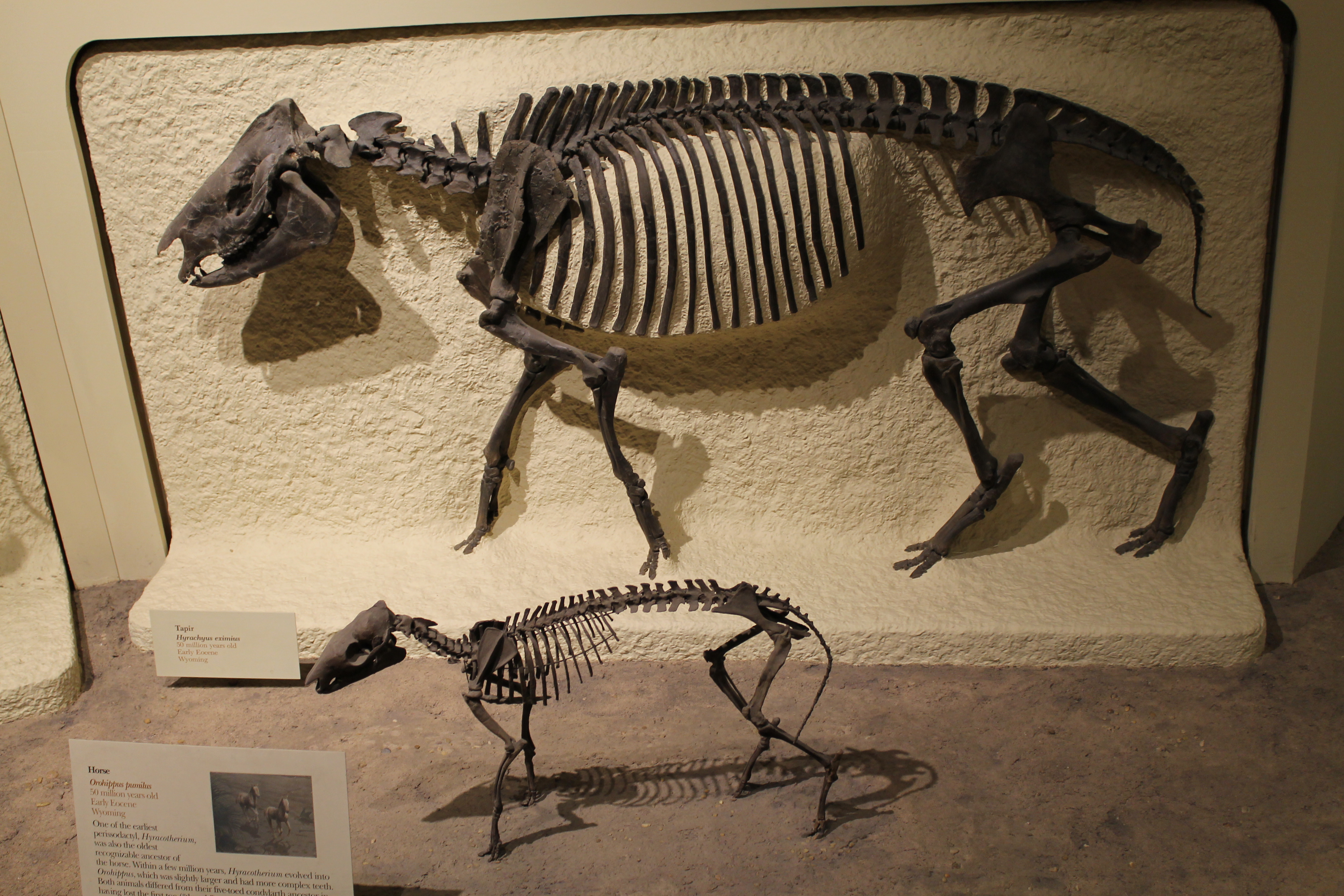

The tapir Hyrachyus and the mini-horse Orohippus. Photo by the author.

The last two major renovations of the NMNH fossil exhibits occurred when mammal specialists were in charge of the Paleobiology Department, and as a result the halls ended up with a lot of Cenozoic mammal mounts (at least 50, by my count). Virtually every major group was covered, often several times over. This menagerie has been culled for the new hall, which will focus on specimens that best tell the story of Earth’s changing climate during the past 66 million years. Casualties include the trio of Hagerman’s horses, the smaller horse Orohippus, the tapirs Hyrachyus and Helaletes, the ruminant Hypertragulus, and the oreodont Merycoidodon. Interestingly, the classic hall’s three large rhinos are sticking around, and will in fact be joined by at least one more.

Brachyceratops (USNM 7953)

Brachyceratops/Rubeosaurus

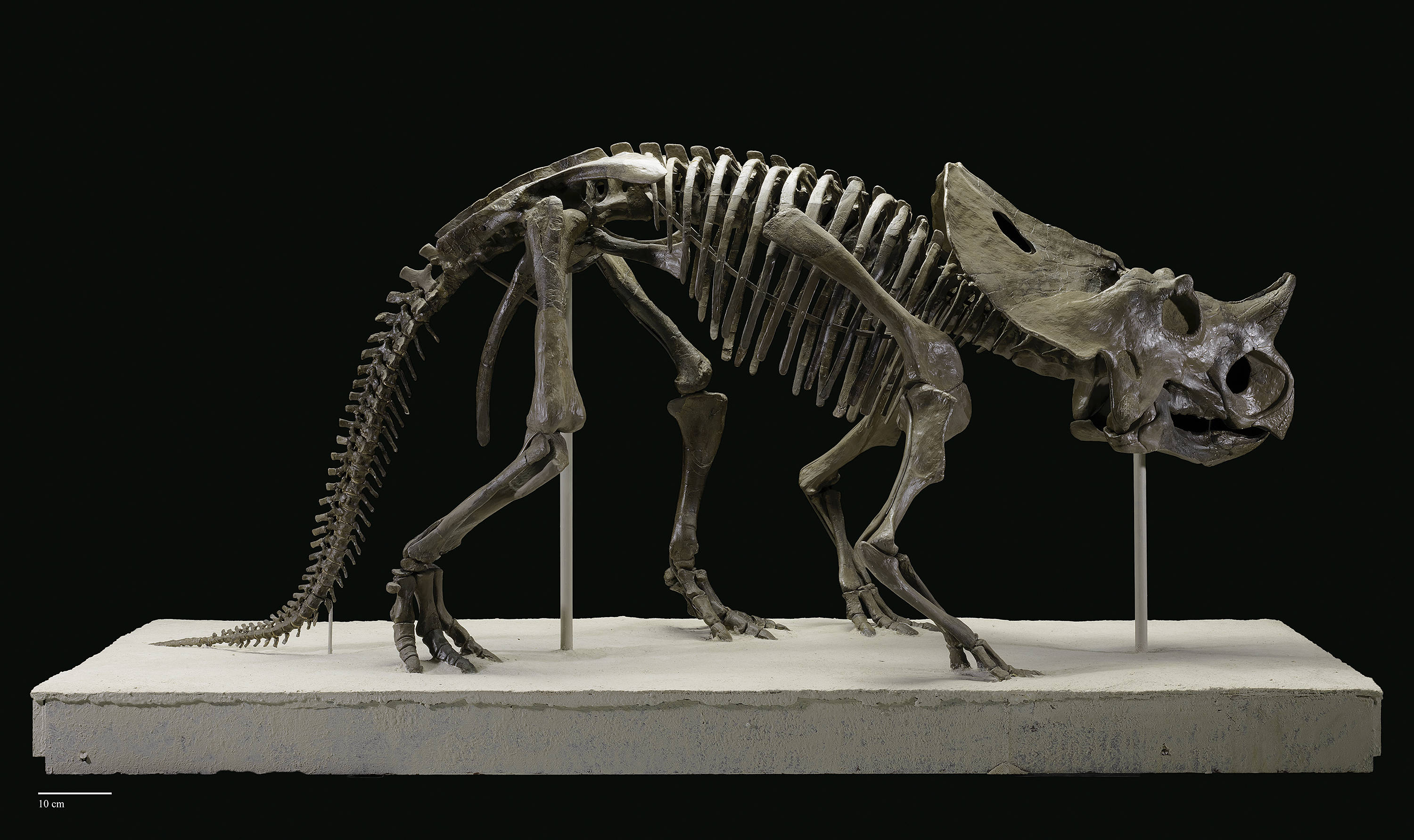

Brachyceratops/Rubeosaurus. Photo by NMNH Department of Paleobiology.

The pocket-sized ceratopsian historically called Brachyceratops has been on display at NMNH since 1922. Discovered in 1913 by Curator of Fossil Reptiles Charles Gilmore, this animal is one of only a few dinosaur species excavated, prepared, described, and exhibited entirely in-house at NMNH. Assembled by Norman Boss, the mount is actually a composite of five individuals Gilmore found together in northeast Montana.

Gilmore described Brachyceratops as an unusually small but full-grown ceratopsian, but in 1997 Scott Sampson and colleagues confirmed that all five specimens were juveniles. Unfortunately, the fossils lack many diagnostic features that could link them to an adult form. According to Andrew McDonald, the most likely candidate is Rubeosaurus. Nevertheless, without the ability to recognize other growth stages of the same species, the name Brachyceratops is unusable and is generally regarded as a nomen dubium.

It is not difficult to surmise why the Brachyceratops would end up near the bottom of the list of specimens for the new exhibit. It is not especially large or impressive, it doesn’t have a recognizable name (or any proper name at all, really) and it doesn’t tell a critical story about evolution or deep time. With limited space available and new specimens being prepped for display, little Brachyceratops will have to go.

Corythosaurus (USNM V 15493)

Corythosaurus as seen in 1960s

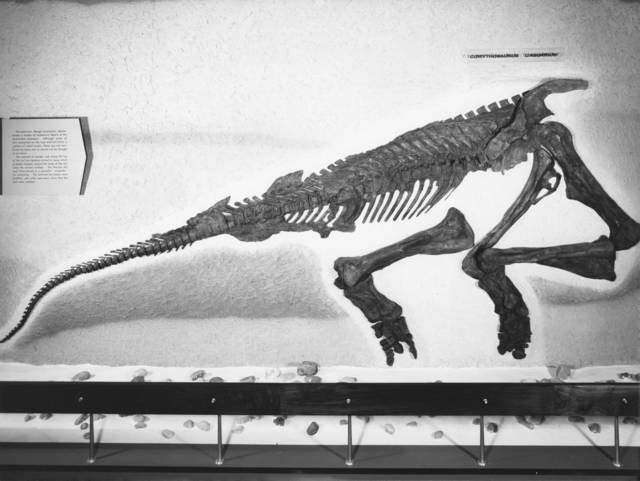

Corythosaurus as seen in the 1960s. Photo courtesy of the Smithsonian Institution Archives.

In 1910, Barnum Brown of the American Museum of Natural History launched the first of several expeditions to the Red Deer River region of Alberta. Seeing Brown’s success and under pressure to prevent the Americans from hauling away so much of their natural heritage, the Canadian Geological Survey assembled their own team of fossil collectors in 1912. This group was headed by independent fossil hunter Charles Sternberg, who was accompanied by his sons George, Levi, and Charles Jr. Having secured several articulated and nearly complete dinosaur skeletons, Brown’s team moved on five years later. The Sternbergs, however, remained at the Red Deer River, and continued to collect specimens for the Royal Ontario Museum.

In 1933, Levi discovered a well-preserved back end of a Corythosaurus, complete with impressions of its pebbly skin. The Smithsonian purchased this specimen in 1937 for use at the Texas Centennial Exposition. It eventually found its way into the permanent paleontology exhibit at NMNH. Unfortunately, the half-Corythosaurus ended up crowded behind more eye-catching displays and was often overlooked by visitors. In the new exhibit, it will have to move aside to make room for new Cretaceous dinosaurs.

Assorted Dinosaur Skulls

Triceratops skull

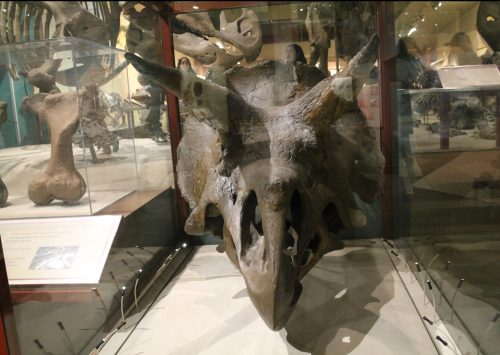

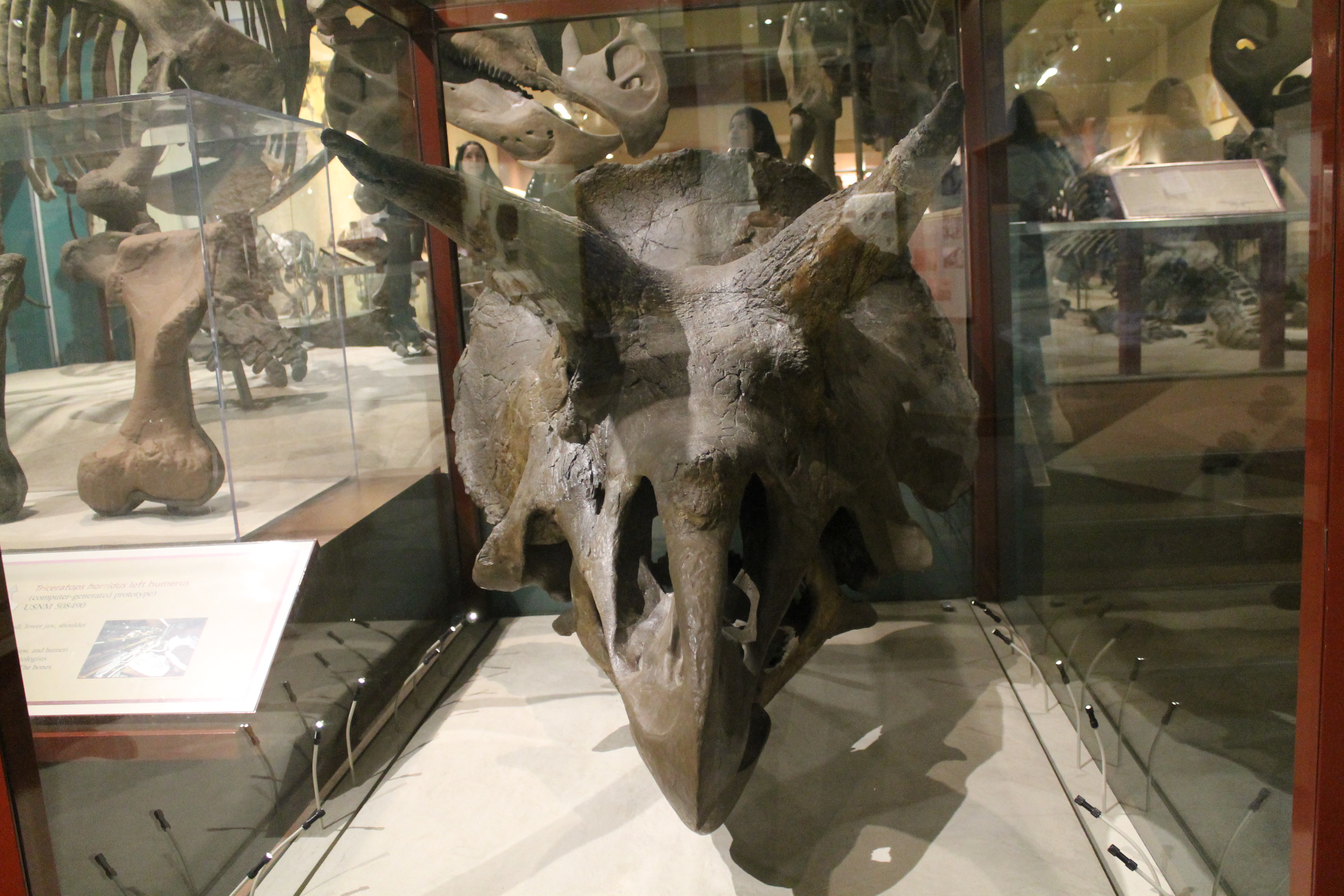

Original skull of Hatcher the Triceratops, one of many dinosaur skulls coming off exhibit. Photo by the author.

In addition to complete dinosaur mounts, the old NMNH fossil halls included several dinosaur skulls, ranging from the giant cast of the AMNH Tyrannosaurus to the miniscule Bagaceratops. Most of these standalone skulls have been cut, although a few (Diplodocus, Camarasaurus, and Centrosaurus) are sticking around, to say nothing of new specimens being added. Other retirees in this category include the original skulls of Nedoceratops (labeled Diceratops), TriceratopsEdmontosaurus, and Corythosaurus, as well as casts of Protoceratops, Pachycephalosaurus, Stegoceras, Psittacosaurus, and Prenocephalae.

As usual, the reasons these specimens are coming off exhibit are varied. The Nedoceratops skull is a one-of-a-kind holotype that has been the subject of a great deal of conflicting research over its identity and relevance to Maastrichtian ceratopsian diversity. Putting this specimen back in the hands of scientists should help clarify what this bizarre creature actually is. Meanwhile, many of the other skulls (e.g. Protoceratops, Psittacosaurus, and Prenocephalae) come from Asian taxa. In the new fossil hall, the Mesozoic displays will primarily focus on a few well-known ecosystems in North America.

Dolichorynchops (USNM PAL 419645)

Dolichorhynchops from Montana, mounted by Arnie Lewis. Photo by Chip Clark.

Dolichorhynchops in the Life in the Ancient Seas exhibit. Photo by NMNH Department of Paleobiology.

The NMNH Dolichorhynchops is a relatively new mount. It was collected in Montana in 1977 and acquired in a trade with the Denver Museum of Nature and Science. Arnie Lewis prepared it for display in 1987. 24 years later, “Dolly” is being retired to the collections. This is not due to anything wrong with the specimen, but to make way for a bigger, cooler short-necked plesiosaur. NMNH purchased a cast of Rhomaleosaurus from the Henry Ward Natural Science Establishment in the 1890s, but it has not been on exhibit since at least 1910. This cast, which is based on an original at the National Museum of Ireland (and which is identical to the cast at the London Natural History Museum) will make its first public appearance in over a century in the new National Fossil Hall. Sorry, Dolichorhynchops.

This has hardly been a comprehensive list – just a few examples that illustrate the decisions that are made when planning a large-scale exhibit. If you are curious about other favorites from the old halls, you can check on their fate by searching the Department of Paleobiology’s online database. Just go to Search by Field and enter “Deep Time” under Collection Name to see most of the specimens earmarked for the new exhibit.

References

Gidley, J.W. 1925. Fossil Proboscidea and Edentata of the San Pedro Valley, Arizona. Shorter Contributions to General Geology (USGS). Professional Paper 140-B, pp. 83-95.

Gilmore, C.W. 1922. The Smallest Known Horned Dinosaur, BrachyceratopsProceedings of the US National Museum 63:2424.

Gilmore, C.W.  1941. A History of the Division of Vertebrate Paleontology in the United States National Museum. Proceedings of the United States National Museum Vol. 90.

Gilmore, C.W. 1946. Notes on Recently Mounted Reptile Fossil Skeletons in the United States National Museum. Proceedings of the United States National Museum Vol. 96 No. 3196.

McDonald, A.T. 2011. A Subadult Specimen of Rubeosaurus ovatus(Dinosauria: Ceratopsidae), with Observations on other Ceratopsids from the Two Medicine Formation. PLoS ONE 6:8.

Sampson, S.D., Ryan, M.J. and Tanke, D.H. 1997. Craniofacial Ontogeny in Centrosaurine Dinosaurs: Taxonomic and Behavioral Implications. Zoological Journal of the Linnean Society 12:1:293-337.

5 Comments

Filed under collections, dinosaurs, exhibits, Extinct Monsters, fossil mounts, history of science, mammals, marginocephalians, museums, NMNH, ornithopods, reptiles, theropods

Painting the Ancient Seas

During a 1958 benchmarking trip to a number of North American natural history museums, Smithsonian exhibits specialist Ann Karras wrote to Assistant Secretary Remington Kellogg about the state of artwork in paleontology displays. She noted with some frustration that since the paleontological community’s early 20th century love affair with Charles Knight, very little had been accomplished in this field. Everywhere she went, Karras saw reproductions of the same decades-old Knight paintings, supplemented by only the most tentative attempts at original artwork. As Karras postulated, “reverence for [Knight’s] work on the part of paleontologists may have thwarted any ambitions in that area of illustration for some years.” The sole outlier was the Peabody Museum of Natural History, home of the 1947 Age of Reptiles mural by Rudolph Zallinger. Impressed by the scale and quality of this 110-foot fresco, Karras suggested that the Smithsonian  invest in a similarly monumental piece of up-to-date paleoart at some point in the future.

Karras’s wish was finally realized in 1990, with the debut of Eleanor Kish’s epic Life in the Ancient Seas mural in the exhibit of the same name. Sixteen feet high and 130 feet long (with a sixteen by twenty foot supplement on the opposite wall), this mural is even larger than Zallinger’s better-known magnum opus. It also covers more of Earth’s history, spanning 541 years of deep time across the entire Phanerozoic Eon. But while The Age of Reptiles charts the progression of life on land, Life in the Ancient Seas follows the denizens of the undersea realm. From the explosion of invertebrate diversity in the Cambrian to the proliferation of aquatic mammals in the recent past, the mural demonstrates that the history of life is most thoroughly documented by marine fossils.

Dunkleosteus. Art by Eleanor Kish. Copyright Smithsonian Institution.

Close-up of Dunkleosteus and eurypterids. Art by Eleanor Kish. Source

The idea to include a mural in the Life in the Ancient Seas exhibit came relatively late. There was no mention of the artwork in the 1987 briefing document for potential donors, and as late as June of that year curator Nicholas Hotton was writing in hopeful terms about the inclusion of a full-color illustration of Dolichorhynchops. Eventually, however, the exhibit team got the go-ahead to start looking for an artist. Content Specialist Linda Deck started by assembling a list of three dozen prominent paleoartists. She sent each of them a letter of invitation, describing the project and emphasizing the immense scale of the desired product. Half of the artists responded with resumes and portfolio samples, and from these the exhibit team narrowed the field to six candidates*.

The short-list candidates were then given a $1000 stipend to paint a small sample piece. Each artist was provided with the scenario (a group of ammonites releasing a cloud of ink upon being attacked by a mosasaur), an assortment of fossil reference photos, and encouragement to get in touch with NMNH curators as needed. Of the five artists who completed this challenge, the exhibit team agreed unanimously that Kish’s work was the best fit for the project. Not only did she demonstrate the ability to accurately render the animals with anatomical precision, her bold color palate would work well as the backdrop for the entire exhibit.

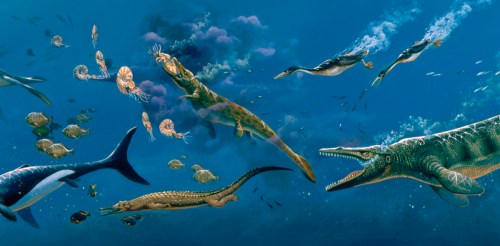

Art by Eleanor Kish. Copyright Smithsonian Institution.

The mosasaur section of the mural, presumably not far off from Kish’s original concept piece. Art by Eleanor Kish. Courtesy of the Smithsonian Institution.

Eleanor (or Ely) Kish was born in 1924 to a family of artists. Growing up in New Jersey, she became a naturalized Canadian citizen in 1972. While Kish was a professional artist for most of her adult life, her career in paleontological illustration kicked off in the 1970s, at Ottawa’s Canadian Museum of Nature. It was there that she worked with paleontologist Dale Russell on some of the earliest Renaissance-era dinosaur reconstructions (an assortment of paintings from Russel’s An Odessey of Time: The Dinosaurs of North America can be seen here). Tales of dinosaur art from this era often focus on Gregory Paul, John Sibbick, and their imitators, but Kish’s work was similarly prominent in books and magazines of the day.

Kish’s art is instantly recognizable for its portrayal of active, highly expressive dinosaurs in breathtakingly realized landscapes. The worlds she created – particularly the skies – have an almost poetic beauty, while the plants and animals that inhabit them drip with dew and pulsate with life. Kish’s work is often overlooked today because her dinosaurs are shrink-wrapped in the extreme, sometimes appearing emaciated or even ghoulish. The skeletal look is very much out of vogue (modern paleontologists prefer their dinosaurs appropriately bulked out with muscle, fat, and feathers), but as Christian Kammerer pointed out on twitter, it’s important to consider Kish’s art in context. Her carefully-researched work was a powerful counterpoint to the rotund, shapeless dinosaurs that had dominated paleoart in preceding decades, and a critical step on the road to the reconstructions we know today.

Kish with pencil sketch, color comprehensive, and models.

The artist with her models, pencil sketch, and color comprehensive. Courtesy of the Smithsonian Institution Archives.

kish pretends to paint

Kish pretends to size up her canvas during a video shoot. Courtesy of the Smithsonian Institution Archives.

Once she received her work visa in May 1988, Kish moved to the Washington, DC area to begin Life in the Ancient Seas. She began by constructing small models of the most prominent animals that would appear in the mural. Working primarily with Sculptey, she built the animals’ skeletons first, using fossil photos as reference. Once these were approved, Kish sculpted the animals’ musculature and outer surfaces. She then used her models to paint a 16-foot small scale (1.5 inch to 1 foot) pencil sketch of the mural. This enabled her to work out the poses and behaviors of the animals, as well as the overall composition of the artwork. The next step was to produce the “color comprehensive”: a miniature painting with all the detail of the final piece. Since it would be impossible to photograph the entire mural within the narrow confines of Hall 5, this is the version that was reproduced for books, magazines, and postcards.

After fourteen months of preliminary work, Kish applied the first brushstrokes to the wall in the Spring of 1989. The museum’s graphics shop had prepared the surface well in advance, laying overlapping sheets of canvas onto drywall and carefully buffing out wrinkles and tears. Kish painted 130 feet of ocean backdrop for the main mural first, which took nearly two months. Next, Kish completed the smaller Cretaceous mural on the south side of the gallery, then moved on to the daunting task of filling in the large mural. She populated the scene chronologically, starting with the Paleozoic on the far left and moving forward through time. The exhibits department coordinated closely with Kish, so that the rest of the exhibit could be installed in her wake as each section of the mural was finished. The project took a total of two years to complete.

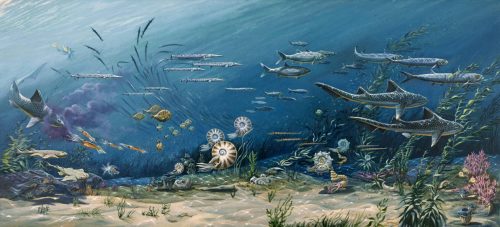

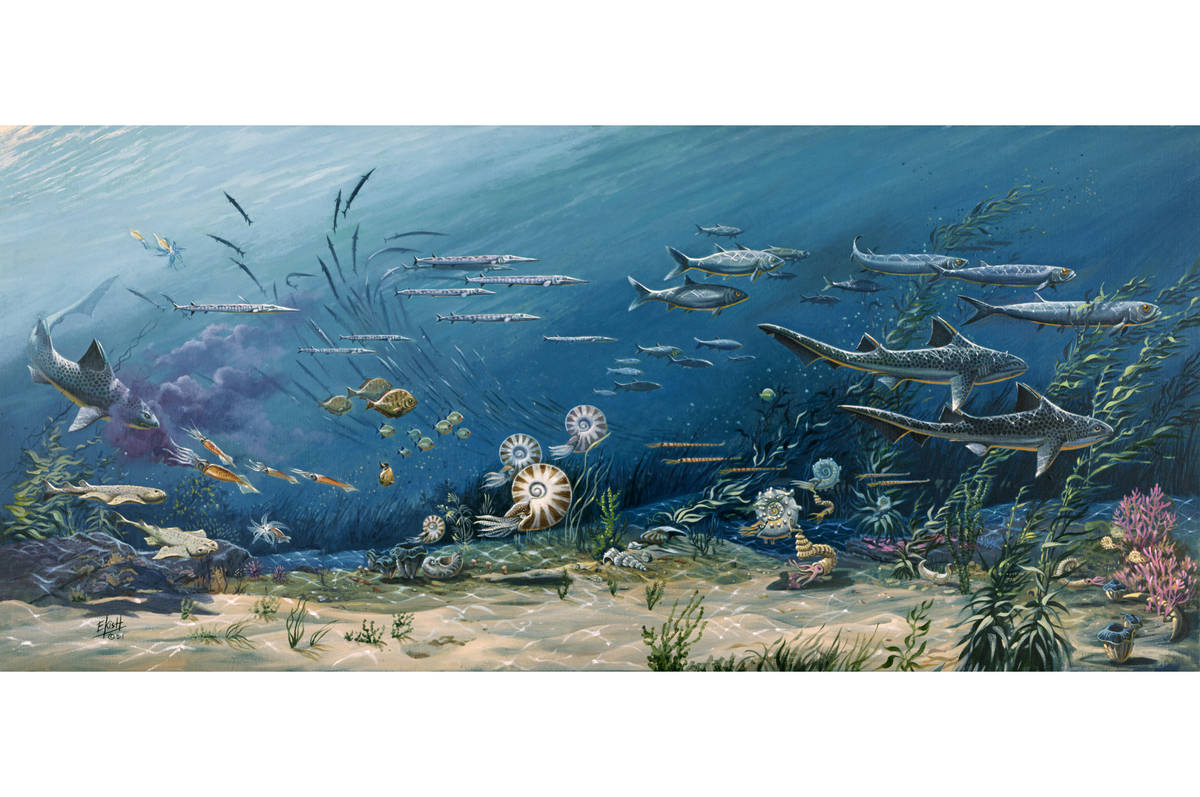

Art by Eleanor Kish. Copyright Smithsonian Institution.

The “small” 20-foot Mesozoic mural, which appeared on the south wall of Hall 5. Art by Eleanor Kish. Courtesy of the Smithsonian Institution.

Life in the Ancient Seas is an absolute masterpiece. Within the exhibit, this meticulously crafted image defines the space’s layout and color palate. It visually separates concepts and themes, and even directs visitor traffic with it’s strong leftward momentum. But Life in the Ancient Seas is the rare piece that was designed for a particular space, yet still holds up as a beautiful work of art on its own terms. The three biggest animals – Dunkleosteus, Tylosaurus, and Basilosaurus – anchor the action and provide a focal point for the viewer. From there, dynamic schools of fish draw the eye back and forth across the canvas. The longer one looks at this vibrant and colorful seascape, the more details emerge.

Of course, the primary function of the mural is to bring the static fossils on display to life, and Kish does not disappoint. The canvas is filled with hundreds of animals in perpetual motion. Streams of bubbles erupting from the creatures’ mouths imbue them with breath and energy. Although plenty of animals are being eaten, Life in the Ancient Seas is not a savage struggle of life and death. In one area, an inquisitive shark gets a face full of ink from a cephalopod that has no time for its antics. In another, a school of fish is sent careening in different directions by the powerfully swishing tail of the Tylosaurus. Instead of focusing on the macabre, Kish brilliantly incorporates whimsical humor into her work without plunging into the realm of cartoonishness. It is a feat that other paleoartists might do well to emulate. Meanwhile, Kish cleverly grounds some of the stranger extinct animals by juxtaposing them with their more familiar brethren. For example, the association of Basilosaurus, which resembles a fanciful sea dragon, with comparably mundane dugongs and dolphins makes this serpentine ancestral whale seem more plausible.

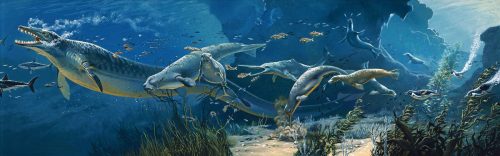

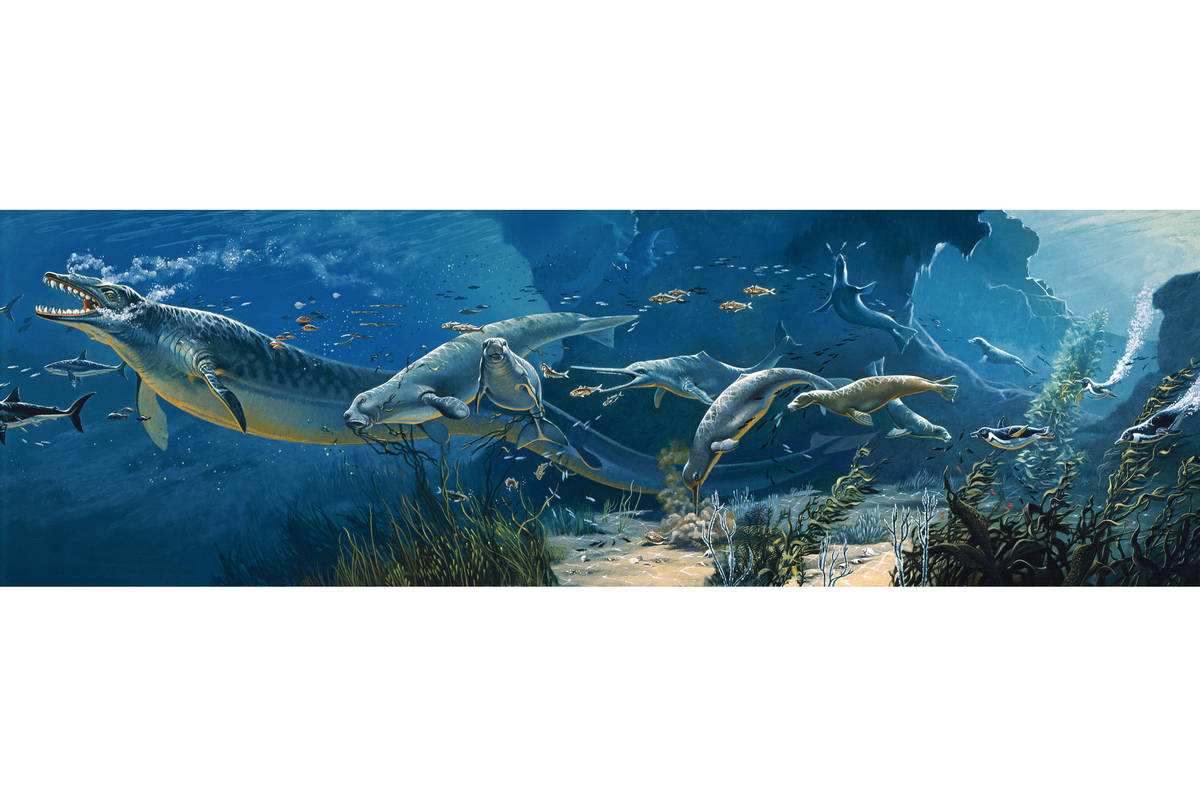

Art by Eleanor Kish. Copyright Smithsonian Institution.

The back lit cove where Miocene sea lions and penguins frolic is easily the most beautiful part of the mural. Art by Eleanor Kish. Courtesy of the Smithsonian Institution.

Life in the Ancient Seas was the largest project Kish ever took on. As she stated in multiple interviews, the Smithsonian commission made her career. The money she earned allowed her to buy a rural home in Ontario and convert it into a studio, which allowed her to produce more work more quickly. “I always wanted a studio,” she told the Ottawa Star,  “but I never had the money. The Smithsonian gave me that chunk of cash.”

Ely Kish passed away on October 12, 2014 at the age of 90. Those who knew her are quick to mention her kindness and generosity, particularly toward young artists. Past colleagues also fondly recall her impressive bouts of swearing, which would occasionally punctuate her normally soft-spoken demeanor. For the rest of us, we have Kish’s amazing artwork to remember her by. Kish created worlds we could otherwise never see, and she did it on a breathtaking scale. Although hers was a visual medium, she made the past into something we could feel and even experience. She and her talents will be missed.

Many thanks to the Smithsonian Institution Archives staff for providing access to the materials used in writing this article.

References

Deck, L. 1992. The Art in Creating Life in the Ancient Seas. Journal of Natural Science Illustration 1: 4: 1-12.

Marsh, D.E. 2014. From Extinct Monsters to Deep Time: An ethnography of fossil exhibits production at the Smithsonian’s National Museum of Natural History. http://circle.ubc.ca/handle/2429/50177

3 Comments

Filed under exhibits, Extinct Monsters, fish, museums, NMNH, paleoart, reptiles

Revisting the Ancient Seas

Between 1981 and 1990, the National Museum of Natural History carried out its second major overhaul of the east wing paleontology exhibits. Entitled “Fossils: The History of Life”, the new exhibit complex represented a significant departure from earlier iterations of this space. While the previous renovation arranged specimens according to taxonomy and curatorial specialties, “The History of Life” followed the evolutionary progression of fossil plants and animals through time. The new exhibits also differed from prior efforts in that they were not put together exclusively by curators. Instead, the design process was led by educators and exhibits specialists, who sought curatorial input at all stages. The result was a (comparably) more relatable and approachable paleontology exhibit, created with the museum’s core audience of laypeople in mind.

By 1987, four sections were completed: The Earliest Traces of Life, Conquest of the Land, Reptiles: Masters of the Land, and Mammals in the Limelight. Occupying halls 2, 3, and 4, these exhibits (along with the older Hall of Ice Age Mammals and the Rise of Man in Hall 6) told the complete story of the terrestrial fossil record. However, Hall 5 (the narrow space running parallel to the central dinosaur exhibit on its north side) was still vacant.

1987 map

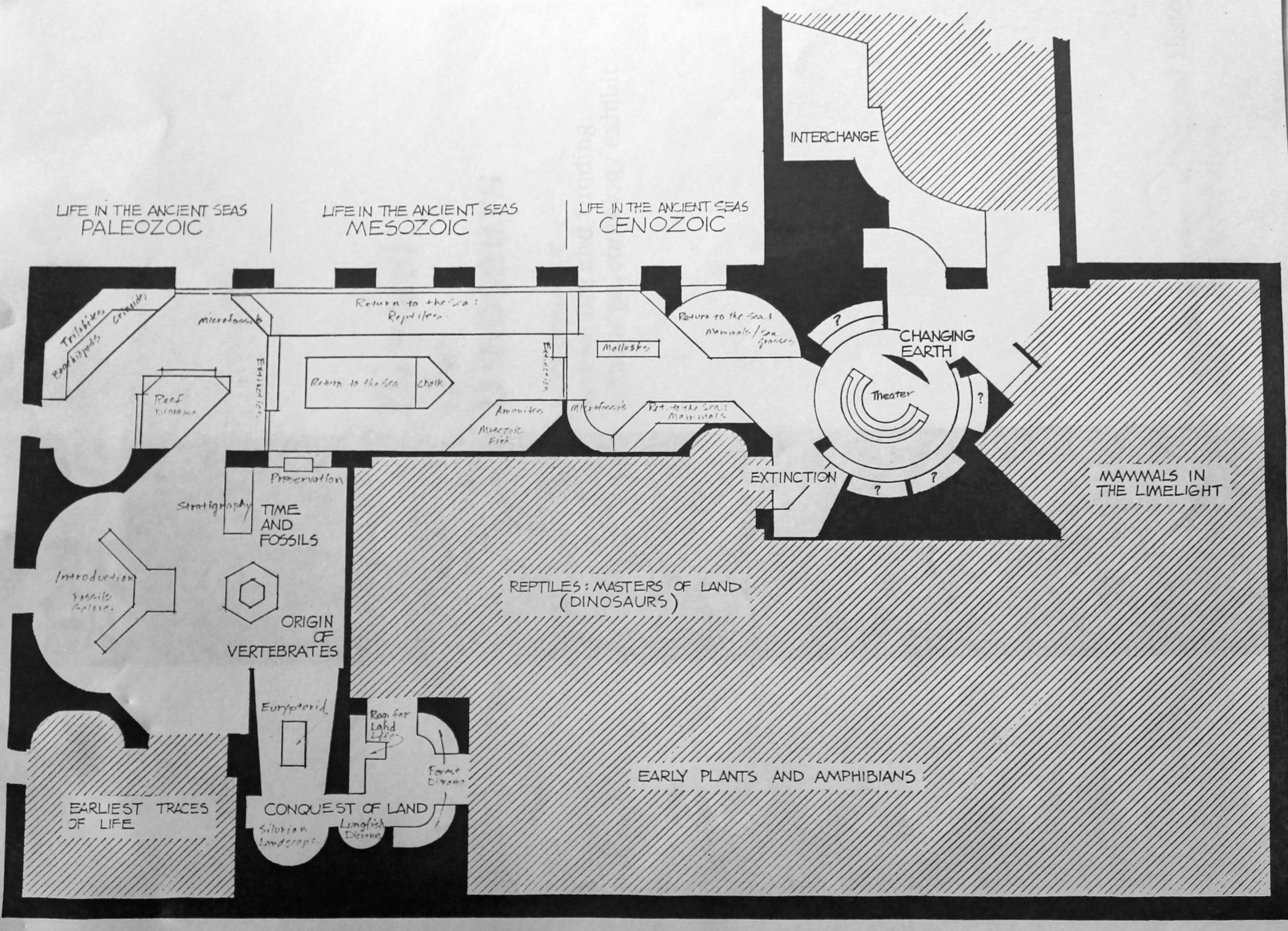

1987 map of planned additions to the “History of Life” exhibit complex, including the never-realized Changing Earth. Courtesy of the Smithsonian Institution Archives.

Going back to the 1977 theme statement that kicked off the History of Life renovations, the intent was always for Hall 5 to feature two exhibits: one on prehistoric sea life and another on the geological context for the fossil record. These ideas were fleshed out in a 1987 briefing packet that was distributed to potential donors. As the document explained, “it is in the undersea realm that the history of life is most abundantly documented,” and coverage of fossil marine life is therefore “critical” to visitors’ understanding of evolution through deep time. From the beginning, the “Life in the Ancient Seas” exhibit promised to feature a life-sized diorama of a Permian reef community, mounted skeletons suspended in life-like swimming poses, and an immersive underwater ambiance. Meanwhile, the proposed “Changing Earth” exhibit would “illuminate the entire story [told in the fossil halls] by looking at the ways geological processes have affected the course of evolution over millions of years.” A key feature was a “video disc time machine”, which was essentially a computer terminal where artwork reconstructing different time periods could be viewed.

Changing Earth was ultimately never built. Instead, the allocated space became a windowed fossil preparation lab, which would prove to be one of the most popular exhibits in the History of Life complex. Nevertheless, many of the ideas planned for Changing Earth would be revisited in the Geology, Gems, and Minerals hall, which opened in 1997. Life in the Ancient Seas did get funding, however, and with a budget of approximately $4 million, production of the exhibit was underway by early 1988.

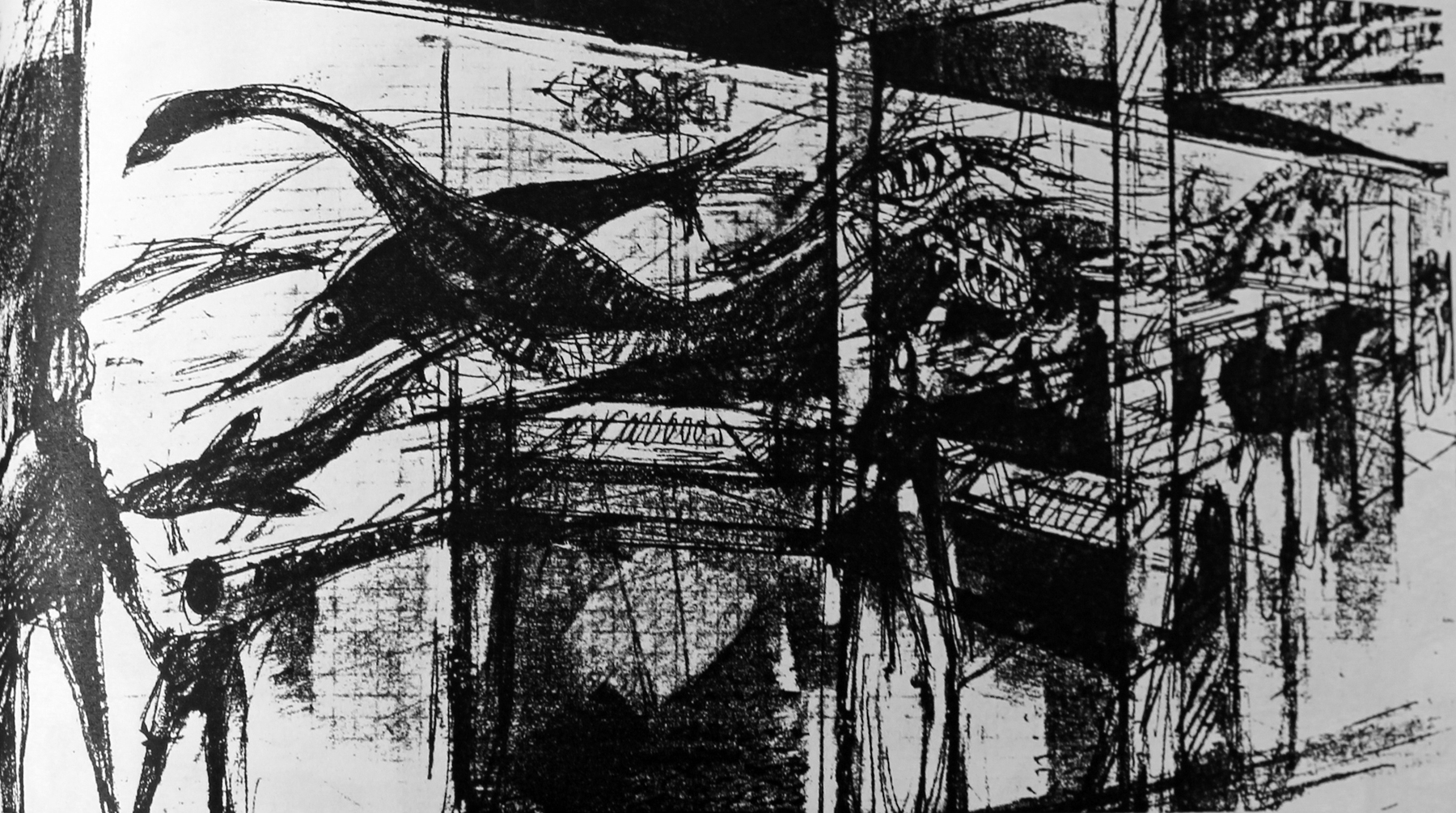

concept 1

Life in the Ancient Seas concept art. Artist unknown. Courtesy of the Smithsonian Institution Archives.

concept 2

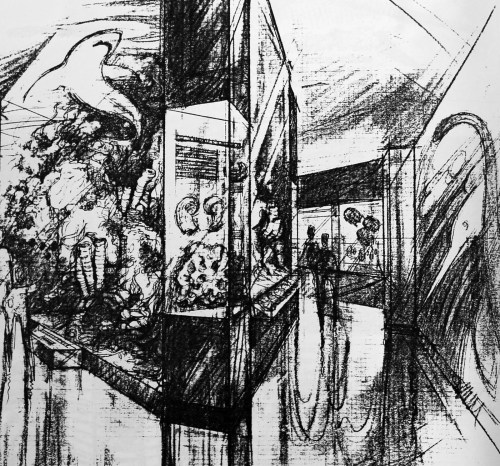

Life in the Ancient Seas concept art. Artist unknown. Courtesy of the Smithsonian Institution Archives.

As with any large exhibit, Life in the Ancient Seas was made possible through the combined efforts of dozens of talented scientists, artists, and technicians. Like the rest of the History of Life complex, the Department of Exhibits generally initiated and produced the content, which the Department of Paleobiology then revised or approved. Linda Deck was the content specialist, steering the ship throughout the planning and production process. She selected specimens, chose the major storylines, and acted as a bridge between the curators and exhibits staff. Li Bailey and Steve Makovenyi were the designers, overseeing the exhibit’s aesthetics and making sure it functioned as a cohesive whole. Sue Voss was the lead writer of label copy.

The hall’s design revolved around two main ideas, one aesthetic and one pedagogical. Visually, the exhibit needed to “simulate the perspective of a scuba diver” (Deck 1992). Makovenyi and Bailey gave the hall a blue-green color palate, with a low, black-tiled ceiling. Shimmering lights projected on the floor contributed to the illusion of traveling through the underwater world. Meanwhile, the layout of the hall adhered strictly to the chronology of geologic time. As visitors traversed the space, archways and glass barriers emphasized the conceptual divisions between the Paleozoic, Mesozoic, and Cenozoic eras.

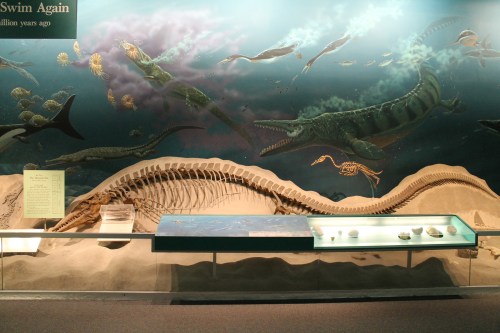

Tylosaurus photo by the author

Tylosaurus and Hesperornis are classic NMNH mounts. Photo by the author.

Dolichorhynchops from Montana, mounted by Arnie Lewis. Photo by Chip Clark.

Dolichorhynchops from Montana, mounted by Arnie Lewis. Photo by Chip Clark.

Life in the Ancient Seas featured over 1,000 specimens, most of which were invertebrates like trilobites, brachiopods, ammonites, and bivalves. Early lists of vertebrates earmarked for display were (as is typical) much longer than the final selection of twelve mounted skeletons – a walrus and a baleen whale were among the casualties. A few of the mounts, like the  ancestral whale Basilosaurus (USNM V 4675) and the sea lizard Tylosaurus (USNM V 8898), had already been on display for decades and needed only modest touch-ups for the new exhibit. Most of the vertebrate skeletons, however, were brand new. The Dolichorhynchops (USNM PAL 419645) was collected in Montana in 1977, and acquired in a trade with the Denver Museum of Nature and Science. Arnie Lewis prepared and assembled the mount in 1987. A Eurhinodelphis dolphin (USNM PAL 24477) from Maryland was mounted by contractor Constance Barut Rankin. Her work was so impressive that she earned a full-time position for her trouble. The sea cow Metaxytherium (USNM PAL 244477) was a very late addition, having been excavated in Florida during the 1988 field season.

miocene

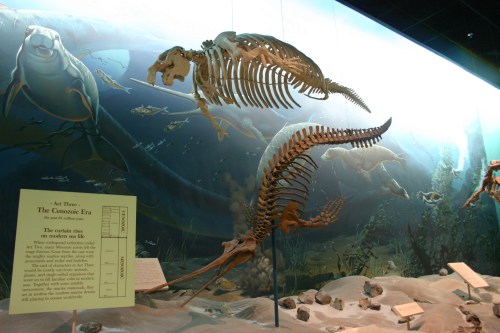

Miocene dolphin and sea cow. Photo by the author.

A variety of created objects joined the real specimens in telling the story of marine life through time. Model Hybodus sharks swam near the ceiling, and a realistic papier-mâché seabed extended the length of the exhibit beneath the mounted skeletons (little did visitors know this “seabed” was fragile enough to be punched through if it was ever stepped on). The exhibit team decided early on that Life in the Ancient Seas would include an 11-foot high, life-sized diorama of a Permian reef, based on the Glass Mountains deposits in Texas. Smithsonian paleontologist G. Arthur Cooper spent years collecting and publishing on the immaculate fossils found in this region, so a reconstruction of the Permian near-shore ecosystem was an obvious choice. What’s more, there was already a man lined up for the job. Terry Chase of Missouri-based Chase Studios (who would later go on to create Phoenix the whale) had already built a Permian reef for the Petroleum Museum in Midland, Texas, and most of the same molds and designs could be re-used. Still, the NMNH diorama was a massive undertaking, featuring 100,000 unique models – some hand-sculpted and some cast in translucent resin or wax.

Phillip Anderson experimented with a variety of materials to create the shimmering of sunlight shining through water that appeared in the diorama and at the exhibit’s two main entrances. As it turns out, nothing looks as good as actual light penetrating actual water. To accomplish the effect, Anderson rigged a piston cylinder to continuously produce waves in a shoebox-sized plexiglass container of water. A quartz light shone through the container and projected the pattern onto the floors and walls.

The Permian reef at the Midland Petroleum Museum. I stupidly never took a picture of the NMNH version.

The Permian reef at the Midland Petroleum Museum. I stupidly never took a picture of the NMNH version. Source

Life in the Ancient Seas opened in May 1990. In a Washington Post review, Hank Burchard raved about the ocean-themed design and especially Voss’s text, stating that “every museum text writer in town should study her style.” For the next 23 years, Life in the Ancient seas stood out as the gem among the east wing fossil exhibits. It was more colorful, easier to navigate, and generally more inviting than the other History of Life galleries. The theatrical label copy was arguably over the top (“Act One had been a bottom-dweller’s ballet, Act Two would be a swimmer’s spectacle”), but the exhibit as a whole plainly succeeded in presenting the story of evolution, adaptation, and extinction in an appealing and attractive way. Over the years, there were a few changes: the shimmering lights were shut off, a charming clay-mation video about the end-Cretaceous food chain collapse was removed, and the Dunkleosteus skull and Basilosaurus skeleton were relocated to the Ocean Hall (the latter was replaced with a cast of the related whale Zygorhiza). Indeed, the opening of the similarly-themed but far larger Ocean Hall in 2008 overshadowed Life in the Ancient Seas, and made many of its displays redundant. Although it was the best part of the History of Life complex, Life in the Ancient Seas was also the shortest lived. It was the last section to open, and in 2013, it was the first section to close.

Those familiar with the exhibit will have surely noticed that I have yet to discuss the beautiful 122-foot mural painted by Ely Kish. Running the entire length of the exhibit, this amazing artwork outclasses even the famous “Age of Reptiles” at the Yale Peabody Museum in terms of scale and number of subjects depicted. This monumental accomplishment will be the subject of the next post – stay tuned!

References

Burchard, H. 1990. Fossils Fuel Sea Journey. The Washington Posthttps://www.washingtonpost.com/archive/lifestyle/1990/05/25/fossils-fuel-sea-journey/d582f067-0745-44a0-90c8-248c1328962a/

Deck, L. 1992. The Art in Creating Life in the Ancient Seas. Journal of Natural Science Illustration 1: 4: 1-12.

Telfer, A. 2013. Goodbye to Life in the Ancient Seas Exhibit. Digging the Fossil Record: Paleobiology at the Smithsonianhttp://nmnh.typepad.com/smithsonian_fossils/2013/11/ancient-seas.html

3 Comments

Filed under exhibits, Extinct Monsters, fish, fossil mounts, mammals, museums, NMNH, reptiles

Envisioning the Ice Age at NMNH

neanderthal diorama

The neanderthal burial diorama. Image from Ice Age Mammals and the Age of Man, 1974.

On September 13, 1974, the Hall of Ice Age Mammals and the Rise of Man opened in Hall 6 at the National Museum of Natural History. Part of the “third wave” of NMNH exhibits, the Ice Age Hall was the result of interdisciplinary collaboration and a new drive to create more accessible, visitor-centric museum experiences. Specifically, the exhibit was a response to increasing pressure for museums to become destination attractions, valuing visitors’ desire to be entertained above anything else. The Ice Age Hall was meant to prove that good science and the intrinsic value of specimens could, in fact, be applied in a way that would appeal to contemporary audiences. The curators, designers, educators, and artists involved with the project saw it as an important departure from old methodologies, and expected it to be a template for future exhibits. This transition did not necessarily come easily, but for 40 years the results spoke for themselves.

The Hall of Quaternary Vertebrates

wegegeg

Large fossil mounts in the short-lived Pleistocene Hall. Images courtesy of the Smithsonian Institution Archives.

Despite the fanfare accompanying the Ice Age Hall’s opening, NMNH regulars would be forgiven for noticing that much of the exhibit looked familiar. Just four years earlier, this same space saw the opening of the brand-new Hall of Quaternary Vertebrates. This was the fifth and final phase of a thorough re-imagining of the museum’s fossil displays that began in 1959. Under the guidance of exhibit designer Ann Karras, the loose arrangement of specimens that had characterized the east wing for half a century was replaced with a directed narrative of the biological and geological history of the Earth.

This new direction was motivated by complementary revolutions in the museum field and in paleontology. Museum workers shrugged off their “cabinet of curiosity” roots and embraced education-oriented exhibits. Designers began to envision the routes visitors would travel through an exhibit space, and consider how objects on display could contribute to holistic stories. Meanwhile, paleontologists moved their field away from purely descriptive natural history, exploring instead how the fossil record could inform our understanding of evolution and ecology. At NMNH, this change in ideology inspired paleontologists to break away from the Geology Department and form their own Department of Paleobiology. The common thread between both transitions was a focus on connections – bringing new meaning and relevance to disparate parts by placing them in a common narrative.

Piano wire barely visible. Photo from Marsh 2014.

Two dire wolves posed over a horse. This display didn’t make it into the Ice Age Hall. Source

As Curator of Paleontology, C.L. Gazin oversaw most of the east wing modernization and designed the Tertiary Mammals exhibit in Hall 4 himself. Gazin retired in 1970, however, so responsibility for the unfinished Quaternary exhibit in Hall 6 went to new hire Clayton Ray, the Assistant Curator of Cenozoic Mammals. To fill out the Quaternary Hall, Ray arranged a number of trades with other museums. The Natural History Museum of Los Angeles County provided a saber toothed cat, two dire wolves, and the sheep-sized sloth Paramylodon (USNM 15164) from the La Brea tar pits, while the American Museum of Natural History was able to spare a bison “mummy” (USNM 26387) and a taxidermied musk ox. Ray also selected a complete set of mammoth bones from the AMNH collections, which were found during a gold mining operation near Fairbanks, Alaska. The bones were collected individually and belonged to an unknown number of individuals (they may well represent multiple species), but they were sufficient for preparator Leroy Glenn to construct a complete mounted skeleton.

Ray placed the new mammoth (USNM 23792) alongside the Michigan mastodon (USNM 8204), which had been on display since 1904. The mammoth was so tall that it had less than an inch of clearance with the ceiling. The other big draw in  the Quaternary Hall was a pair of never-before-exhibited giant sloths (USNM 20867 and USNM 20872) assembled from material Gazin collected in Panama. Referred to as “megatheres” at the time, these sloths are actually Eremotherium, and they are composites of at least eight individuals. The giant sloths were positioned back-to-back on a central platform, accentuated by an illuminated opening in the ceiling. All four giant mammal skeletons were supplemented with 1/5th scale life restorations created by staff artist Vernon Rickman. Exhibits specialist Lucius Lomax came up with the idea to display the fossil mounts behind piano wire, stretched from the floor to the ceiling and arranged in rows. The Eremotherium platform alone required 500 strands – or about 6000 feet – of wire.

A New Vision

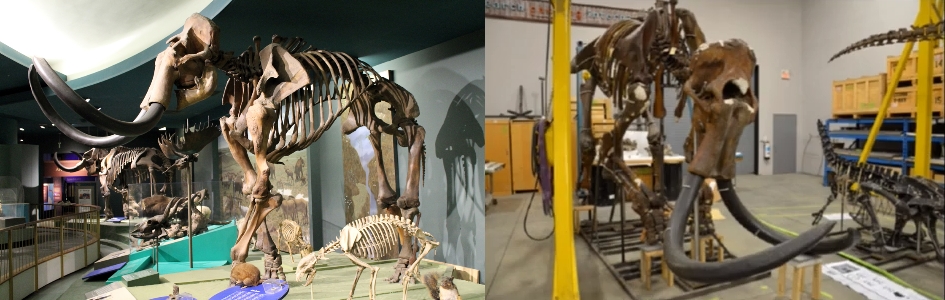

Chimera mammoth

The composite mammoth looms over other specimens along the right wall of the Ice Age Hall. Photo by the author.

Neither NMNH staff nor museum visitors were overjoyed with the Quaternary Hall as it stood in 1970. The piano wire Lomax had installed was a frequent cause for complaint: visitors would constantly pluck at the strings and occasionally break them. The wires also ruined photos. Automatic lenses would focus on the wire, so when visitors got their vacation pictures developed they would end up with a bunch of images of vertical strands with darkness beyond them. Nevertheless, the piano wire was really just a scapegoat for deep-seated disagreements over content between paleontology curators and exhibit designers. This apparently unsolvable clash of personalities contributed to the hall being closed indefinitely after just a couple years.

Paleontologist Porter Kier became Director of NMNH in 1973, and one of his first moves was to assemble a new team to reinvent the Quaternary Hall. Paleobotanist Leo Hickey, geologists Robert Emery and Thomas Simkin, and anthropologist William Fitzhugh conceived of an interdisciplinary exhibit that would explore the ice ages from multiple perspectives. Continental glaciation, the evolution and extinction of large mammals, and the rise of humans would all be presented in a single, holistic story. In what was at the time a novel development, the curators worked with Elaine Anderson and other “conceptualizers/writers” from the Office of Exhibits. The scientists conceived of the main ideas and ensured factual accuracy, but the Office of Exhibits ultimately wrote the label copy and oversaw the construction of the exhibition.

arch section

A statue of an archaeologist at work was a popular part of the exhibit. Image from Ice Age Mammals and the Emergence of Man, 1974.

To accommodate new content, the existing Quaternary Hall layout had to be completely gutted and replaced. Although Clayton Ray was conspicuously absent from the exhibit team, most of the modern and fossil animal specimens he had gathered were reused in different locations. The center of the exhibit became an enclosed theater with a video presentation about the advance and retreat of North American glaciers. The north end of the hall was overtaken by human evolution displays. Replica skulls and full-body illustrations showed the progression of hominids from australopithicines to modern humans, amusingly represented by a hippie. Vernon Rickman returned to create a life-sized diorama depicting a neanderthal burial ceremony. While directly based on excavations at Regourdou Cave in France, the scene was also inspired by the much-publicized Shanidar Cave site in Iraq, where neanderthals allegedly laid their dead to rest on a bed of freshly picked flowers. Finally, a cast of an engraved mammoth tusk, based on a 25,000 year old original from the Czech Republic, was added to the south entrance. This piece was meant to tie the exhibit’s narrative together, symbolizing “man’s emergence in the ice age as a dominant influence on other animals and his environment” (Ice Age Mammals and the Emergence of Man, 1974).

Vernon Rickman works on neanderthal models in 1973. Image Courtesy of the Smithsonian Institution archives.

Vernon Rickman works on neanderthal models in 1973. Image courtesy of the Smithsonian Institution Archives.

The Ice Age Hall was completed remarkably quickly. Kier pulled the team together in early 1974 and the new displays were designed, written, and fabricated by September. At least internally, a great deal of excitement accompanied the reopening of Hall 6. The Ice Age Hall was a serious departure from how exhibit work had traditionally been done at NMNH, but it also represented an attempt by the museum to stand its ground in the face of pressure to delve into “edutainment.” This was a trial run at developing a visitor-focused but science-driven exhibit, and everyone involved was anxious to see how the public would react.

Legacy of the Exhibit

Eremotherium today. Photo by the author.

Few visitors can help but stop in their tracks at the sight of the Eremotherium pair. Photo by the author.

In 1978, Robert Wolf and Barbara Tymitz published a “naturalistic/responsive” evaluation of the Ice Age Hall. Their groundbreaking and oft-cited methodology involved interviewing visitors and surreptitiously tracking them through the gallery space, seeking to understand how museumgoers were using and interpreting the “complex set of stimuli” presented by the exhibit. This document, and especially the taxonomy of visitor types it describes, may well have influenced the museum field more than the Ice Age Hall itself.

According to Wolf and Tymitz, the Ice Age Hall was largely successful. Visitors generally remembered the major topics under discussion, and frequently left more curious about natural history than when they entered. They also noticed the difference in layout from the rest of the museum, describing it as easier to navigate and understand. Not surprisingly, the mammoth, mastodon, Eremotherium, and neanderthal burial were the most popular and most photographed objects. In comparison, the carved mammoth tusk at the front of the hall recieved surprisingly little attention. This object was intended to be tie the entire exhibit together, but most people ignored it entirely. Likewise, the separation of North and South American animals via an architectural “land bridge” was completely lost on visitors. Wolf and Tymitz observed that visitors entering from the south paid more attention to the fossil mounts, while visitors entering from the north were drawn to the glacier theater. A lesson about the importance of sight lines and traffic flow lies therein.

La brea mounts. Photo by the author.

Paramylodon and Smilodon from the La Brea tar pits. Take a good look at the sloth, because it won’t be returning in 2019. Photo by the author.

After 40 years, not every element of the Hall of Ice Age Mammals and the Emergence of Man aged gracefully. Most obviously, the androcentric title and frequent use of the word “man” to describe humans throughout the label copy comes across as painfully dated. Displays that warned of another period of global cooling were removed (or at least stopped being lit) when anthropogenic warming emerged as a crucial public policy concern. The multimedia demonstration of continental glaciation was shut down by the early 2000s, and the human evolution corner was boarded up once the Hall of Human Origins opened in 2010. While the neanderthal diorama remained on display, recent research has shown that the affectionate burial it depicts is probably a misinterpretation. Ironically, the gradual removal of geology and anthropology components effectively turned the Ice Age Hall into the straightforward menagerie of Pleistocene animals that Ray initially envisioned.

The Ice Age Hall closed along with the rest of the NMNH fossil displays in April 2014. When the east wing reopens, many of the specimens will return restored and remounted, but in a different location. Since the new National Fossil Hall will be arranged in reverse chronological order, Hall 8 itself will house displays on the origins of life and an expanded FossiLab. Still, the Ice Age Hall experiment continues to leave its mark on the museum. The collaborative workflow and sharing of responsibilities between curators, educators, and exhibit specialists pioneered in the development of this exhibit remains standard practice today. The result has been ever more effective displays, providing solid scientific content to the widest possible audience.

References

Eschelman, R.E., Emry, R.J., Domning, D.P. and Bohaska, D.J. (2002). Biography and Bibliography of Clayton Edward Ray. Cenozoic Mammals of Land and Sea: Tributes to the Career of Clayon E. Ray. Emry, R.J., ed. Washington, DC: Smithsonian Contributions to Paleobiology.

Lay, M. (2013). Major Activities of the Division of Vertebrate Paleontology During the 1960s. http://paleobiology.si.edu/history/lay1960s.html

Marsh, D.E. (2014). From Extinct Monsters to Deep Time: An ethnography of fossil exhibits production at the Smithsonian’s National Museum of Natural History. http://circle.ubc.ca/handle/2429/50177

Sepkoski, D. (2012). Rereading the Fossil Record: The Growth of Paleobiology as an Evolutionary Discipline. Chicago, IL: The University of Chicago Press.

Smithsonian Institution. (1974). Ice Age Mammals and the Emergence of Man. Washington, DC: Elephant Press.

Wolf, R.L. and Tymitz, B.L. (1978). Whatever Happened to the Giant Wombat: An Investigation of the Impact of the Ice Age Mammals and the Emergence of Man Exhibit. Washington, DC: Smithsonian Institution.

Yochelson, E. (1985). The National Museum of Natural History: 75 Years in the Natural History Building. Washington, DC: Smithsonian Institution.

4 Comments

Filed under anthropology, education, exhibits, Extinct Monsters, fossil mounts, history of science, mammals, museums, NMNH, science communication

Extinct Monsters: The Marsh Dinosaurs, Part III

allosaurus

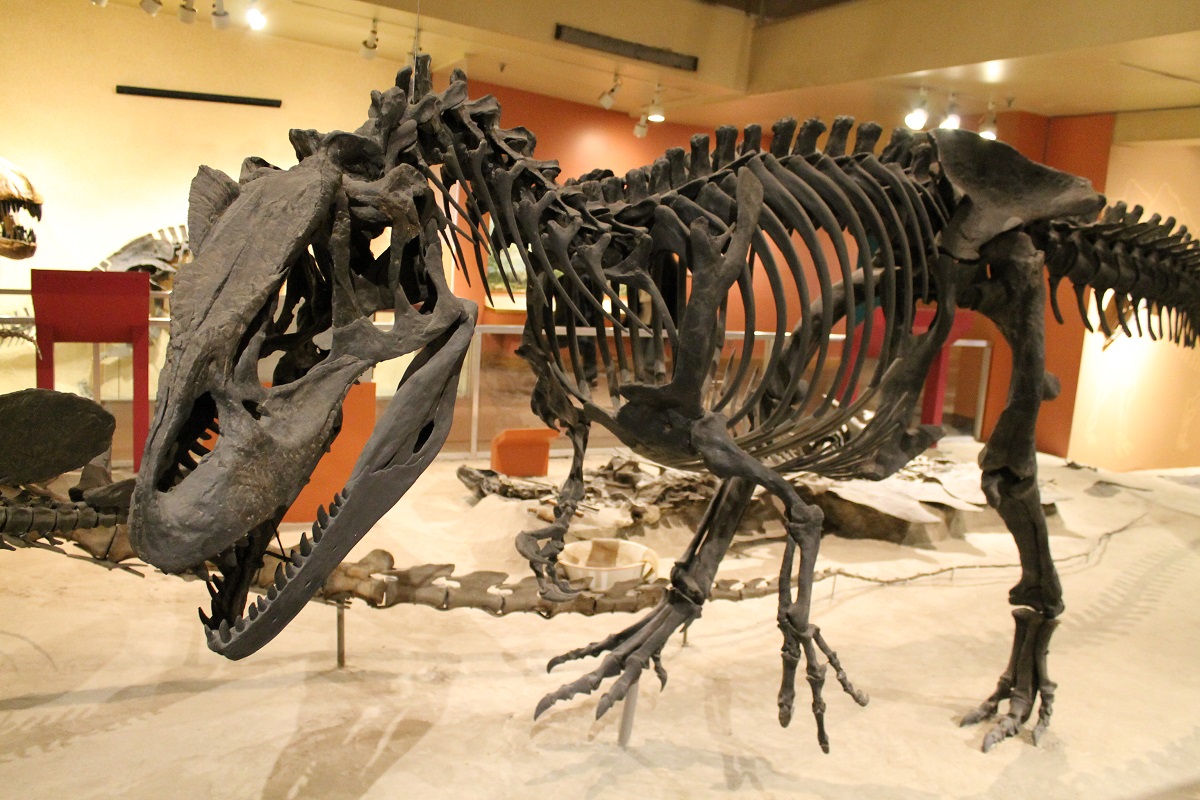

A close-up of Allosaurus. Photo by the author.

Click here to start the NMNH series from the beginning.

Some time ago, I wrote about the O.C. Marsh dinosaurs at the National Museum of Natural History. These are the mounted skeletons made from the enormous collection of fossils Marsh accumulated while working for the United States Geological Survey – if you’d like, you can catch up with Part 1 (on Edmontosaurus and Triceratops) and Part 2 (on Camptosaurus, Ceratosaurus, and Stegosaurus). Looking back, I noticed that I never actually finished, so here are the two Marsh dinosaurs with as-yet untold stories.

The Thescelosaurus

The name Thescelosaurus neglectus means “neglected wonderful lizard”, because Smithsonian paleontologist Charles Gilmore found the original specimen at the bottom of a crate, more than 10 years after it arrived at NMNH. Still buried its its field jacket, this skeleton had been long overlooked by both Marsh and the museum staff. Nevertheless, Gilmore found that it was remarkably complete and that it represented a taxon new to science.

Gilmore's illustration

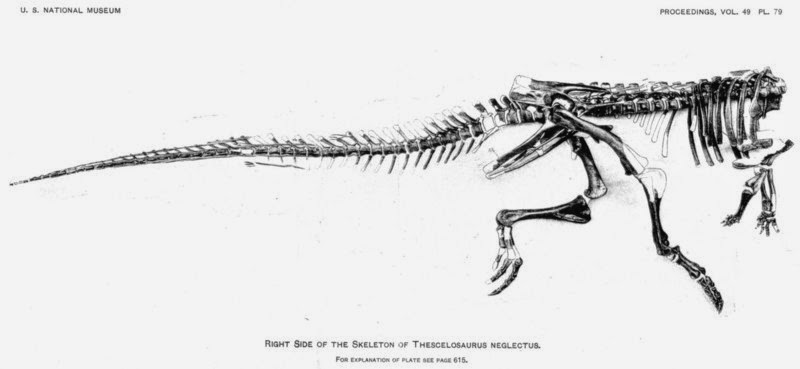

An illustration of the Thescelosaurus holotype prior to reconstruction. Source

Thescelosaurus at USNM.

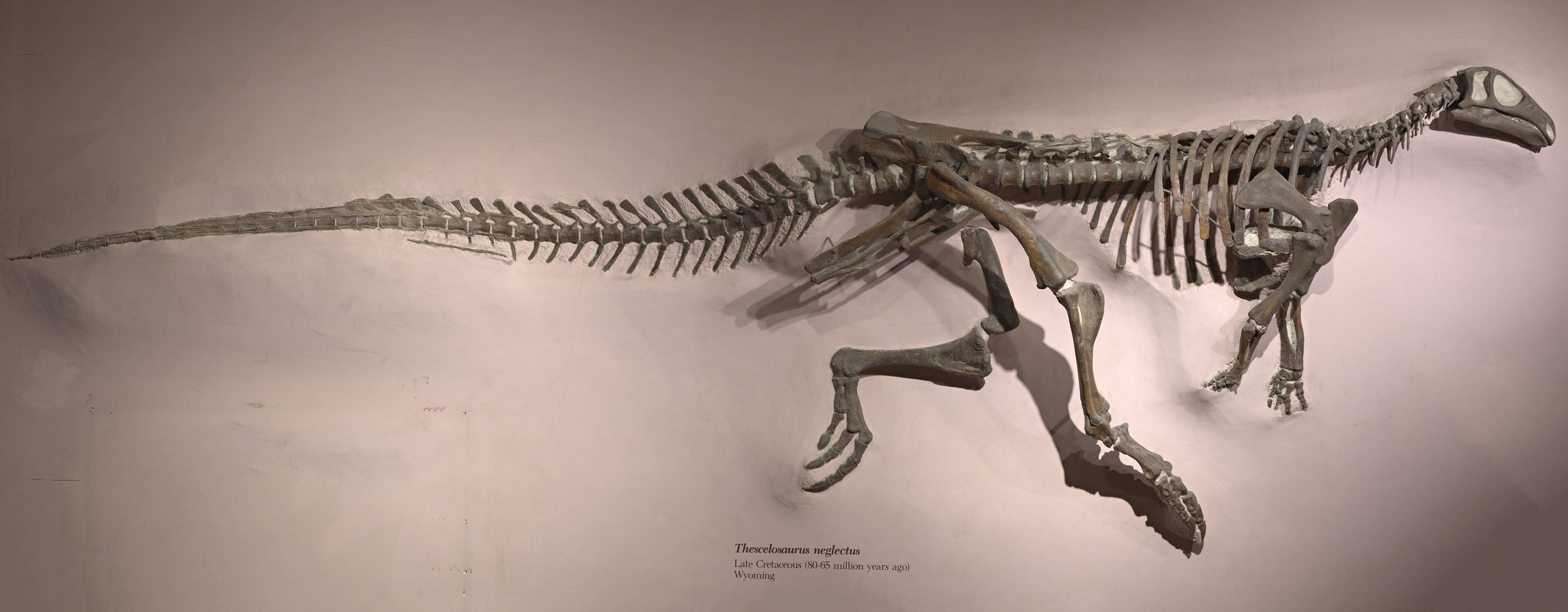

Thescelosaurus as displayed after 1981. Photo by Chip Clark.

The specimen that would become the Thescelosaurus holotype (USNM 7757) was excavated by John Bell Hatcher and William Utterback in July of 1891, while they were collecting for Marsh in Niobrara County, Wyoming. 20 years later, Gilmore discovered that the skeleton was articulated and intact, save for the head, neck, and parts of the shoulder. He even found small patches of preserved skin on the tail and legs. According to Gilmore, the animal had been buried rapidly after death, since it showed no signs of dismemberment by scavengers.

After describing the fossils, Gilmore mounted the Thesclosaurus in relief on its left side. Other than the reconstructed skull (modeled after Hypsilophodon), the specimen was displayed almost exactly as it was found. This was important to Gilmore, because as he wrote in his published description, “I am…of the opinion that specimens so exhibited hold the attention of the average museum visitor far longer and arouse a keener interest in the genuineness of the specimen than does a skeleton that has been freed from the rock and mounted in an upright, lifelike posture.” Today at least, I suspect that the opposite is true –  visitors are generally more impressed by dynamic standing mounts than by reliefs that preserve death poses. Still, it’s fascinating to gain a small amount of insight into the motivations of a pioneering mount-maker.

Although it was first displayed in the Hall of Extinct Monsters, the Thescelosaurus was most prominently exhibited in the 1963 version of the NMNH fossil halls. Here, it joined the Edmontosaurus, Gorgosaurus, and partial Corythosaurus relief mounts along the south wall. In life, these animals were vastly removed from one another in time and space, but displayed together they almost appeared to be parts of a single quarry face. The Thescelosaurus moved to the north wall in 1981, unfortunately placed rather high and out of most visitors’ line of sight.

thescrci

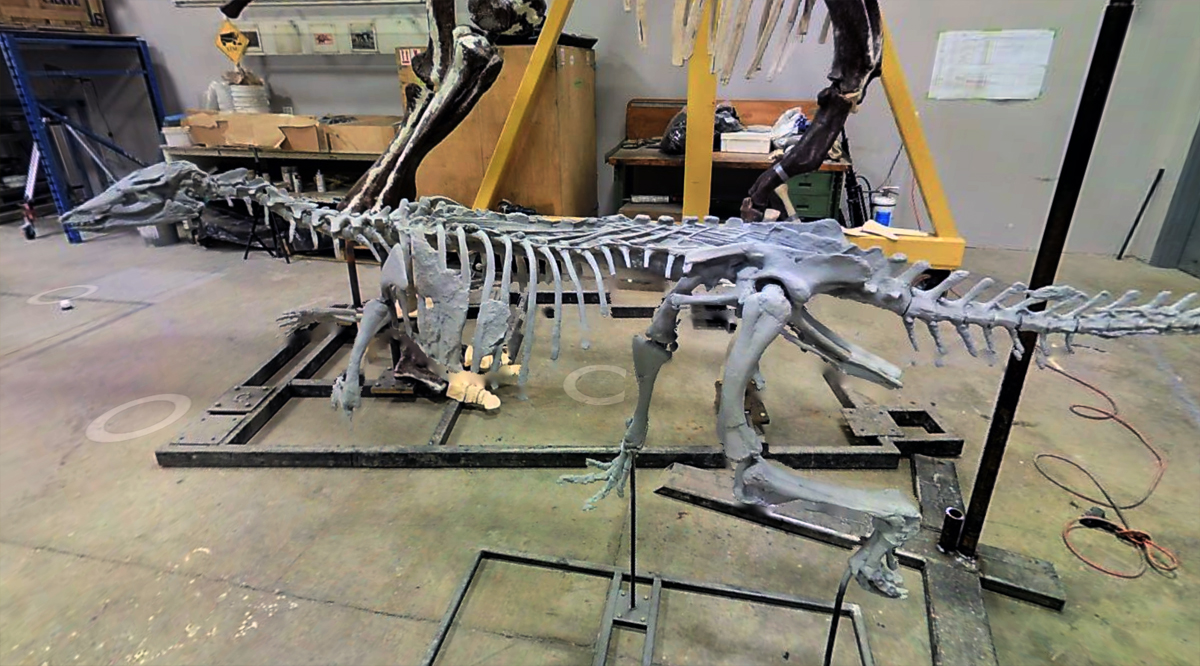

Thescelosaurus cast in the RCI workshop. Source

thescrci2

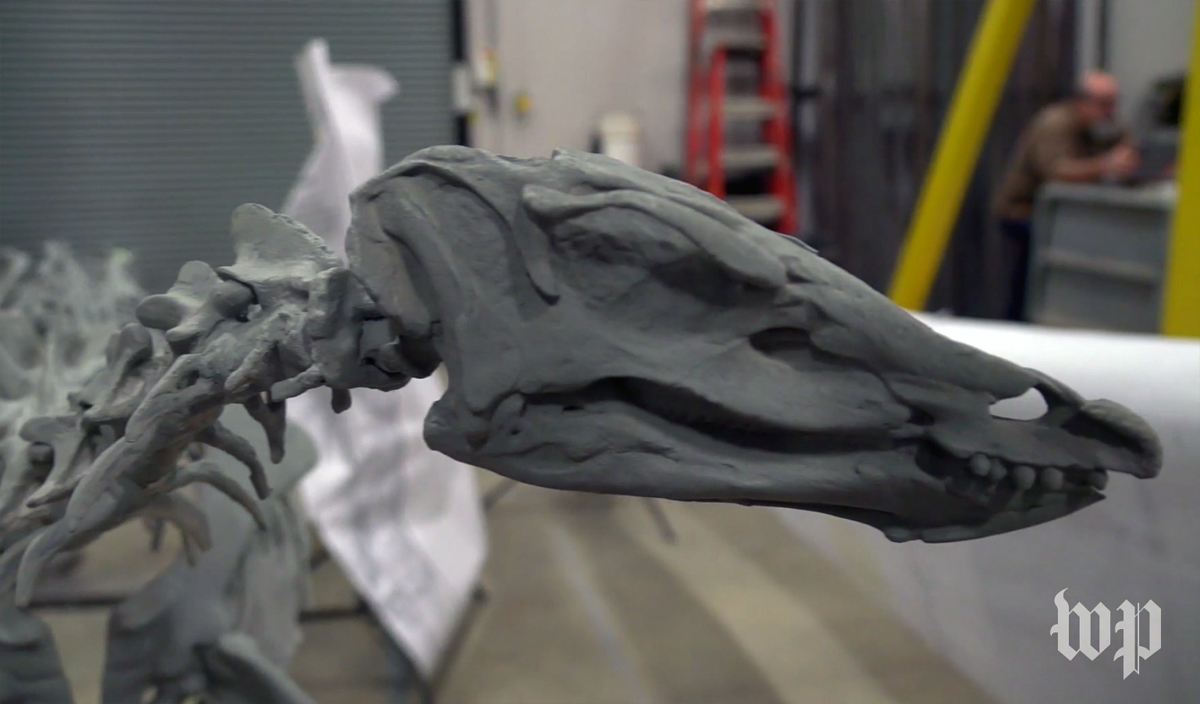

Close-up of the new Thescelosaurus skull. Source

When the new National Fossil Hall opens in 2019, USNM 7757 will be replaced with a duplicate cast. The original bones will be moved to the collections, where they can be properly studied for the first time in a century. Already, technicians at Research Casting International have freed the skeleton’s left side, which had never been fully prepared. The exhibit replica assembled by RCI is beautiful, retaining the ossified tendons and cartilage impressions of the original. Mounted in a running pose, the new cast also features an updated head, based on Clint Boyd’s recent description of Thescelosaurus cranial anatomy.

The Allosaurus

Built in 1981, the Allosaurus fragilis (USNM 4734) was the last Marsh Collection dinosaur to be mounted, although bits and pieces have been on display at NMNH since 1920. There has been considerable interest in this individual recently, in part because Kenneth Carpenter and Gregory Paul proposed in 2010 that it become the neotype for Allosaurus – more on that in a moment. Others are interested in this specimen because of its unique pathologies. In addition to several broken and healed bones, the Allosaurus has a massive puncture wound on its left scapula, which nicely matches the diameter of a Stegosaurus tail spike.

Benjamin Mudge collected this specimen in 1877 near Cañon City, Colorado. Known as the Garden Park quarry, this site also produced the Stegosaurus, Camptosaurus, and Ceratosaurus on display at NMNH. Although the Smithsonian obtained the Allosaurus with the rest of the Marsh Collection around 1900, Gilmore did not look at it (or any of the theropod material) until at least 1911. All told, USNM 4734 consists of a partial skull and jaw, a complete set of presacral and sacral vertebrae, a few ribs, a pelvis, and virtually complete arms and legs. It would have had a tail as well, but Mudge’s crew accidentally threw the articulated tail over a cliff while excavating the skeleton. Norman Boss assembled a reconstructed skull, which was displayed through the 1970s. The articulated legs and feet were exhibited in a free-standing case until the late 1950s.

Reconstructed skull

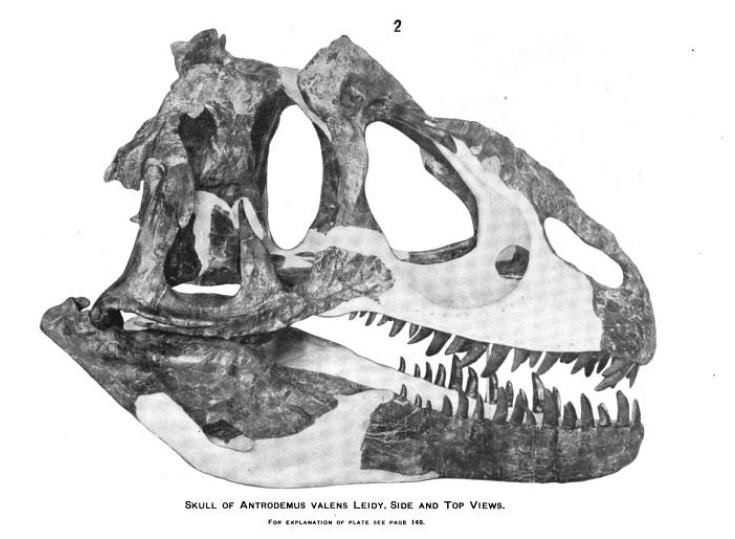

Allosaurus skull  as reconstructed by Norman Boss. Image from Gilmore 1920.

This specimen’s taxonomic history merits some discussion. The holotype Marsh selected when naming Allosaurus (YPM 1930) is notoriously poor, consisting of a single phalanx, two dorsal centra, and a tooth. Dozens of very complete skeletons attributed to Allosaurus are now known, and most specialists basically agree on what an Allosaurus is, but the lack of a usable type with which to define the taxon has been an ongoing problem.

The far more complete USNM 4734 was recovered from the same quarry as the Allosaurus holotype, during the same 1877 field season. Marsh himself actually used this specimen, rather than his designated type, to illustrate subsequent publications on Allosaurus. In 1920, Gilmore flirted with the idea of nominating USNM 4734 as a neotype for Allosaurus, but for reasons that I find difficult to follow, he decided to lump both specimens into the older name Antrodemus valens. Joseph Leidy coined Antrodemus in 1870 based on a single caudal vertebra with no geologic provenance, so this move did little to fix the underlying issue. Nevertheless, Antrodemus remained a popular synonym for Allosaurus in some circles for several decades.

allosaurusskullprep

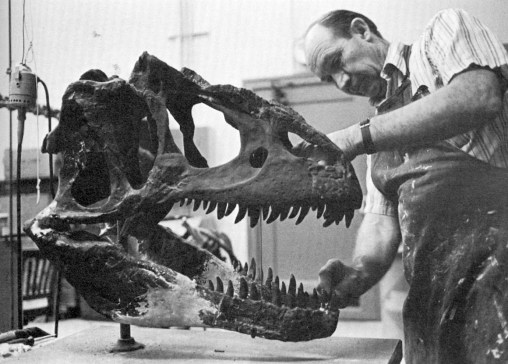

Arnold Lewis rebuilds the Allosaurus skull in 1979. Image from Thomson 1985.

When the NMNH fossil halls were renovated in 1981, the designers noticed that the exhibit badly needed a large theropod mount. Arnold Lewis was tapped to design and construct a complete mounted version of USNM 4734, with some assistance from Ken Carpenter. The tail was cast from a Brigham Young University specimen, but Lewis sculpted the belly ribs and sternum using an alligator skeleton as reference. The completed Allosaurus measures 17 feet from its grinning jaws to the tip of its tail, and a form-hugging armature makes it look particularly dynamic. This mount has been a favorite among visitors for more than 30 years, although the 2001 addition of a Stan the Tyrannosaurus cast has somewhat overshadowed the smaller theropod.

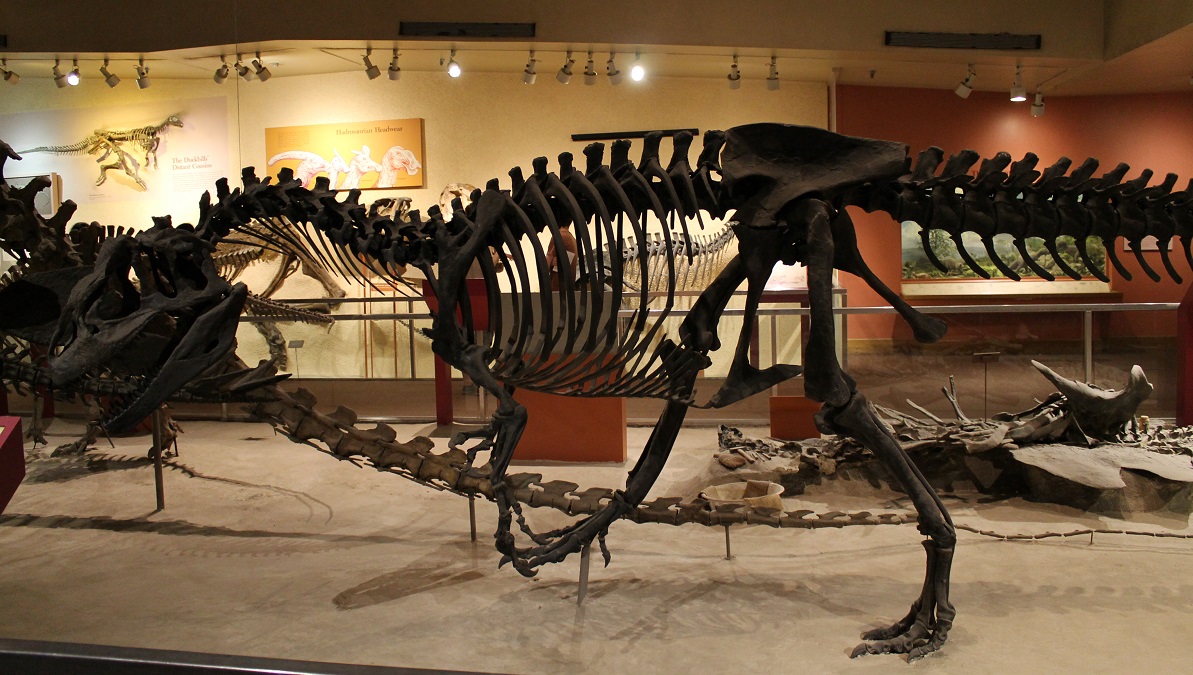

Allosaurus

The complete Allosaurus skeleton was finally exhibited in 1981. Photo by the author.

Technicians from Research Casting International took down the Allosaurus in the summer of 2014 as part of the current round of renovations. You can watch a video of the de-installation here. The skeleton will be remounted in a few years (crouching beside a nest mound), but Smithsonian researchers want to get a good look at it before that happens. In particular, curator Matt Carrano has been wondering for some time whether a partial jaw Marsh named “Labrosaurus ferox” actually belongs to this specimen. The “Labrosaurus” jaw, which has an unusual pathology caused by a bite or twisting force, came from the same quarry as USNM 4734, and appears to be the same portion of jaw that the more complete skeleton is missing. Time will tell whether Carrano’s hunch is correct. Meanwhile, Carpenter and Paul’s petition to replace the Allosaurus type with this more complete specimen from the same locality is still pending. We should expect to hear more about that soon, as well.

References

Carpenter, K., Madsen, J.H., and Lewis, L. (1994). Mounting of Fossil Vertebrate Skeletons. Vertebrate Paleontological Techniques. 285-322.

Gilmore, C. M. (1915). Osteology of Thescelosaurus, an ornithopodus dinosaur from the Lance Formation of Wyoming. Proceedings of the U.S. National Museum 49:2127:591–616.

Gilmore, C.M. (1920). Osteology of the Carnivorous Dinosauria in the United States National Museum with Special Reference to the Genera Antrodemus (Allosaurus) and CeratosaurusUnited States National Museum Bulletin 110:1-154.

Lee, J.J. (2014). The Smithsonian Disassembles its Dinosaurs. National Geographic Online.  http://news.nationalgeographic.com/news/2014/07/140731-dinosaur-hall-smithsonian-renovation-culture-science/

Paul, G.S. and Carpenter, K. (2010). Allosaurus Marsh, 1877 (Dinosauria, Theropoda): proposed conservation of usage by designation of a neotype for its type species Allosaurus fragilis Marsh, 1877. Bulletin of Zoological Nomenclature 67:1:53-56.

Thomson, P. (1985). Auks, Rocks, and the Odd Dinosaur: Inside Stories from the Smithsonian’s Museum of Natural History. New York, NY: Thomas Y. Crowell.

3 Comments

Filed under dinosaurs, exhibits, Extinct Monsters, fossil mounts, museums, NMNH, ornithopods, theropods

Permo-Triassic Synapsids at NMNH

Click here to start the NMNH series from the beginning.

In the middle decades of the 20th century, museum theory and paleontological science were undergoing complementary revolutions. Museum workers shrugged off their “cabinet of curiosity” roots and embraced visitor-centric, education-oriented exhibits. Designers began to envision the routes visitors would travel through an exhibit space, and consider how objects on display could contribute to holistic stories. Meanwhile, paleontologists like Stephen J. Gould and David Raup moved their field away from purely descriptive natural history, exploring instead how the fossil record could inform our understanding of evolution and ecology. The common thread between both transitions was a focus on connections – bringing new meaning and relevance to disparate parts by placing them in a common narrative.

Between 1953 and 1963, the Smithsonian implemented an institution-wide modernization program, transforming virtually every exhibit in the museum complex. The National Museum of Natural History began renovations to its classic fossil halls in 1959, and the new exhibits were emblematic of contemporary trends in both museum design and paleontology. The plan, as devised by exhibit designer Ann Karras, was to do away with the loose arrangement of specimens and turn the east wing into a guided narrative of the biological and geological history of Earth. Responsibility for selecting specimens and writing label copy in each of the four halls fell to a different curator. In Hall 2, which housed dinosaurs and fossil reptiles, that curator was Nicholas Hotton.

Layout of the USNM east wing, circa 1963.

Layout of the NMNH east wing as of 1963.

Hotton joined NMNH in 1959 as an Associate Curator of Paleontology. Entirely onboard with Karras’s vision and the paleobiology movement as a whole, Hotton described the old exhibits as “crowded” and “unorganized.” He thought NMNH had plenty of dinosaurs, but “mammal-like reptiles”* were sorely needed if Hall 2 was to tell the complete story of amniote evolution. Following that, Hotton’s mission over the next several years was to assemble a respectable collection of synapsid specimens for NMNH, and to incorporate them into a well-illustrated exhibit on the origins of mammals. This post highlights just a few of the specimens featured in Hotton’s version of Hall 2.

*In Hotton’s day, early mammalian relatives were usually called “mammal-like reptiles”, hence their inclusion in the fossil reptile exhibit. Today, most specialists prefer a more precise definition of reptiles that excludes synapsid (mammal-line) animals. In this post, I will be using the modern classification wherever possible.

The Dimetrodon

Prior to 1960, the non-mammalian synapsid collections at NMNH were mostly limited to early Permian pelycosaurs. The most impressive of these was a Dimetrodon gigas collected in 1917 by independent fossil hunter Charles Sternberg. One of the best collectors of his day, Sternberg worked intermittently for E.D. Cope, O.C. Marsh, and various American museums. In the summer of 1917, however, Sternberg was on a personal collecting trip with his son Levi. Their target was the Craddock Ranch bone bed of Baylor County, Texas, which was first explored in 1909 by a University of Chicago team. Sternberg was already quite familiar with this part of western Texas, having made some of the first thorough surveys of the Permian “red beds” in the 1880s, but the site itself was new to him. Nevertheless, Sternberg was extraordinarily successful that summer, collecting hundreds of fossils from a wide range of animals. He offered this bounty to the Smithsonian, and they purchased it from him immediately.

The Craddock Ranch fossils were particularly appealing because of their unique preservation. Buried in soft clay at the bottom of a shallow pond, the fossils had been removed from the ground with relative ease, and were largely free of encrusting matrix. Although few of the bones were articulated, many were identifiable. All told, the Sternberg collection included at least 35 skulls and partial skeletons from amphibians like Cardiocephalus, Diplocaulus, and Seymouria, plus hundreds of individual Dimetrodon bones, and a single articulated Dimetrodon specimen.

Note short tail

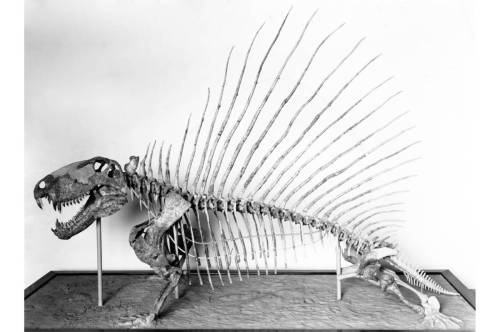

An early photograph of the Dimetrodon mount. Image from Gilmore 1919.

Dimetrodon first displaed on north wall

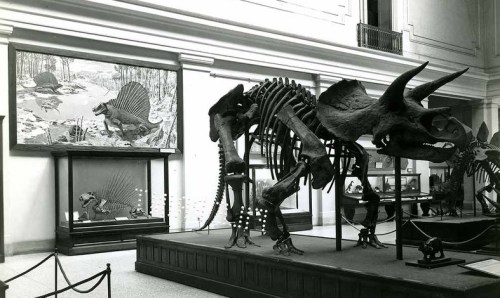

The Dimetrodon was first displayed on the north wall of the Hall of Extinct Monsters. Source

That Dimetrodon (USNM 8635) was the basis for a mount constructed by T.J. Horne. The articulated skeleton included a complete series of presacral vertebrae, the shoulder girdles, most of the forelimbs, and the left femur and tibia. The skull and jaw bones were found disarticulated, but bound together in the same mass of matrix as the skeleton. Horne added the pelvic bones and sacrum from smaller Dimetrodon specimens, and sculpted the rest of the missing material in plaster to complete the mount. Notably, his reconstructed tail was extremely short and stubby. Although the American Museum and Field Museum already had Dimetrodon mounts on display, the NMNH version stood out because of its open jaws, which Charles Gilmore said “gives the animal an appearance of angrily defying one who has suddenly blocked his path.”

Gilmore added the Dimetrodon to the Hall of Extinct Monsters in 1918. Like the other standing mounts constructed under Gilmore’s supervision, the skeleton was placed on a base textured and painted to resemble the rocks in which it was found. At this point in time, the NMNH fossil halls lacked any overarching organizational scheme, and interpretive content was minimal. Nevertheless, Gilmore displayed the Dimetrodon mount with both a small model and a 15-foot oil painting by Garnet Jex, which provided general audiences a better understanding of the animal’s life appearance.

dimetrodon

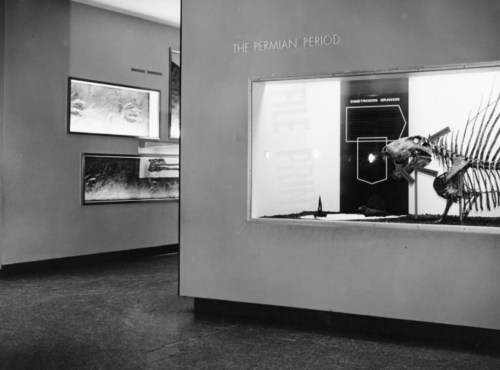

Dimetrodon in the 1963 fossil reptiles exhibit. Image courtesy of the Smithsonian Institution Archives.

Dimetrodon in 2014. Photo by the author.

Dimetrodon after the 1981 renovation. Photo by the author.

During the 1962 renovation, Hotton re-contextualized the classic Dimetrodon mount as a mammal ancestor. Unmissable orange arrows pointed to the specific anatomical traits that signify the animal’s kinship with mammals, including heterodont teeth and a single temporal fenestra. By design, visitors would pass Dimetrodon before visiting the true mammals in the adjacent hall.

The Dimetrodon skeleton itself was altered during the next renovation in 1981, when it was placed on a new, untextured base and given a longer replica tail. Contemporary staff also repainted the plaster sections to more closely resemble the original fossils – a surprising reversal of Gilmore and Horne’s original intention to make the reconstructed bones obvious to viewers.

The Thrinaxodon

Pelycosaurs like Dimetrodon were the first major synapsid radiation, but by the middle Permian they were almost entirely replaced by therapsids. A more derived group which includes modern mammals, therapsids spread across the globe and became increasingly diverse as the Permian progressed. From weasel-sized burrowers to multi-ton herbivores, non-mammalian therapsids were among the first animal groups to conquer a wide range of terrestrial niches. Hotton wanted to tell this story in the modernized fossil exhibit, but there were hardly any non-mammalian therapsids in the NMNH collections. To correct this problem, Hotton took to the field for several months in 1960, and again in 1961. He joined James Kitching in exploring the Beafort Group rocks of South Africa, which were known to produce plentiful Permian and Triassic vertebrate fossils. Hotton returned to the museum with over 200 new specimens, the best of which were used in the renovated exhibit.

Thrinraxodon with Cynognathus skull

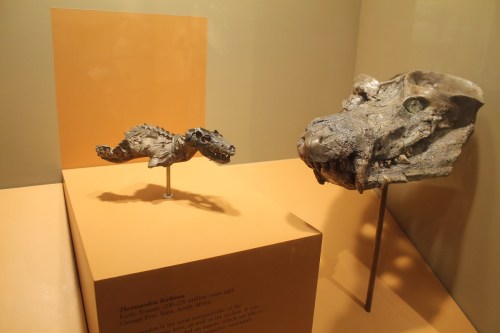

Thrinaxodon paired with Cynognathus skull. Photo by the author.

Hotton’s most prized find from South Africa was a gorgeously preserved and nearly complete Thrinaxodon liorhinus (USNM 22812). Hotton called this specimen “Baby Doll”, and while it was not prepared in time for Hall 2’s 1963 opening, it would later earn a spot of honor in the exhibit. Before that happened, though, Baby Doll was actually stolen by an over-enthusiastic volunteer. The FBI located and returned the fossil a year and a half later.

Since the 1970s, the Thrinaxodon has been displayed alongside the skull of Cynognathus crateronotus (USNM 22813), which Hotton collected on the same expedition. Both are members of the cynodont clade, which includes some of the closest relatives of modern mammals.

 The Daptocephalus

Less than a month after hall 2 reopened, Nicholas Hotton returned to South Africa. This time, he was accompanied by his spouse Ruth Hotton and their three young children. For seven months, the Hottons traveled among fossil sites on different ranches, camping most nights. They collected some 300 specimens for the Smithsonian, and Hotton’s biostratigraphic mapping of the Beaufort Group brought a measure of clarity to this region’s historically convoluted geology.

Ruth Hotton made one of the trip’s most impressive finds while prospecting in a dry riverbed with her daughter, Carol (who is now a paleobotanist at NMNH). Turning a corner, she stumbled upon a dicynodont skeleton, completely exposed and lying in the middle of the channel. One can only imagine the surprise and delight of finding an articulated fossil skeleton completely uncovered. If the Hottons had been there one season earlier or one season later, the river would have undoubtedly destroyed the fossils.

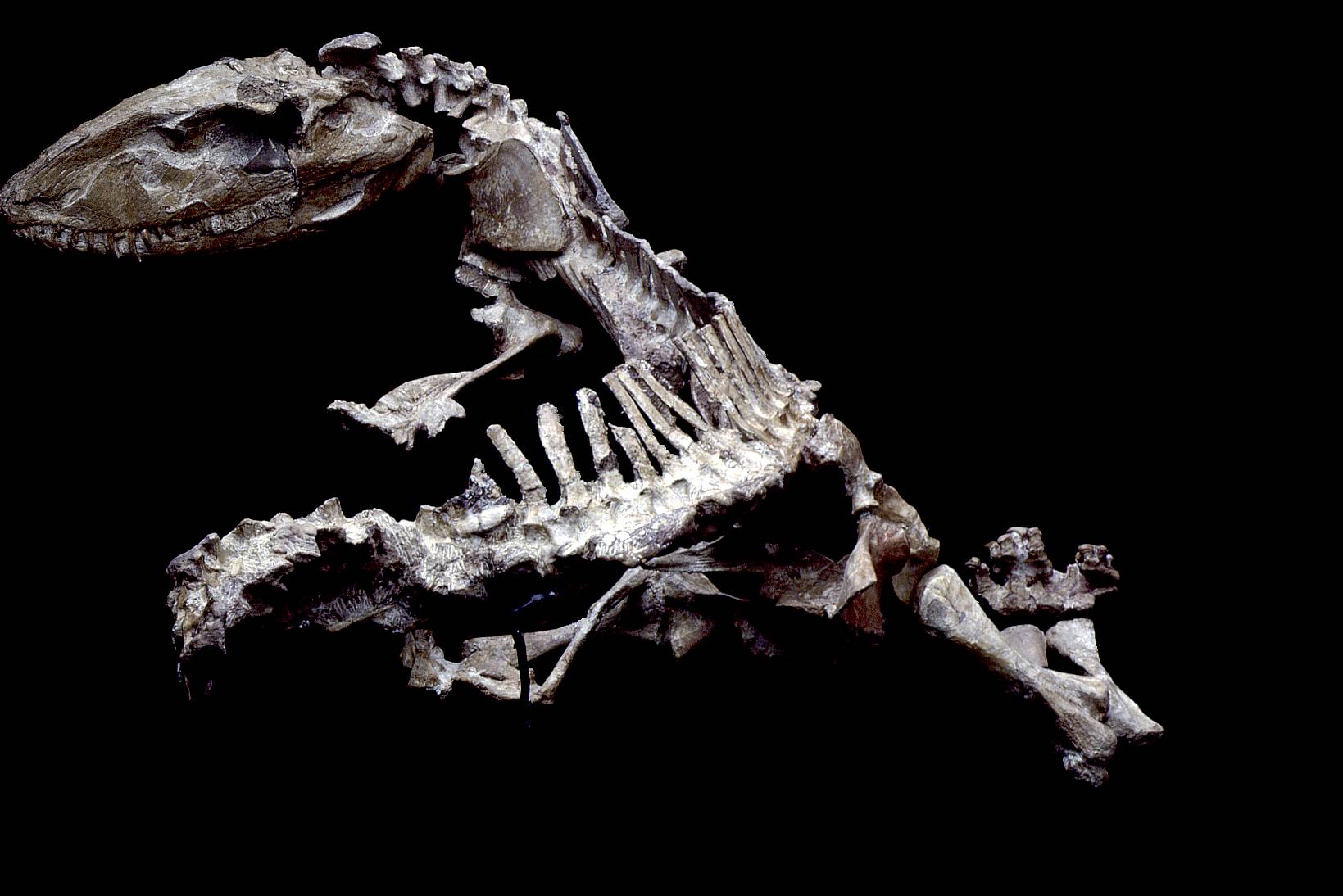

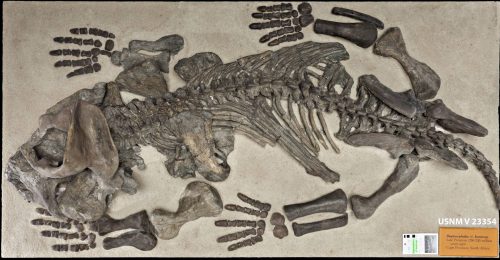

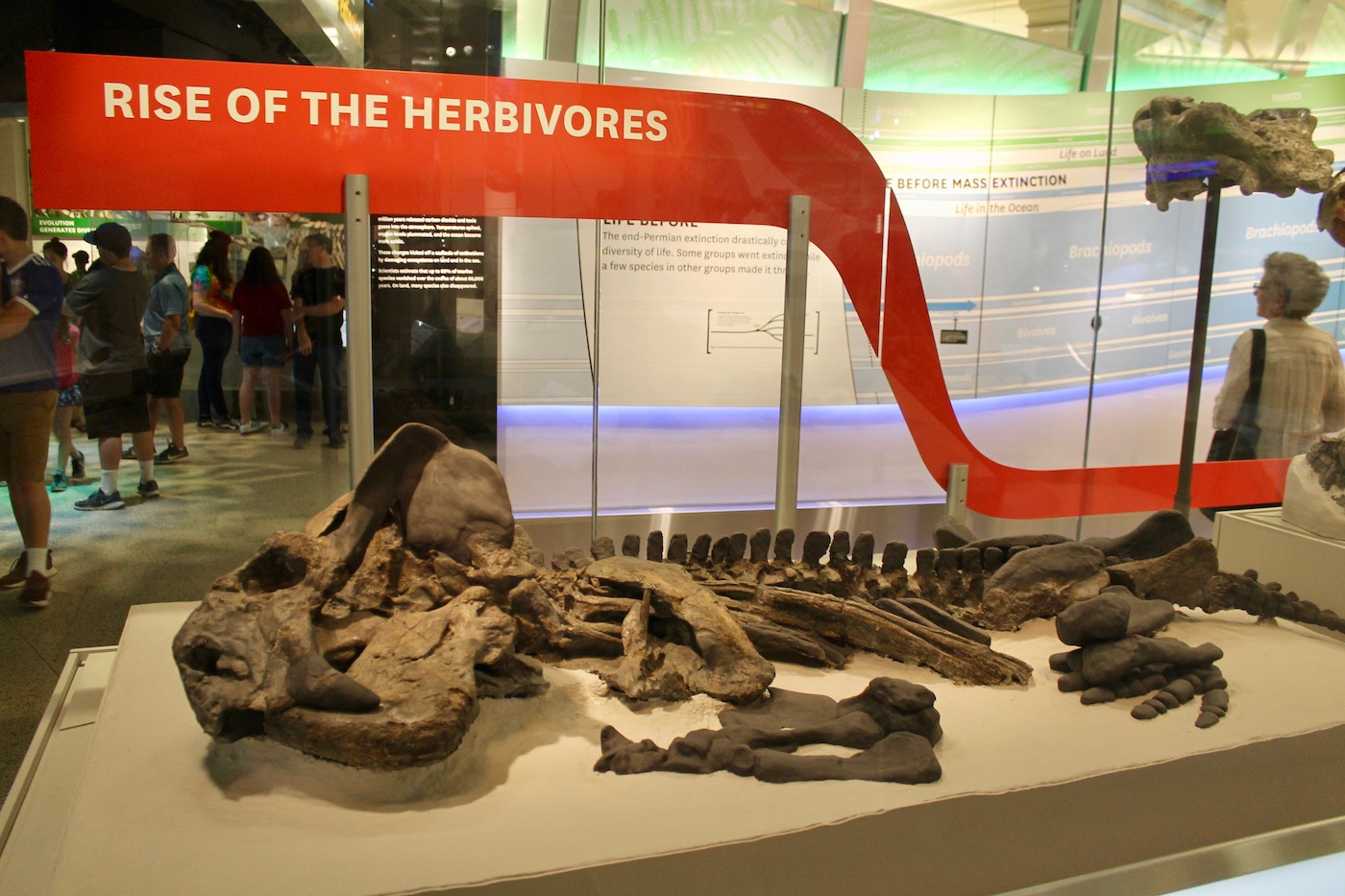

Daptocephalus

“Daptocephalus” as exhibited after 1981. Source

Photo by Christian Kammerer

Close up of the erroneously reconstructed skull. Photo by Christian Kammerer.

Back at the museum, Nicholas Hotton prepared the specimen (USNM 299746) and determined it to be Daplocephalus leoniceps, one of the plethora of dicynodonts known from the Beaufort Group. Based on this classification, he reconstructed the badly damaged skull to resemble more complete Daplocephalus specimens, and added casts of Daplocephalus limbs. As it turns out, however, USNM 299749 is not a Daplocephalus – it is a somewhat distantly related dicynodont currently called Odontocyclops (also subject to change). To varying degrees, fossil mounts are hypotheses made of bone and plaster. They are based on the best information available at the time, but sometimes they need to be corrected. The NMNH “Daplocephalus” has been mislabeled and erroneously reconstructed for many years, but the current renovation of the NMNH fossil halls now presents an opportunity to deconstruct the specimen and study it up close.

Thanks to Christian Kammerer for kindly sharing images and insight on “Daptocephalus”!

References

Gilmore, C.W. (1919). A Mounted Skeleton of Dimetrodon gigas in the United States National Museum, with Notes on the Skeletal Anatomy. Proceedings of the United States National Museum 56:2300:525-539.

Kammerer, C. (2015). Personal communication.

Lay, M. (2013). Major Activities of the Division of Vertebrate Paleontology During the 1960s. http://paleobiology.si.edu/history/lay1960s.html

Marsh, D.E. (2014). From Extinct Monsters to Deep Time: An ethnography of fossil exhibits production at the Smithsonian’s National Museum of Natural History. http://circle.ubc.ca/handle/2429/50177

Sepkoski, D. (2012). Rereading the Fossil record: The Growth of Paleobiology as an Evolutionary Discipline. Chicago, IL: The University of Chicago Press.

4 Comments

Filed under exhibits, Extinct Monsters, field work, fossil mounts, history of science, mammals, museums, NMNH
