Dinosaurs of the Field Museum — Part 1

About a year ago, I wrote this post about the dinosaurs of the London Natural History Museum, admittedly in a bit of a hurry. The post has proven very popular, which leads me to conclude there’s interest in more “quick bite” articles about the specimens on display at various museums. I’ll see about putting together more of these in the future.

For now, I’ll start close to home, with the dinosaurs on display at Chicago’s Field Museum of Natural History (FMNH). This entry is about the most notable specimens that were acquired outside the living memory of current staff. I’ll follow up with an article about more recent acquisitions sometime soon. It’s important to note that while I’m focusing on dinosaurs here, the real meat of the Field Museum’s vertebrate paleontology collection is in its Cenozoic holdings. Those too will need to be a topic for another time.

Brachiosaurus altithorax (P 25107)

Menke poses with the *Brachiosaurus* humerus, unwittingly creating an image that every subsequent sauropod worker is obligated to recreate. Photo © Field Museum.

The first dinosaur discovered by Field Museum paleontologists was nothing less than the biggest land animal known at the time. On July 4, 1900, the museum’s first paleontologist Elmer Riggs and his assistant H.W. Menke came upon a set of enormous bones in western Colorado. Riggs—who was specifically hired two years earlier to find dinosaurs for the nascent museum—named the new dinosaur Brachiosaurus altithorax in 1903. The individual bones were set in display cabinets (left image, below) around the same time. Comprising about 25% of the skeleton, Riggs did not consider the find complete enough to assemble into a standing mount. Nevertheless, the museum commissioned a replica Brachiosaurus skeleton about 90 years later, basing the missing pieces on the related Giraffatitan.

New Brachiosaurus fossils have proven elusive. While several individual bones have been found, the holotype collected by Riggs and Menke remains the most complete example of this famous dinosaur.

“Apatosaurus” sp. (P 25112 and P 27021)

The Field Museum’s “*Apatosaurus*” is a composite of two sauropod specimens, collected 40 years apart. Photos © Field Museum.

Riggs and Menke found another sauropod in western Colorado in 1900, and returned the following year to excavate it. This time, they had the back two-thirds of an apatosaurine sauropod, complete save for the distal portions of the limbs and tail. As museum leaders were unwilling to fund a search for more sauropod material, Riggs mounted the partial skeleton in 1908 (left image, above).

The sauropod remained in this unfinished state until the 1950s, when preparator Orville Gilpin arranged to acquire another incomplete sauropod. Gilpin had excavated the specimen with Jim Quinn near Moab, Utah in 1941, and knew that it was a perfect complement to the skeleton on display. Long-time museum president Stanley Field (nephew of founder Marshall Field) had repeatedly resisted requests from the paleontology staff to complete the mount, but allegedly relented after overhearing a visitor ask which side of the half-dinosaur was the front. Gilpin built an armature for the neck and shoulders of the newly acquired specimen (right image, above), and finished the mount with casts of Apatosaurus forelimbs and a Camarasaurus skull from the Carnegie Museum of Natural History. The Field Museum finally had a complete sauropod on display, which was unveiled at the April 1958 Members’ Night.

“*Apatosaurus*” as it is currently displayed in Evolving Planet. Photo by the author.

In 1992, the composite sauropod was dismantled and relocated to the new Life Over Time exhibition on the other side of the building. The museum hired Prehistoric Animal Structures, Inc.—a now-shuttered company specializing in mounting fossil skeletons—to do the work. The updated sauropod debuted in 1994, now posed as though looking at visitors on a nearby elevated walkway. The sauropod remained in place when Life Over Time became Evolving Planet in 2006, though with the walkway gone it now appears to be admiring the Charles Knight murals on the wall.

A note on nomenclature: Riggs identified this skeleton as Apatosaurus, but the label was changed to Brontosaurus in the mid-20th century, when Apatosaurus fell out of common parlance. The name Apatosaurus returned to labels in 1994. However the most recent word on this specimen—from Tschopp et. al 2015—is that it’s not Apatosaurus nor Brontosaurus, but likely another, yet unnamed taxon.

Triceratops horridus (P 12003)

The skull of FMNH P 12003 as it is currently displayed in the SUE gallery. Photo by the author.

In 1904, Riggs moved on from the Jurassic-aged rocks of Colorado to the Cretaceous of Carter County, Montana. Today, this part of southeast Montana is lousy with paleontologists. There’s even an annual shindig for field crews held at the Carter County Museum in Ekalaka. However, Riggs’ expedition was among the first to visit the region from a large museum. The most significant find of the summer was a Triceratops skull and partial skeleton from just west of the Chalk Buttes.

The skull was prepared by 1905 and has been in every iteration of the Field Museum’s paleontology halls. The unusually thick brow horns were recently confirmed to be real bone, but it’s possible that they were originally from another, larger specimen (edit: There is real bone inside the horns, but they are padded with a lot of plaster reconstruction—see comments). The remainder of the skeleton remains in storage.

Gorgosaurus libratus (PR 2211)

Elmer the *Gorgosaurus* as it was last displayed, in 2017’s Specimens: Unlocking the Secrets of Life. Photo by the author.

Most collecting was paused during World War I, but shortly after the war, Marshall Field III funded new expeditions in all four of the Field Museum’s major research areas (Zoology, Botany, Geology, and Anthropology). Riggs led three of these expeditions, one to Alberta and two to Argentina and Bolivia. Riggs saw the 1922 Alberta trip as something of a practice run, since he hadn’t been in the field for some years, and some on his team had never done fieldwork at all.

Still, the crew was serious about bringing in fossils. Riggs decided to go to the Red Deer River region of Alberta, a place where his former colleague and classmate Barnum Brown had unearthed numerous near-complete dinosaurs for the American Museum of Natural History. Riggs also hired fossil hunter George F. Sternberg, who already knew the area well, to join him on the 14-week expedition.

After returning from Alberta, Riggs was busy getting ready for the upcoming expeditions to South America, and most of the field jackets remained unopened for years, or even decades. One jacket lingered until 1999, when the large team of preparators assembled to prep SUE the T. rex decided to crack it open.

Inside, they found the virtually complete hips, hindlimbs, and tail of a four-year-old Gorgosaurus, which they named Elmer. Riggs’ notes indicated that the skull ought to have been present, but the preparators only found a few teeth. Further investigation revealed that the partial skull had been in its own jacket with a different number, and that it had been loaned to the University of California at Berkeley in the 1970s. The Berkeley scientists had subsequently lost the fossil, but (fortunately) made a cast of it, which was later returned to the Field Museum.

Elmer was included in the touring exhibition Dinosaurs: Ancient Fossils, New Discoveries, and most recently in 2017’s Specimens: Unlocking the Secrets of Life. It is currently off exhibit.

Lambeosaurus lambei (PR 380)

*Lambeosaurus* under prep in 1955. Photo © Field Museum.

According to Riggs, the “prize find” of the 1922 Alberta expedition was a Lambeosaurus found by Sternberg. Even in the field, it was clear that the skeleton was completely intact, save for the head, part of the neck, and the tip of the tail. Sternberg’s field notes indicate that the weathered side included a number of large skin impressions. The Lambeosaurus was jacketed and excavated in eight sections, totaling about three tons of rock and fossil.

Like Elmer the Gorgosaurus, the Lambeosaurus was left unprepared while Field Museum preparators focused on the fossils from South America. In 1947, the University of Chicago closed its geology museum and donated its collections to the Field Museum, pushing the Alberta fossils even further down the queue. Stanley Kuczek finally prepared the Lambeosaurus in 1954, when it was slated to be paired with Daspletosaurus in a new display (more below).

Kuczek prepared only the unweathered (face-down in the field) side of the skeleton, so the skin impressions Sternberg reported are still embedded in the matrix around the fossil. A Lambeosaurus skull from the University of Chicago collection (UC 1479) was used to complete the display. Sternberg’s Lambeosaurus remains the most complete non-bird dinosaur at the Field Museum, and a (perhaps unsung) highlight of the collection.

Daspletosaurus torosus (PR 308)

Nathan Cochran recently rediscovered the original “*Gorgosaurus*” and *Lambeosaurus* label, as seen in this image. Check it out here. Photo © Field Museum.

The Field Museum’s Daspletosaurus, sometimes called “Gorgeous George,” was collected by Barnum Brown of the American Museum of Natural History in 1914. It came from the same region of Alberta that Riggs and company would visit eight years later. At the time, the partial skeleton was considered an example of Gorgosaurus, of which the New York museum already had three. In 1955, Field Museum board member Louis Ware offered to buy the American Museum’s spare tyrannosaur, and soon the fossil was on its way to Chicago.

Orville Gilpin mounted the skeleton—which has been known as Daspletosaurus since 1999—for display. He elected to create a completely free-standing mount, with no visible armature. This required drilling through each of the vertebrae to thread a steel pipe through, as well as splitting the right femur. These destructive practices would never be undertaken today, but in the mid 20th century, dinosaurs were seen as display pieces first and scientific specimens second.

*Daspletosauru*s in Evolving Planet. Photo by the author.

Like the “Apatosaurus,” Gorgeous George was revealed to the public during Members’ Night. The skeleton was placed at the south end of the museum’s central Stanley Field Hall, standing over Sternberg’s Lambeosaurus as though it had just brought down the herbivore. In 1992, Prehistoric Animal Structures, Inc. remounted the Daspletosaurus in a more accurate horizontal posture, once again poised over its Lambeosaurus prey. The real skull has never been mounted on the skeleton, but it is currently on display near the museum’s east entrance.

Parasaurolophus cyrtocristatus (P 27393)

*Parasaurolophus* in Evolving Planet. Photo by the author.

The Parasaurolophus cyrtocristatus holotype was found by Charles Sternberg (father of George) in 1923, near Fruitland, New Mexico. It made it to the Field Museum through a series of exchanges, but was not prepared until the 1950s. John Ostrom published a description of the skeleton and partial skull in 1961, noting that it was nearly identical to Parasaurolophus walkeri from Alberta, except for the crest on the back of its head. While P. walkeri has a long, backward-projecting crest, the New Mexico species has a short crest that curves downward.

The Parasaurolophus was first exhibited in 1994, as part of Life Over Time. The 70% complete skeleton was mounted directly to a wall, with illustrations of the missing bones behind it. Ten years later, Research Casting International was brought in to turn the Parasaurolophus into a complete standing mount. As in most modern mounts, the armature is designed so that each bone can be removed individually for study or conservation. Captured in a graceful walking pose, the Parasaurolophus is—in my opinion—the most elegant and evocative dinosaur mount at the Field Museum.

References

Brinkman, P. 2000. Establishing vertebrate paleontology at Chicago’s Field Columbian Museum, 1893–1898. Archives of Natural History 27:81–114.

Brinkman, P. 2010. The Second Jurassic Dinosaur Rush: Museums and Paleontology in America at the Turn of the 20th Century. Chicago: University of Chicago Press.

Brinkman, P. 2013. Red Deer River shakedown: a history of the Captain Marshall Field paleontological expedition to Alberta, 1922, and its aftermath. Earth Sciences History 32:2:204-234.

Erickson, G.M, Makovicky, P.J., Currie, P.J., Norell, M.A., Yerby, S.A., and Brochu, C.A. 2004. Gigantism and life history parameters of tyrannosaurid dinosaurs. Nature 430:722–775.

Forster, C.A. 1996. Species resolution in Triceratops: cladistic and morphometric approaches. Journal of Vertebrate Paleontology 16:2:259–270.

Gilpin, O. 1959. A free-standing mount of Gorgosaurus. Curator: The Museum Journal 2:2:162–168.

Ostrom, J.H. 1961. A new species of hadrosaurian dinosaur from the Cretaceous of New Mexico. Journal of Paleontology 35:3:575–577.

8 Comments

Filed under dinosaurs, exhibits, field work, FMNH, fossil mounts, history of science, museums, ornithopods, sauropods, theropods

June 12, 2022 · 9:06 pm

Rhinos too thick: Fossils and flattery at Agate Springs

“No progress at all. Rhinos too thick.”

So wrote American Museum of Natural History fossil collector Albert Thomson in his September 1917 field notes. At that point, Thomson been collecting mammal fossils at Agate Springs nearly every year since 1907—and was still finding rhino bones in such abundance that they formed a seemingly impenetrable layer.

Located in northwest Nebraska and dating to about 22 million years ago, the Agate Springs bone bed is an aggregation of fossilized animals on an astonishing scale. Like the Carnegie quarry at Dinosaur National Monument, it provides a snapshot of an ecosystem at a moment in geologic time. But while a high estimate of the individual dinosaurs represented at Carnegie Quarry is in the hundreds, the main bone bed at Agate Springs may well contain tens of thousands of animals. The vast majority of fossils come from the tapir-sized rhino Menoceras, scrambled and packed together in a layer up to two feet thick. Moropus, Daeodon, and an assortment of other hoofed animals and small carnivores have also been found. These animals may have gathered during a drought and succumbed to thirst or disease, before the returning rains rapidly buried their remains. It’s also possible that the bone bed represents a mass drowning during a flash food. Since different parts of the site vary in density, Agate Springs likely represents multiple mortality events over a number of years.

Charles Knight’s mural of the Agate Springs ecosystem. © Field Museum, CC BY-NC 4.0

Today, less than 30% of the Agate Springs bone bed has been excavated, but not for a lack of effort. Teams from a half dozen museums visited the site between 1900 and 1925, with the Carnegie Museum of Natural History (CM), the University of Nebraska State Museum (UNSM), and the American Museum of Natural History (AMNH) establishing large-scale excavations and returning year after year. As we shall see, the relationships between these teams were not always amicable, making this period at Agate Springs a window into the preoccupations of museum workers at the turn of the century. Agate Springs also illustrates how east coast paleontologists interacted with and relied on local people, defending their social capital as jealously as any fossil deposit. Finally, museums’ interest in Agate Springs in the mid 20th century exemplifies how exhibitions had evolved during the intervening period.

The setting

Agate Springs is unceded Sioux territory, occupied by settlers after the Kansas-Nebraska Act of 1854. James Cook purchased the treeless tract of rolling hills from his father-in-law in 1887, naming it Agate Springs after the rocky banks of the nearby Niobrara River. James and Kate Cook established a ranch where they raised horses and cattle, and Agate Springs became a popular stop for travelers on their way to Cheyenne, Wyoming.

The Cooks were aware of bones weathering out of the hills as far back as 1885, when the land was still owned by Kate’s father. James knew that scientists were on the lookout for fossils in the region—by one account he worked for O.C. Marsh as a translator in 1874. Once the ranch was established, he began writing to museums, including UNSM in Lincoln and the Carnegie Museum in Pittsburgh, inviting them to visit Agate Springs. A UNSM party led by Erwin Barbour was the first to drop by, spending a night at the Cook homestead in July 1892. Chiefly concerned with collecting “devil’s corkscrews” (ancient beaver burrows) north of the Niobrara, Barbour sent his student F.C. Kenyon to check out the bones Cook promised in the nearby hills. Kenyon collected as much as he could carry, but his report apparently did not excite Barbour, and the UNSM party moved on.

It would be twelve years before another paleontologist visited Agate Springs. Olaf Peterson of the Carnegie Museum stopped by the ranch in early August of 1904, at the end of a tumultuous field season in western Nebraska. Peterson had received a telegram on July 4 that his brother-in-law, boss, and mentor John Bell Hatcher had died of typhoid. Peterson intended to cut the season short, but Carnegie Museum director William Holland denied the request, writing in no uncertain terms that Peterson was to continue his work in Nebraska. Later in July, Peterson fell ill himself, and spent several days recovering in Fort Robinson. Suffice it to say, Peterson was not in the best of moods when he arrived at Agate Springs.

Nevertheless, the outcrops Peterson saw at Agate Springs revitalized his spirit. Accounts differ on what part of the site Cook showed him (this will be important shortly), but when he returned east two weeks later he was raving about a quarry with “ten skulls within a six-foot radius.” In Pittsburgh, Peterson and Holland began drawing up plans for an ambitious excavation the following year. In their view, they had staked a claim to the site: just like contemporary gold and oil prospectors, turn-of-the-century paleontologists lived by the rule of “dibs.” For the museum crowd, being the first scientist to “discover” a quarry meant an entitlement to control the site and the resources it produced. This included both the physical fossils and the privilege to describe and interpret those fossils—controlling the site meant controlling scientific knowledge.

Dueling quarries

Cook either didn’t know about such customs, or didn’t care. To his credit, Cook was never interested in monetizing the fossils at Agate Springs. By all accounts, he simply wanted to share with the world the knowledge that the bone bed represented. He was concerned that it was so expansive that no single team could uncover all its secrets. On May 26, 1905, Cook wrote to Barbour, inviting him to share in the bounty he had shown Peterson the previous summer, explaining that it was “so large that [the Carnegie team] could not work it out in years, so there is plenty of material for other parties to work with.”

On other occasions, Barbour had taken a cautious stance when corresponding with landowners. In this case, however, he could barely contain the enthusiasm in his reply. In a single letter, Barbour reminded Cook that UNSM had visited 12 years before and therefore should have collecting rights, asked Cook to place a literal flag on the site claiming it for the University of Nebraska, offered to hire Cook’s 18 year-old son Harold as a field assistant, and appealed to Cook’s state pride by listing the out-of-state institutions that were removing Nebraska’s fossil heritage each year.

Carnegie and University Hills at Agate Springs National Monument. Photo by Neublar110, CC SA

That summer, Peterson and Barbour opened quarries on two neighboring buttes at Agate Springs, which came to be known as Carnegie Hill and University Hill. While the two parties were cordial neighbors, letters exchanged by Holland, Barbour, and Cook demonstrate that the museum directors were uncomfortable with the situation. Holland repeatedly wrote to Cook, claiming that his team was more skilled than Barbour’s and warning that it would be bad for science if the fossils and geological data were split between two institutions. Harold Cook didn’t appreciate Holland’s condescending tone. In a note to his father pinned to one of the letters, he wrote that “a letter of this kind is the work of a pinheaded, egotistical, educated fool.”

The Carnegie and UNSM teams returned to Agate Springs in 1906, but spent the summer of 1907 elsewhere. The elder Cook took the opportunity to invite yet more paleontologists, and teams from AMNH, the Yale Peabody Museum, and Amherst College showed up to collect fossils.

Meanwhile, Holland began a campaign to wrest control of the site by any means necessary. He became particularly focused on the narrative of who discovered the bone bed. According to Holland, Cook had shown Peterson the smaller, less dense site that would be come to be known as Quarry A. Peterson then went prospecting on his own and found the primary bone bed that straddled the two buttes. Holland went on to argue that regardless of who first saw the fossils, Peterson earned credit for the discovery because he was the first trained scientist on the scene, and therefore the first individual to correctly identify the age and identity of the animal remains.

Cook rejected Holland’s retelling of the events of August 1904, insisting that he had known of the bone bed for years before he showed it to Peterson. In many ways, the two men were talking past each other. Cook found Holland’s insistence on claiming the discovery for Peterson nonsensical and disrespectful—he knew his own land, and he was the one who invited the paleontologists in the first place. Holland, on the other hand, was staking a claim among his fellow academics. He needed to demonstrate that the Carnegie Museum had been at Agate Springs first, so that other institutions would yield to his authority to interpret and publish on the fossils.

Menoceras fossils from Agate Springs on display at the Carnegie Museum of Natural History. Photo by the author.

Late in 1907, Holland visited the Cooks’ ranch in person for the first time. He offered to buy the fossil-bearing land outright, doubtlessly planning to block the other museums from accessing it. At this point, James Cook made the awkward discovery that Carnegie Hill and University Hill were actually just outside his official holdings, in the public domain. Holland moved to purchase the land, but Harold Cook beat him to it, building a cabin and filing a homestead claim in March 1908. In their gentlemanly rancher way, the Cooks told Holland to get lost, and the Carnegie Museum left Agate Springs for good.

Playing nice

While Holland had managed to sour his relationship with a remarkably welcoming and accommodating landowner, Barbour did the opposite. In letters to Cook, he regularly acknowledged the rancher as the discoverer of the site. He visited the Cooks frequently and employed Harold in the UNSM quarry, training the younger Cook into a formidable fossil prospector and anatomist. Soon Harold was studying at the University of Nebraska under Barbour, and a few years later, Harold and Barbour’s daughter Elinor were married. Barbour also named a few species after the Cooks, including Moropus cooki.

AMNH director Henry Osborn and field manager Albert Thomson had a similarly positive relationship with the Cooks. The New York museum took over Carnegie Quarry in 1908, and Osborn visited several times to express his gratitude. Like Barbour, he paid Harold for his time, labor, and expertise. Later, Osborn invited Harold to work at AMNH during the off-season. In return, AMNH was permitted to collect at Agate Springs for nearly two decades. Thomson returned almost every year through 1923, and the museum accumulated so many Menoceras and Moropus fossils that it began selling and trading them to other institutions.

Menoceras and Moropus slab at the National Museum of Natural History. Photo by the author.

The reward for staying in the Cooks’ good graces was clear. UNSM and AMNH paleontologists gained access to the Agate Spring quarries for many years, accumulating large collections. They earned accolades from publications, public interest from the skeletons they placed on exhibit, and even monetary rewards from selling the excess specimens. Meanwhile, the Carnegie Museum was shut out after their first few seasons of collecting because Holland was, if not outright hostile to the Cooks, unable to communicate effectively with the ranchers. For American paleontologists at the turn of the century, social capital was a critical resource. Positive relationships with landowners and other individuals in the fossil-rich western states earned them access to land, information about the terrain, and networks of eyes on the ground, any of which might lead them to the next important quarry.

You get a rhino block, and you get a rhino block…

The scale and intensity of the Agate Springs excavations decreased after 1910, and in the early 20s, Thompson and the AMNH crew closed up shop, believing they had found examples of every species that could be found. By that time, the site’s value for museums had shifted. Rather than being a bonanza of specimens to collect, categorize, and publish on, Agate Springs had become a place to quickly and easily obtain display-worthy fossils. As Hunt puts it, the site was a “storehouse of good exhibit materials, to be tapped when needed by museums wishing to mount a rhino or two.”

Today, Agate Springs fossils—acquired in the field or via trade—are on display at large and small museums all over North America. Many of these are mounted skeletons of rhinos, camels, and Moropus, but there is also a particular abundance of large, incompletely prepared slabs, which provide viewers with a small window into the Agate Springs bone bed. Because of the sheer density of bones, the early 20th century excavation teams quickly stopped jacketing fossils individually, and instead began preparing out large blocks, typically four to six feet across. The blocks were hardened with shellac, and reinforced with wood planks around their borders. Pulleys and cranes were required to lift the largest blocks out of the quarries. In the early years, the intention was to fully excavate these blocks at their respective museums. It’s not clear which museum first placed a complete block on exhibit, but the idea proved popular. Many later visitors to Agate Springs, from James Gidley of the National Museum of Natural History in 1909 to Elmer Riggs of the Field Museum of Natural History in 1940, came with the express purpose of collecting intact slabs for display.

Menoceras slab on display at the Field Museum of Natural History. Photo by the author.

The popularity of fossil blocks from Agate Springs coincides with a shift in philosophy toward exhibitions at natural history museums. While early 20th century exhibits were catalogs of life, emphasizing the breadth of the museum’s collection, by the 1920s and 30s many museums had begun moving toward narrative exhibits. Displays were intended to communicate ideas, and objects served as illustrations of those ideas. The fossil blocks from Agate Springs were ready-made illustrations of a number of paleontology concepts, from the process of taphonomy to the task of excavation millions of years later. Most have remained on display to this day, a fact that James Cook would undoubtably be pleased with.

An incomplete list of museums in possession of Agate Springs blocks follows. Do you know of others? Please leave a comment!

Carnegie Museum of Natural History
American Museum of Natural History
University of Nebraska State Museum
Field Museum of Natural History
National Museum of Natural History
Royal Ontario Museum
Yale Peabody Museum of Natural History
Harvard Museum of Comparative Zoology
University of Wyoming Geological Museum
South Dakota School of Mines and Technology
Wesleyan University Geology Museum
University of Austin Texas Memorial Museum
University of Michigan Museum of Natural History
Science Museum of Minnesota
Fort Robinson State Park Trailside Museum

References

Agate Fossil Beds: Official National Park Handbook. Washington, DC: National Park Service.

Hunt, R.M. 1984. The Agate Hills: History of Paleontological Excavations, 1904-1925.

Vetter, J. 2008. Cowboys, Scientists, and Fossils: The Field Site and Local Collaboration in the American West. Isis 99:2:273-303.

Skinner, M.F., Skinner, S.M., Gooris, R.J. 1977. Stratigraphy and Biostratigraphy of Late Cenozoic Deposits in Central Sioux County, Western Nebraska. Bulletin of the American Museum of Natural History 158:5:265-370.

3 Comments

Filed under AMNH, CMNH, collections, dinosaurs, DMNS, exhibits, field work, fossil mounts, history of science, museums, NMNH, ornithopods, sauropods, theropods, thyreophorans

Tagged as amnh, CMNH, dinosaur national monument, dinosaurs, fossil mounts, fossils, history of science, museums, NMNH, paleontology, ROM

January 16, 2022 · 1:51 pm

The dinosaurs of London’s Natural History Museum

Founded in 1881 as an offshoot of the British Museum, the Natural History Museum (NHM) in London is one of the world’s best-known and most-visited museums. For millions of visitors from the UK and abroad each year, NHM provides their first—sometimes only—opportunity to see a full-sized dinosaur skeleton in person. That makes the collection of dinosaurs on display uniquely important: each one is an ambassador to paleontological science and the deep history of the Earth.

For your reference and mine, what follows is a brief introduction to NHM’s dinosaurs. Please note that I have not been to NHM and this information is based on references available online.

Diplodocus carnegii (Dippy)

For 36 years, Dippy greeted visitors in Hintze Hall. Source

Most readers are probably familiar with the story of Dippy the Diplodocus. In 1898, industrialist and philanthropist Andrew Carnegie funded an expedition to find a sauropod dinosaur for the newly-founded Carnegie Museum of Natural History. The Diplodocus the team uncovered the following summer was—and still is—one of the most complete sauropod skeletons ever found. Nevertheless, Carnegie lost the race for the first mounted sauropod on permanent display: the American Museum of Natural History unveiled its composite Apatosaurus in March of 1905, while the Carnegie Museum building was still unfinished. Not to be bested by the New York competition, Carnegie offered a complete plaster cast of the Diplodocus to King Edward VII. The replica known today as Dippy went on display in London that May. Carnegie went on to produce seven additional Diplodocus casts, and more have been created since his death in 1919.

Whether we consider all versions or just the London cast, Dippy’s cultural impact is astounding. As Nieuwland writes, “Carnegie’s series of casts—and the political gesture of their donations—turned [Dippy] into a contested and open-ended object that existed at the crossroads of several interacting (social, political, cultural, scientific) domains.” The intersection of political intrigue and gossip with the sensational nature of the specimen itself resulted in a cascade of media attention, political cartoons, and eventually even films. At least in Europe, Dippy can be believably said to be the specimen that made “dinosaur” a household word.

In 1979, Dippy was moved to NHM’s cavernous entryway, called Hintze Hall. The cast served as the museum’s mascot and most iconic object until 2015, when it was replaced with a blue whale skeleton. Dippy’s time in the limelight was not over, however. The original cast was retrofitted for the traveling exhibition Dippy on Tour, and a bronze duplicate may one day be installed outside NHM.

Triceratops sp.

Triceratops replica skeleton at the Natural History Museum. Source

This Triceratops is not an original skeleton or a cast—it’s a papier mâché model. Frederic Lucas of the United States National Museum (now the National Museum of Natural History) created this replica in 1900 for the Smithsonian display at the Pan-American Exhibition in Buffalo, New York. He likely used O.C. Marsh’s published illustration of a Triceratops skeleton as his primary reference. The model made a second appearance at the 1904 Louisiana Purchase Exposition in St. Louis, Missouri, but was rendered obsolete shortly thereafter when Charles Gilmore finished the world’s first real Triceratops mount in 1905. While constructing the skeleton, Gilmore learned that Marsh and Lucas’s straight-legged interpretation was physically impossible—Triceratops actually had partially sprawling forelimbs.

Nevertheless, exhibit models like this rarely go waste. Two years later, NHM received Lucas’s model as a gift from USNM. It has been on nearly continuous display ever since.

Iguanodon bernissartensis

The Belgian Iguanodon cast as it appears today.Source

In 1878, coal miners in western Belgium discovered a clay deposit dense with Iguanodon fossils. A crew from the Belgian Royal Museum of Natural History (now the Belgium Museum of Natural Sciences) excavated dozens of skeletons, and in 1882 Louis De Pauw and Louis Dollo took on the task of assembling the best examples into standing mounts. De Pauw distributed casts of the largest and most complete individual to several institutions around Europe, including NHM (sources differ on whether the NHM cast arrived in 1895 or 1905).

While Dippy is made up of individual plaster casts of each bone, the Iguanodon was molded and cast in a handful of large sections. This means that the skeleton cannot be easily reassembled into a horizontal pose, and must remain a relic of an earlier era in our understanding of dinosaur posture.

Hypsilophodon foxii

hypsybeforeafter

Nearly all known Hypsilophodon fossils come from the”Hypsilophodon bed,” part of the Wessex Formation on the Isle of Wight. More than a hundred articulated skeletons have been found in this mudstone layer, including NHM’s mounted pair. These particular individuals were collected by Reginald Hooley, an avocational fossil collector who also described and published several new species. The bulk of Hooley’s collection was sold to NHM in 1924, shortly after his death.

The larger Hypsilophodon (R5829) was mounted in 1934 by preparators Louis Parsons and Frank Barlow, in an upright, tail-dragging pose that closely mirrored the Belgian Iguanodon. This mount remained on display until the early 1990s, when the specimen was remounted for the 1992 dinosaur hall. Nigel Larkin and colleagues adapted the original iron armature to give the skeleton its correct horizontal posture. A juvenile Hypsilophodon (R5830) from the Hooley collection was also mounted at this time, using a cast Orodromeus skull provided by the Museum of the Rockies. Both Hypsilophodon mounts remained on display until 2016, when they were removed due to conservation concerns.

Mantellisaurus atherfieldensis

mantellibeforeafter

The centerpiece of the 1924 Hooley acquisition is the holotype skeleton (R5764) of Mantellisaurus atherfieldensis, known at the time as Iguanodon atherfieldensis. Hooley found the 85% complete skeleton in 1914 on the Isle of Wight, in several blocks that had already eroded out of a cliff. It was—and still is—the most complete dinosaur skeleton found in the UK. Like the Hypsilophodon, the Mantellisaurus was originally mounted in the 1930s with a kangaroo-like posture. It was remounted for the 1992 exhibit in a horizontal walking pose.

More recently, the Mantellisaurus was moved to the redesigned Hintze Hall, part of a small selection of iconic specimens that represent the NHM’s collections and research areas. As an exceptionally complete, local dinosaur, it was a natural choice to represent vertebrate paleontology at the museum. In 2019, paleontologist Susannah Maidment and preparator Mark Graham spent four days temporarily dismantling the Mantellisaurus mount and digitizing every bone for future research.

Scolosaurus cutleri

The complete Scolosaurus fossil. Image courtesy of the National History Museum, CC BY.

Another remarkable real specimen in the NHM collection is the Scolosaurus holotype (R5161). This fossil includes nearly the entire animal intact and in situ, including its osteoderms and some skin impressions. Only the head, the end of the tail, and two limbs are missing.

The Scolosaurus was found by fossil hunter William Cutler in 1914. After moving to Alberta from the UK, Cutler found work on Barnum Brown’s field expeditions before setting out as an independent collector. Cutler had a reputation for reckless behavior in the field, and often worked alone. Excavating the Scolosaurus was a case in point: it collapsed on him while he was undercutting the jacket.

NHM purchased the Scolosaurus in 1915, and Parsons set to work preparing the fossil straightaway. It has been on near-continuous display since 1929.

Cutler was hired by NHM again in 1925 to search for dinosaurs in Tanzania. Among his party was none other than Louis Leakey, on his first field season. Tragically, Cutler contracted malaria and died in the field at age 47.

Massospondylus carinatus

Like most of the dinosaurs in the 1992 exhibit, Massospondylus stands on a platform over visitors’ heads. Source

In 1962, NHM acquired a nearly complete, unarticulated Massospondylus cast from the South African Museum in Cape Town. Some time later, William Lindsay and colleagues mounted it for a temporary exhibition at the City of Plymouth Museum. The mount has an unusual supporting armature, composed of short, glass-reinforced epoxy tubes. Since each section of tube fits tightly into the next, the mount can be assembled without the use of adhesives. The Massospondylus was repurposed for the 1992 dinosaur hall, where it remains today.

Gallimimus bullatus

At 18 feet long, Gallimimus is bigger than you think. Source

Like Massospondylus, this Gallimimus arrived at NHM as an unarticulated cast in an exchange with a peer institution, in this case the Polish Academy of Sciences. The original skeleton was discovered on a Polish-Mongolian joint expedition led by trailblazing paleontologist and all-around incredible person Zofia Kielan-Jaworowska.

When NHM was beginning work on the 1992 dinosaur hall, the fossil prep team elected to hire Research Casting International to mount the Gallimimus. Rather than using the plaster casts, RCI made a plastic duplicate of each bone and assembled them on an aluminum armature. The skeleton’s running pose meant that the mount’s weight had to be carefully managed. All the weight rests on the left leg, which was molded around a 22-pound steel rod to compensate.

Lindsay reports that the decision to display most of the dinosaurs on elevated platforms was not made until after most of the mounts were finished. This wasn’t an issue for the smaller, more stable skeletons, but the Gallimimus was heavy and awkward enough that the tensioned steel cables holding up its platform had to be adjusted and readjusted as the skeleton was assembled.

Baryonyx walkerii

A relief-mounted cast of Baryonyx, created in-house at NHM. Source

In January of 1983, William Walker discovered a large claw in a brick pit. NHM paleontologists Angela Milner and Alan Charig traveled to the site in southern England that summer to look for more. What they found was a carnivorous dinosaur unlike any other, with a crocodilian snout and smooth, straight teeth for snagging fish. Named Baryonyx walkeri, this specimen (R9951) is the only confirmed example of the species yet found.

The Baryonyx was found in particularly hard matrix loaded with iron ore, and as a result took nearly ten years to prepare, mold, and cast. A relief mount was completed just in time for the opening of the 1992 dinosaur hall.

Stegosaurus stenops (Sophie)

Sophie the Stegosaurus greets visitors in Earth Hall, at the museum’s east entrance.
Source

NHM’s most recent major dinosaur acquisition is a juvenile Stegosaurus called Sophie (R36730). Commericial fossil hunter Bob Simon collected the skeleton at a quarry in Wyoming, in 2003. The 90% complete, three-dimensionally preserved skeleton was prepared at Sauriermuseum in Switzerland. NHM purchased the specimen in 2013 with the help of multiple donors. Working in secret, staff paleontologists Susannah Maidment, Paul Barrett, and Charlotte Brassey thoroughly documented the skeleton with CT and laser scans of every bone. Sophie’s mounted skeleton was a surprise reveal in December 2014, alongside a trove of open access research covering the animal’s locomotion, bite force, and more.

References

Barrett, P., Parry, P., and Chapman, S. 2016. Dippy: The Tale of a Museum Icon. Natural History Museum, London.

Getty, T.A. and Crane, M.D. 1975. A Historical Account of the Palaeontological Collections found by R.W. Hooley (1865 to 1923). Newsletter of the Geological Curators Group. 4 (September 1975) :170-179.

Lindsay, W., Larkin, N., and Smith, N. 1996. Displaying Dinosaurs at the Natural History Museum, London. Curator 39:4:262-279.

Maidenment, S.C.R., Brassey, C., and Barrett, P.M. 2015. The postcranial skeleton of an exceptionally complete individual of the plated dinosaur Stegosaurus stenops from the Upper Jurassic Morrison Formation of Wyoming, USA. PLoS One. 10:10: e0138352.

Nieuwland, I. 2019. American Dinosaur Abroad: A Cultural History of Carnegie’s Plaster Diplodocus. University of Pittsburgh Press.

Noe, L. and Flinney, S. 2008. Dismantling, painting, and re-erecting of a historical cast of dinosaur Iguanodon in the Sedgwick Museum, Cambridge. NatSCA News 14:41-48.

Swinton, W.E. 1936. Notes on the Osteology of Hypsilophodon, and on the family Hypsilophodontidae. Proceedings of the Zoological Society of London. 106:2:555-578.

Tanke, D.H. 2003. Lost in plain sight: Rediscovery of William Cutler’s missing Eoceratops. In New Perspectives on Horned Dinosaurs. Indiana University Press.

10 Comments

Filed under dinosaurs, exhibits, field work, fossil mounts, marginocephalians, museums, NHM, ornithopods, sauropods, theropods, thyreophorans

August 16, 2020 · 7:27 pm

T. rex in Context: Deep Time’s Cretaceous Display

A little over a year ago, the National Museum of Natural History re-opened its paleontology halls after a five-year renovation. As I detailed in a previous post, the new exhibition—called Deep Time—is exceptional. Breathtaking to look at, intuitive to explore, and (of course) brimming with fascinating specimens, Deep Time sets a high standard for excellence in natural history exhibitions.

Today, I’d like to take a closer look at one display in Deep Time, the Cretaceous tableau, and elaborate on what makes it so effective. Many thanks to Designers Pauline Dolovich and Fang Pin Lee, Developer Siobhan Starrs, and Curator Matt Carrano for discussing their work with me.

The Cretaceous display tells a story through its carefully-composed design.

The Cretaceous display is home to Deep Time’s centerpiece, the Tyrannosaurus rex. As was well-covered by various media outlets in the months and years leading up to the exhibition’s opening, the “Nation’s T. rex” was discovered in 1988 on Army Corps of Engineers land, and is now on loan to the Smithsonian. Although it’s one of the most thoroughly-studied Tyrannosaurus specimens around, this is the first time the real skeleton has been assembled into a standing mount. Like many of the mounted skeletons in Deep Time, the T. rex strikes a dynamic pose that evokes the behavior of the living animal. In this case, the Tyrannosaurus is prying the head off a prone Triceratops.

Obviously, the T. rex draws a crowd. It’s hard to imagine any visitor passing through Deep Time without stopping to see it. But while the exhibit team acknowledged and emphasized the spectacular nature of the tyrant king, they also harnessed its star power to make a broader statement. Tyrannosaurus was part of a rich ecosystem of plants and animals, and while this apex predator had an impact on the entire community (eating some animals, providing leftovers for others), T. rex and other meat-eating dinosaurs were far outnumbered by the turtles, lizards, salamanders, and insects they lived alongside. By placing Tyrannosaurus within its ecological context, the display makes the seemingly fantastic dinosaur much more real. This reinforces one of the exhibition’s overarching themes: life in the past functioned much like life in the present, and studying past life can inform our understanding of the world today. It’s no accident that this cross-section of a prehistoric ecosystem is at the center of the hall, and includes its most popular specimen.

To avoid cluttering the historic architecture of the east wing, the designers integrated display lighting into the platforms.

While the Cretaceous display tells a complex story that is integral to the narrative of the exhibition as a whole, its footprint is remarkably compact. This efficient use of space is the result of a long and methodical design process. Designers Fang Pin Lee and Pauline Dolovich envisioned a broad avenue across the entire hall, which would accommodate large crowds (NMNH gets up to eight million visitors each year) and allow quick access to any part of the exhibition. This avenue needed to double as a central social space, where groups could congregate around built-in seating and look out onto the various displays. But more space for visitors means less space for specimens, and dinosaurs need a lot of room. Lee and Dolovich used digital renders and a miniature model to find the optimal position for the 40-foot Tyrannosaurus and its companions. This was a careful balancing act—they had to keep the T. rex visible from multiple approaches while working around the twin rows of structural columns down the center of the hall.

With ample space for visitor traffic, long sight lines, and some very large skeletons in the mix, there was precious little room in the Cretaceous display for text panels. This worked in the display’s favor, because it meant that much of the message had to be communicated through the design. For example, the Tyrannosaurus poised over its Triceratops meal evokes the predator’s role in the ecosystem, while conveniently reducing the footprint the two skeletons would require if displayed independently. Meanwhile, a cutaway in the platform next to the T. rex‘s foot contains an alligator, a turtle, clams, and aquatic plants. While only subtly implying the presence of a pond or river (the alligator skeleton is posed as though swimming along the surface, while lotus-like flowers “float” nearby), this area demonstrates these organisms’ ecological relationship to T. rex by placing them literally underfoot.

Stangerochampsa swims among floating Nelumbago leaves in an implied waterway.

To the right of Tyrannosaurus, a densely-layered series of specimens and display elements provides a nuanced look at the Hell Creek ecosystem within a limited amount of space. In the back, a pair of large murals by Julius Csotonyi set the stage: this was a lush, green world dense with weedy flowering plants (as opposed to the open conifer forests dinosaurs are often depicted in). To the left, a lone Torosaurus is dwarfed by the forest around it. To the right, an Edmontosaurus group tramples through the undergrowth, disturbing the smaller Thescelosaurus and Polyglyphanodon. Skeletons of Edmontosaurus, Thescelosaurus, and the aquatic reptile Champsosaurus stand in front of the murals, alongside three slabs of fossil leaves.

A vivid green panel among the skeletons spells out the key takeaway: these plants and animals were part of a single ecosystem that existed in North America at the end of the Age of Dinosaurs. Similar header panels can be found throughout the exhibition, and the writers iterated on the text for years. These short phrases had to convey the context and significance of a display at a glance, even if these were the only words a visitor read. The team settled on the headline “T. rex in Context” for the Cretaceous display, but when test audiences began visiting the hall, this proved to be a mistake. Because the words appeared so close to the Edmontosaurus, visitors were concluding that the hadrosaur was a T. rex. With weeks to go before opening, the team opted to replace the headline with the tried-and-true “Last American Dinosaurs.”

Those vertical mounts for the fossil leaf slabs are incredible.

The final layer in the Cretaceous display is the rail at the very front. Smaller specimens—the lizard Polyglyphanodon, several fossil leaves, and an assortment of microfossils—are mounted in cases, while a dinosaur bone with insect damage is out in the open where it can be touched. The text on the rail is almost superfluous, but it is cleverly divided by trophic level. One panel addresses primary producers, another herbivores, and a third carnivores and decomposers. The plants and small animals are given the same amount of attention as the dinosaurs, reinforcing that all of these organisms have their part to play in the community.

Taken together, the elements of the Cretaceous display encourage deep looking without requiring a great deal of reading. Visitors drawn by the star power of the Tyrannosaurus find themselves surveying the “beautiful density” of specimens and display elements. They may notice minute details, like platform tiles slanted and dislodged as though by the movement of the dinosaurs, or the broken Triceratops horn that has rolled away from the skeleton. Intuitively, they understand that they’re looking at the complete ecological context of T. rex, and that this ecosystem is just as diverse and complex as those of today. If they choose to read the text panels, visitors will learn details like the names of the animals or the feeding strategies of different herbivores, but most of the information is conveyed through the layout alone. This is the mark of an uncommonly well-designed museum display.

5 Comments

Filed under Deep Time, dinosaurs, exhibits, fossil mounts, marginocephalians, museums, NMNH, ornithopods, paleoart, theropods

January 15, 2020 · 4:08 pm

The retiring dinosaur mounts at the Yale Peabody Museum

Another year, and another major renovation of a historic paleontology exhibition is underway. The dinosaur and fossil mammal halls at the Yale Peabody Museum of Natural History (YPM) closed to the public on January 1st. The rest of the museum will follow in July, with a planned reopening in 2023. This will be the first comprehensive renovation of the museum since the current building opened in 1931, and the upgrades are long overdue. For decades, most of the YPM exhibits have been a museum of a museum—a time capsule preserving the state of natural science and museum design in the mid-20th century. The dinosaur hall in particular looks almost exactly as it did when Rudolph Zallinger completed the spectacular Age of Reptiles mural on the east wall in 1947 (a handful of newer specimens, revised labels, and video terminals notwithstanding).

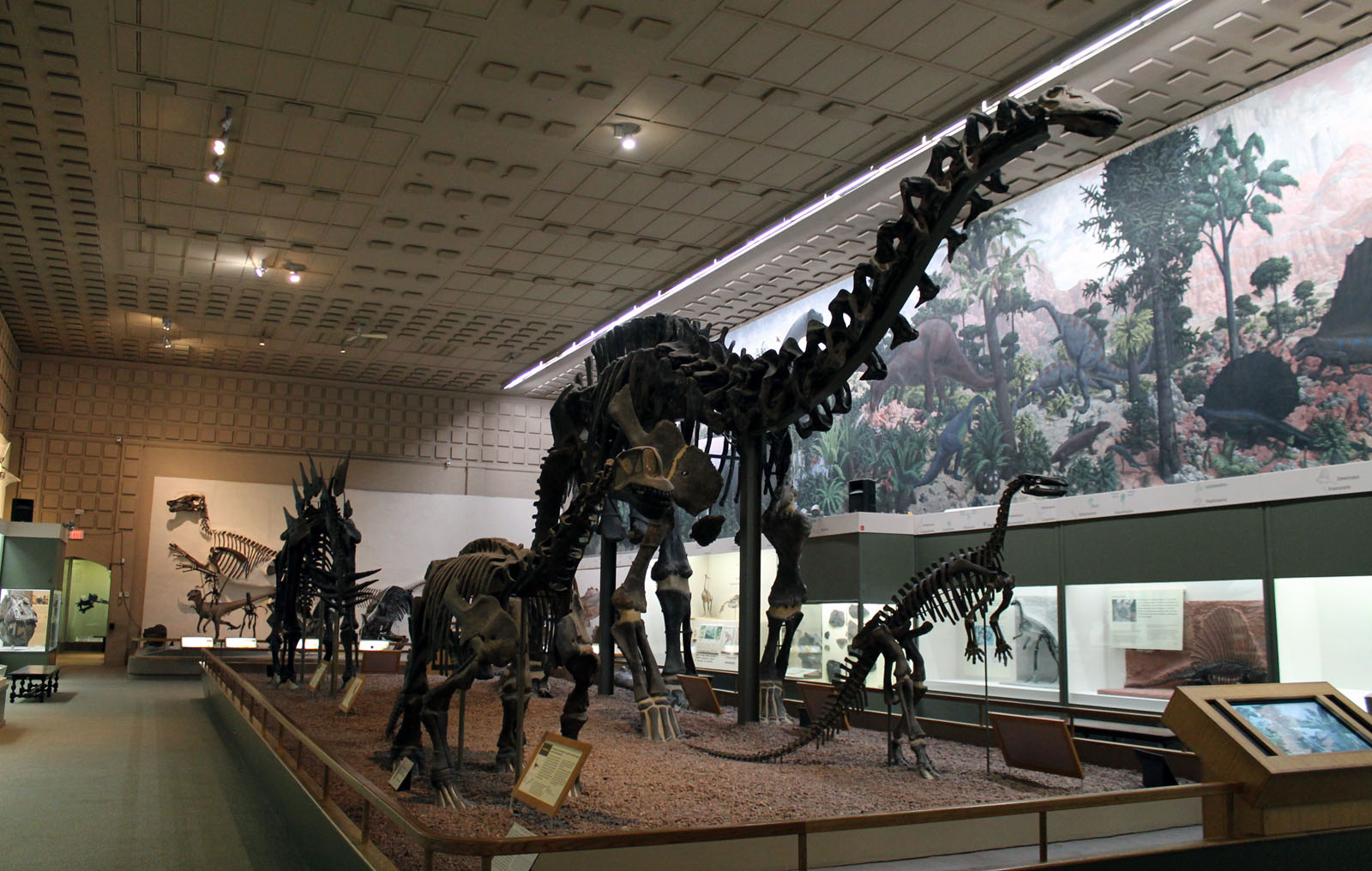

The Great Hall of Dinosaurs upon my last visit in 2014.

It’s exciting to see ground breaking on the new museum and exhibits, because this renovation has been a long time in coming. Serious discussions were underway in 2010, if not earlier, and a set of conceptual images was released as part of a fundraising effort launched in 2013. It appears that a lot has changed since then. The scope of the renovation has expanded to encompass the whole museum, not just the paleontology exhibits. And certain details from the 2013 concept—such as a mezzanine in the dinosaur hall opposite the Age of Reptiles mural—have been dropped. Last year, YPM launched a dedicated website showcasing the latest renovation plans. It’s wonderful that the institution is committed to keeping their community involved in and informed about the transformation of a public space that is near and dear to so many.

Naturally, this renovation is an opportunity to take a deep dive into the YPM fossil displays, and look at the specimens, artwork, and people that defined this institution in the past and which will carry it into the future. Expect upcoming posts exploring the future of these exhibits, but for now let’s start with a look back at the exhibit that once was.

Rendering of the new dinosaur hall, as of late 2019. Source

YPM was founded in 1866 with a gift from George Peabody. Peabody was the uncle of O.C. Marsh, who had been appointed Professor of Vertebrate Paleontology at Yale that same year. Having been awarded tenure and his own museum, Marsh began to lead and send crews into the American west to collect fossils. Many of Marsh’s expeditions were under auspices of the U.S. Geological Survey, and those fossils eventually made their way to the Smithsonian. The remainder, however, entered the YPM collections, where they remain to this day.

After Marsh’s death in 1899, his student Charles Beecher took over vertebrate paleontology at YPM. Beecher was, in turn, succeeded by Richard Lull. Lull never met Marsh (and the two were quite different in many ways), but he nevertheless spent much of his career carrying on his predecessor’s legacy. Like his Smithsonian counterpart Charles Gilmore, Lull expanded Marsh’s often laughably brief descriptions into proper monographs, which are still used by paleontologists today. And like Gilmore, Lull put the Marsh fossils on public display, guiding the assembly of the mounted skeletons that have held court at YPM ever since.

Lull became director of YPM in 1922, and it was in this role that he oversaw the museum’s move from it’s modest original building to the larger, French Gothic-inspired structure where it currently resides. Construction of the new museum was completed in 1925, and Lull spent the next several years developing the dinosaur hall we know today. Marsh, for his part, disliked the idea of display mounts, considering it a waste of time and effort. And limited space at the old facility meant that only two large dinosaur mounts—Edmontosaurus and Stegosaurus—were assembled between 1900 and 1925. The new building, however, had a great hall specifically built to house the Marsh dinosaurs, so Lull and his team got to work filling it.

Camarasaurus and Camptosaurus

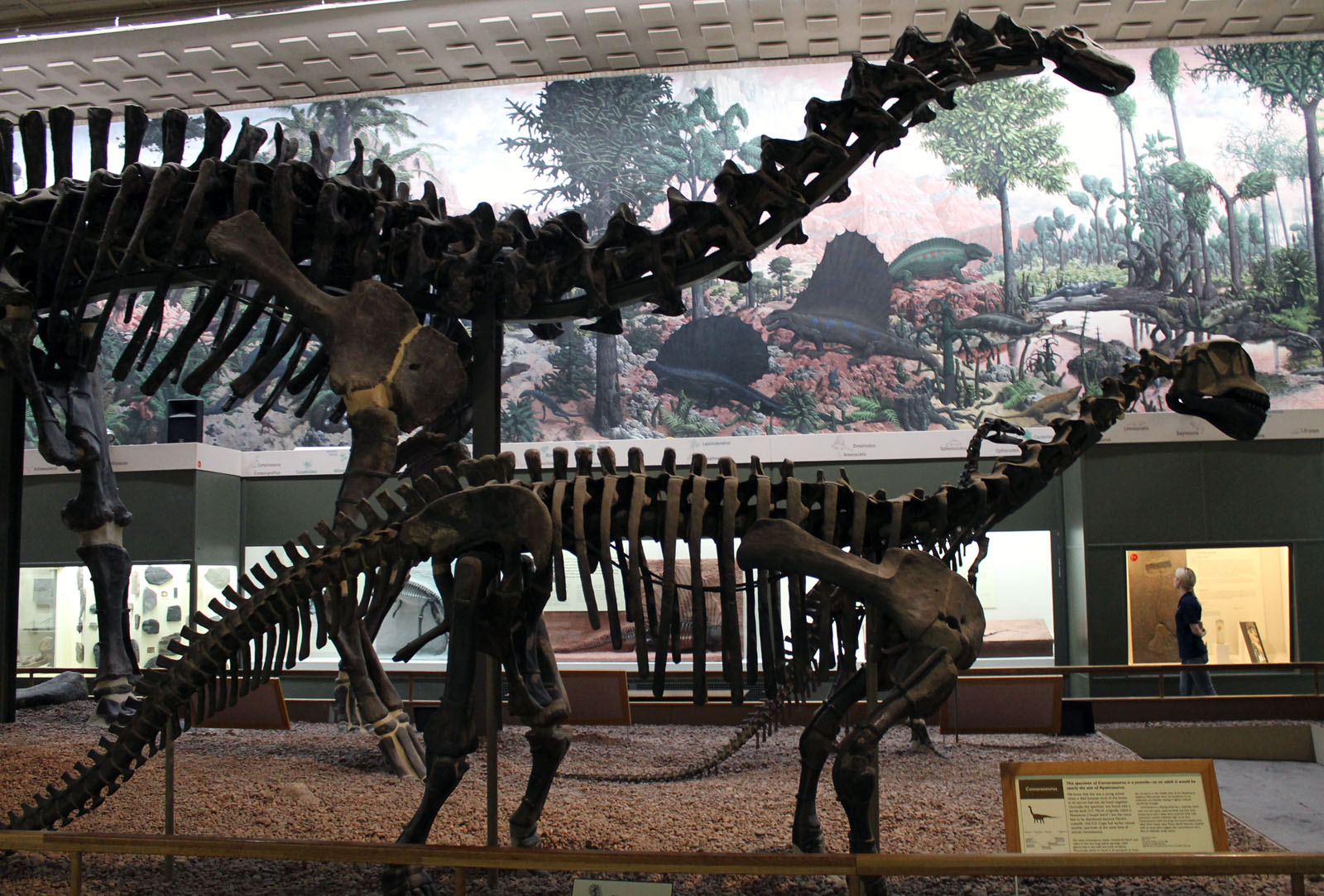

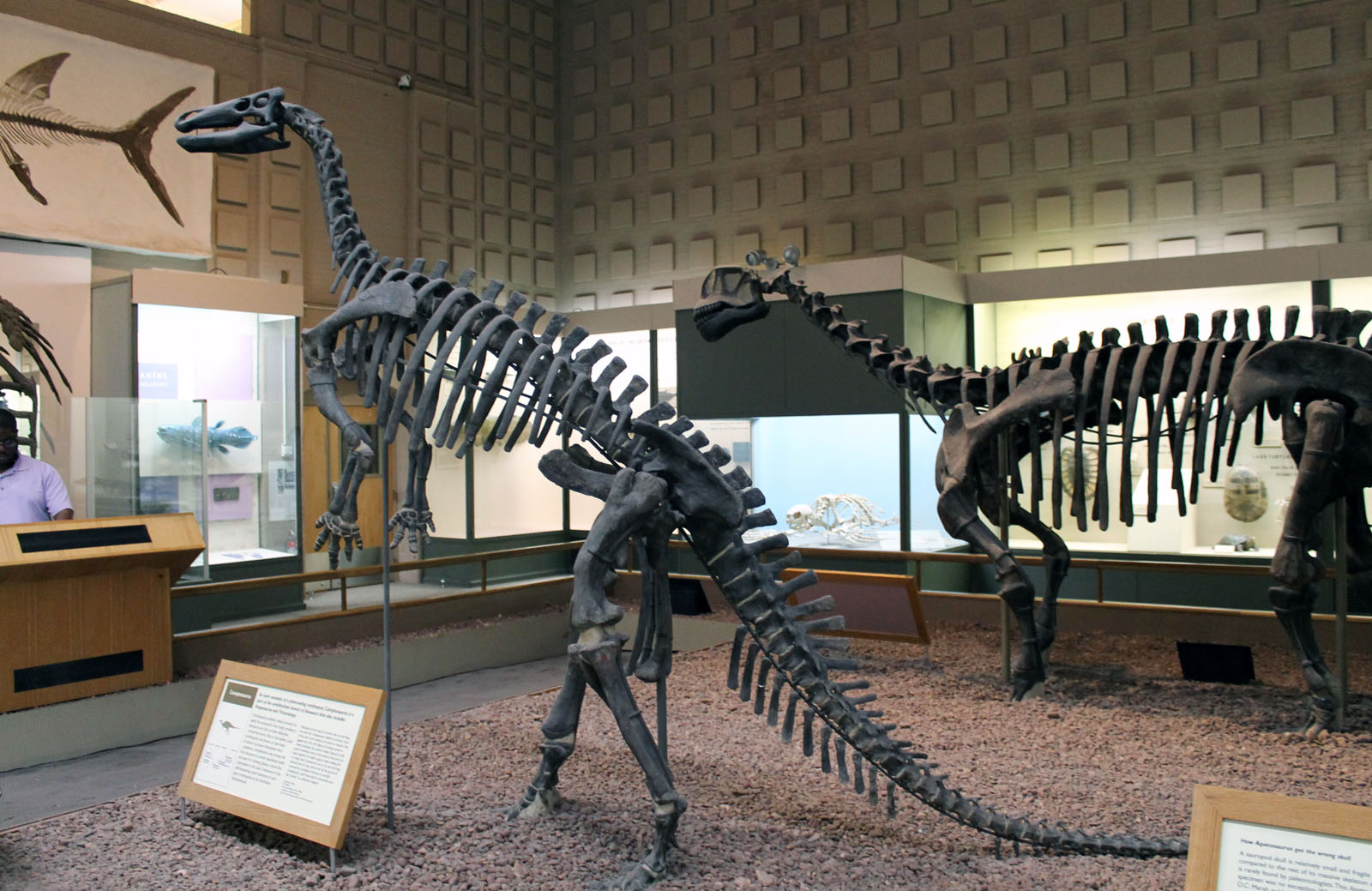

Camarasaurus and Brontosaurus mounted skeletons.

Most of the new mounts were assembled from fossils collected around 1880 at Como Bluff, Wyoming. Working for Marsh, William Reed and his crew amassed a treasure trove of Jurassic dinosaurs there, most famously the Brontosaurus holotype. Naturally, Lull devised Brontosaurus (YPM 1980) as the centerpiece of the dinosaur hall. Because of its size and complexity, it was the first of the new mounts to begin construction and took the longest to complete. The Brontosaurus was literally built into the floor: photos from the 1920s show a latticework of steel beams designed to spread its weight. Once the floor was installed, the Brontosaurus could not be moved.

In the meantime, preparator Hugh Gibb assembled two other mounts from Como Bluff material: Camarasaurus and Camptosaurus. The Camarasaurus (YPM 1910) is 21-foot juvenile, consisting of a complete vertebral column from the 2nd or 3rd cervical to middle of the tail, and most of the larger limb bones. The feet and most of the ribs are reconstructed, as is the skull, which is a fairly crude sculpture. In his 1930 publication discussing the mount, Lull commends Gibb for how closely his reconstruction matched the nearly complete and articulated juvenile Camarasaurus collected by the Carnegie Museum at what is now Dinosaur National Monument, despite the fact that Gibb had never studied that specimen. Lull only notes that the YPM mount has one fewer cervical and one fewer caudal than the Carnegie specimen, and that the reconstructed cervical ribs are much too short.

Camptosaurus and Camarasaurus mounted skeletons.

Gibb also assembled the Camptosaurus mount (YPM 1880), which he completed in 1937. Yet another specimen from Reed’s excavations at Como Bluff, the Camptosaurus is notable for how closely it mirrors Marsh’s illustrated reconstruction from 40 years earlier. It seems reasonable to assume this was a deliberate homage, although Gibb did follow Gilmore’s example and removed Marsh’s erroneous lumbar vertebrae. The sculpted skull, modeled after Iguanodon, was typical of Camptosaurus reconstructions at the time but is now known to be inaccurate.

Neither Camarasaurus nor Camptosaurus are slated to return in the renovated exhibit. Marsh originally designated both of these specimens as holotypes for “Morosaurus” (=Camarasaurus) lentus and Camptosaurus medius. Opinions on the validity of those particular species have changed over time, but it’s important that a new generation of paleontologists has an opportunity to study the original fossils up close, which has been virtually impossible in their mounted form.

Claosaurus

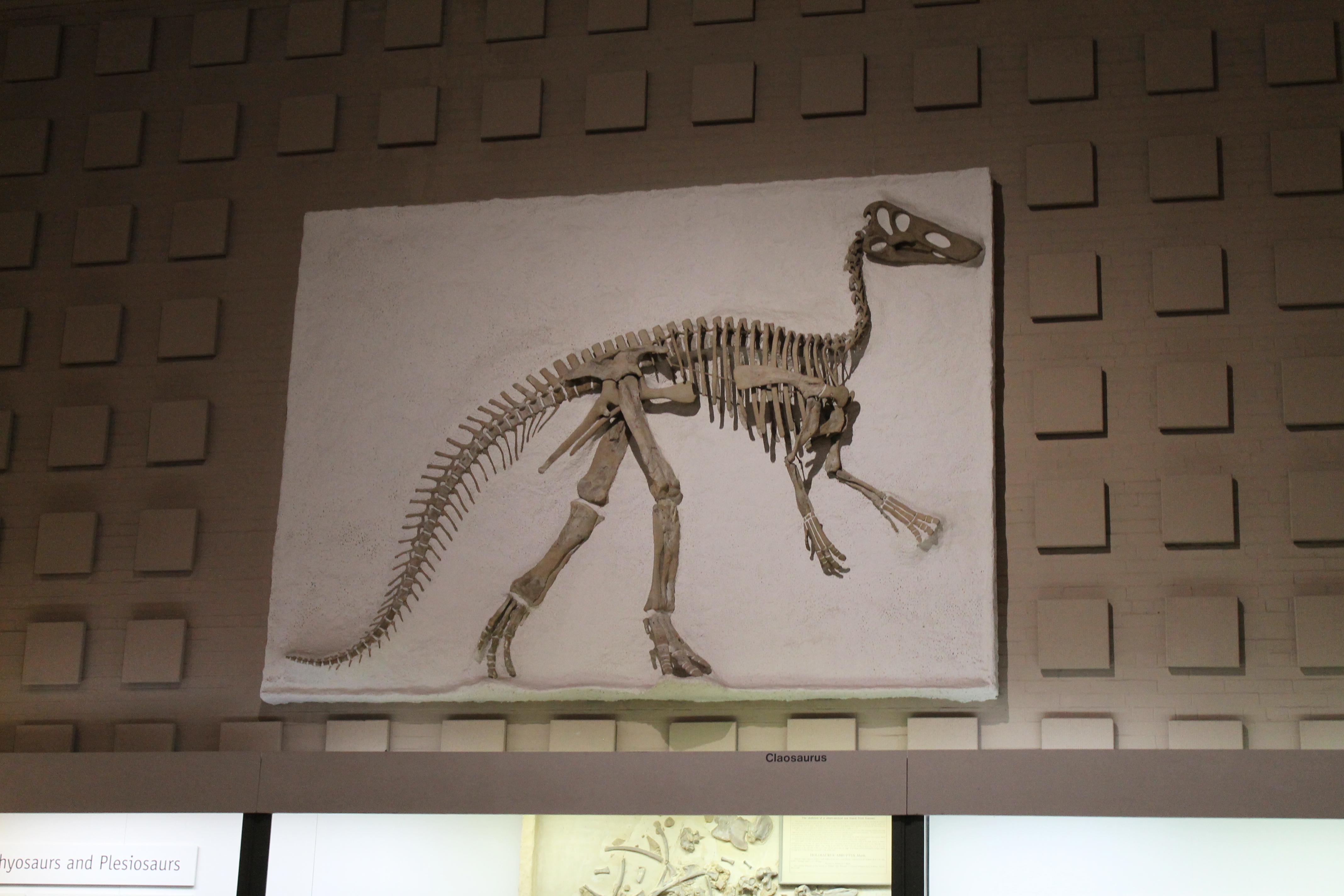

Relief mount of Claosaurus.

High on the west wall is one of YPM’s most overlooked dinosaurs. This relief mount represents the only confirmed remains of Claosaurus agilis (YPM 1190), a hadrosaur found in the marine deposits of western Kansas. Claosaurus is a bit of a taxonomic mess: Marsh initially announced this fossil as a new species of Hadrosaurus, before upgrading it to its own genus. Then, he decided to sink all of the much younger Lance Formation hadrosaur material (what is now called Edmontosaurus annectens) into the Claosaurus genus. It’s a difficult web to untangle, but Claosaurus is a real taxon that lived alongside animals like Pteranodon and Tylosaurus.

Lull and Wright describe the mount as “recent” in their 1942 monograph on hadrosaurs, so it must have been assembled after the move the current building. Most of the vertebrae and limb bones are real, but the skull is (obviously) a model built around a few fragments of jaw. Although it’s hard to see from the ground, the preservation is apparently poor, and most of the bones are crushed to some degree. Lull and Wright attest to the significance of Claosaurus as the earliest known true hadrosaur, but were clearly frustrated by the quality of the specimen. Perhaps modern paleontologists will have better luck, once it’s taken off display and returned to the collections.

Centrosaurus

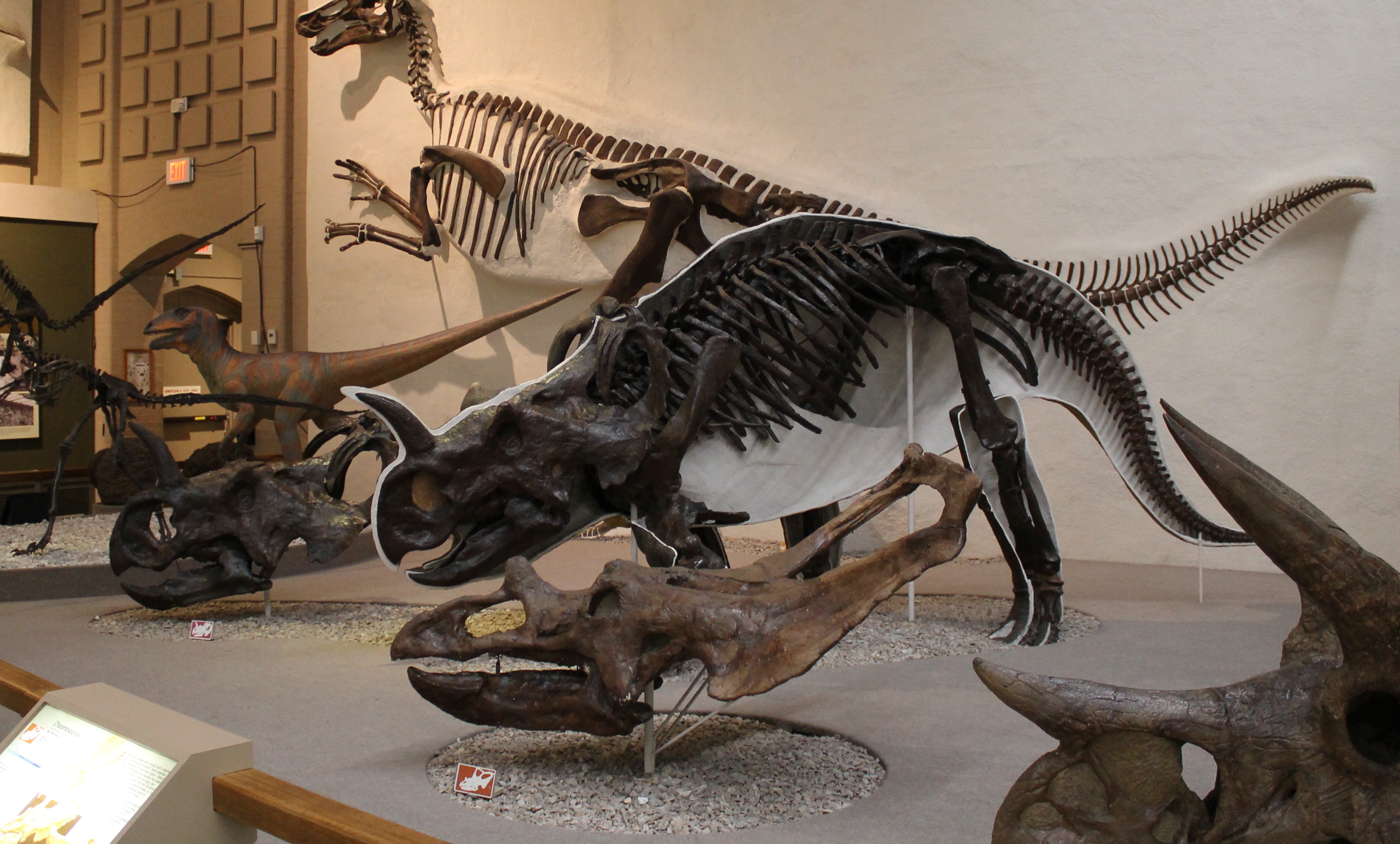

The Centrosaurus half-mount and its Cretaceous buddies.

Variably known as Monoclonius flexus, Centrosaurus flexus, and Centrosaurus apertus, this ceratopsian skeleton (YPM 2015) was collected by Barnum Brown on the American Museum of Natural History’s extremely productive expeditions to the Belly River region in Alberta. I’m not sure when YPM acquired the fossil (presumably in a trade), but it was mounted and on display by 1929. At some point during the development of the fossil mammal hall, Lull became enamored of half-mounts like this one, in which the animal appears bisected along its sagittal line. Half the skeleton is assembled on one side, while a fleshed-out model is visible on the other. Several mammal specimens at YPM are displayed this way, but the Centrosaurus is the only dinosaur.

Lull discusses the choices made in reconstructing Centrosaurus at length in his 1933 monograph on ceratopsians. He describes the relief-mounted Centrosaurus at AMNH as an imperfect representation of the animal’s life appearance because it preserves the death pose it was found in. In contrast, the YPM version is reconstructed in a three-dimensional standing posture. Lull specifically points to his Centrosaurus‘s nearly straight neck and sprawling forelimbs (with the humerus nearly horizontal) as superior to the AMNH presentation. The issue of ceratopsian forelimb posture is still not completely resolved, but there is probably some truth to Lull’s sprawling reconstruction.

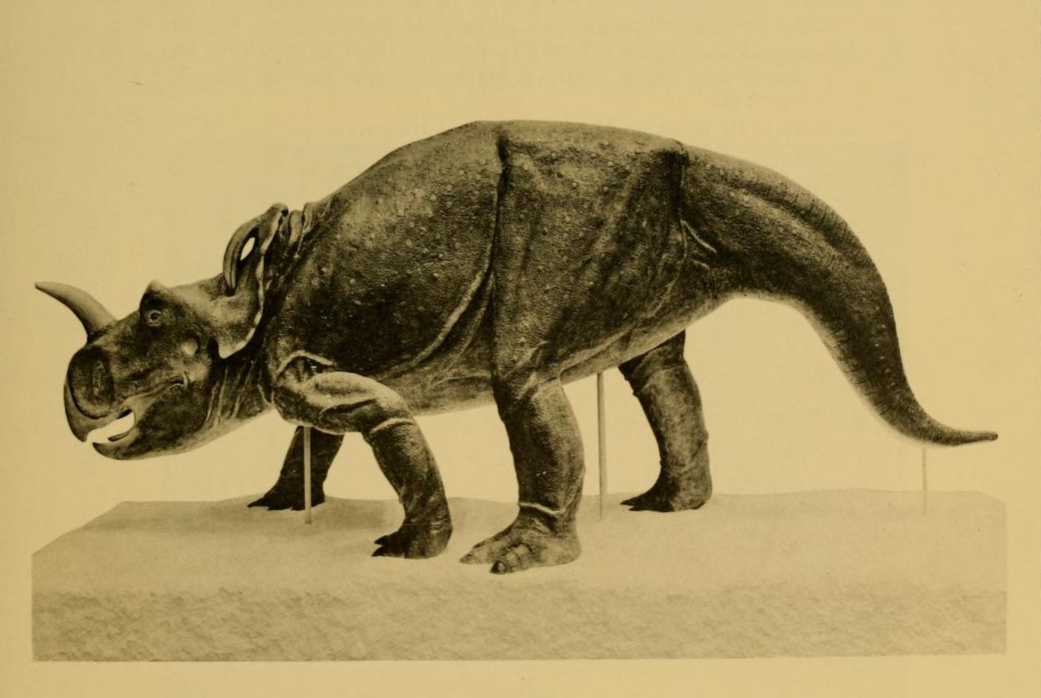

The life-reconstruction side of Centrosaurus, as figured in Lull 1933.

For the fleshed-out portion of the mount, Lull directed the artist to match the musculature and skin texture of iguanas and alligators. A loggerhead turtle was referenced for the mouth and beak. Lull chose to give the small processes on the lower edges of the frill a horny sheath, rather than the fleshy look popularized by Charles Knight. Overall, the life restoration is on the lean side compared to our modern understanding of ceratopsians, but many details—including the digitigrade fingers and forelimb posture—have held up well.

Next time, we’ll look at how historic specimens like Brontosaurus, Stegosaurus, and Deinonychus might be modernized for the new version of the hall.

References

Lull, R.S. 1930. Skeleton of Camarasaurus lentus recently mounted at Yale. American Journal of Science 19:105:1-5.

Lull, R.S. 1910. Stegosaurus ungulatus Marsh, recently mounted at the Peabody Museum of Yale University. American Journal of Science 30:180:361-377.

Lull, R.S. 1933. A Revision of the Ceratopsia or Horned Dinosaurs. New Haven, CT: Tuttle, Morehouse, and Taylor Co.

Lull, R.S. and Wright, N.E. 1942. Hadrosaurian Dinosaurs of North America. New York, NY: Geological Society of America.

Marsh, O.C. 1872. Notice on a new species of Hadrosaurus. American Journal of Science 3:16:301.

Marsh, O.C. 1890. Additional characters of the Ceratopsidae, with notice of new Cretaceous dinosaurs. American Journal of Science 39:233:418-426.

3 Comments

Filed under dinosaurs, exhibits, museums, ornithopods, sauropods, YPM

April 22, 2018 · 5:50 pm

One Year to Deep Time

When the fossil halls at the National Museum of Natural History closed for renovation in 2014, five years seemed like an interminable amount of time to wait for the reopening. But the NMNH crew has been hard at work, and suddenly the June 2019 debut of the new National Fossil Hall is almost in sight. I’ve mostly avoided reporting on each and every bit of information pertaining to the new exhibit, but as we approach the one-year-to-opening milestone the drip is likely to become a deluge. That means that this is probably a good time to do a round-up of everything that has been officially revealed about the new exhibit up to this point.

The East Wing Restored

The original architectural grandeur is back. Images from of the Smithsonian Institution Archives and the Washington Post.

The building that is now NMNH opened in 1910. Its granite-heavy, Beaux Arts construction was a departure from the Victorian style of the first United States National Museum, but it looked right at home with the other federal buildings around the National Mall. As originally designed, the building resembled a squat “T” from above, with three large wings (facing east, north, and west) extending from a central rotunda. The east wing — a vast space with bay windows, intricate plaster detailing, and a skylight three stories up — has always housed fossil displays. Over the course of the 20th century, however, the once spacious hall was repeatedly carved into smaller sections. Windows and architectural flourishes were covered up, and by the time the last round of renovations was completed in 1985 the east wing had become cramped and gloomy.

A major part of the current renovation has been returning the space to its original glory. Grunley Construction spent two years restoring and recreating the east wing’s 1910 architecture, as well as updating infrastructure and improving the space’s energy efficiency. Most of this process was visible via webcam. Last November, the Washington Post provided some stunning floor-level photos of the restored hall. Wide open and filled with natural light, the renovated hall is glorious to behold, even without the fossils.

A Story of Environmental Change

Many exhibits and books about paleontology portray the evolution of life as though it occurred in a vacuum. In fact, the evolution of animals and plants is primarily driven by environmental upheaval — changing climate, shifting geography, and so forth. Sometimes this relationship goes the other way, and keystone organisms (such as grass in the Neogene or humans in the present day) drastically change the world around them. Environmental change over time is at the heart of the National Fossil Hall’s story. It’s worth quoting the official theme statement in full:

Visitors to the Museum will be able to explore how life, environments, and ecosystems have interacted to form and change our planet over billions of years. By discovering and harnessing the tools and methods paleobiologists use to study fossils, visitors will gain a deeper understanding of how the world works.

The distant past affects all of us today and will continue to do so in the future. How will climate change impact the natural world and our daily lives? How can we make informed choices about our ecosystems as individuals and as a species? How can we all become informed citizens of a changing planet?

These themes are reflected by the physical layout of the exhibit, which is chronological but not strictly proportional. Specimens are clustered onto islands situated throughout the open floorplan, each representing North America at a particular point in time. While anchored by a few charismatic mounts, the islands also include all manner of small animals, invertebrates, and plants that were part of that environment. In this way, each island shows a complete ecosystem that existed at a particular time. Moving among these displays, visitors should get a sense of how phenomena like climate change and faunal interchange can completely transform an ecosystem over millions of years.

During the development process, curators and exhibit specialists agreed that the hall should not be an encyclopedia of past life. Instead, everything ties back to main story. Big, showy specimens like dinosaurs are contextualized as products of environmental change. Meanwhile, fossils that visitors might otherwise overlook but are critical to our understanding of ecological change over time, like pollen grains or leaves, are literally and figuratively pedestaled to emphasize their importance.

The Nation’s T. rex

The Nation’s T. rex, temporarily assembled in the Research Casting International workshop. Image by Great Big Story.

The centerpiece of the National Fossil Hall is a real Tyrannosaurus rex skeleton — the first real T. rex (as opposed to a cast) the Smithsonian has ever displayed. The specimen in question has been known as the “Wankel Rex” since it was discovered by avocational fossil hunter Kathy Wankel in 1988. It has been held in trust at Bozeman, Montana’s Museum of the Rockies, but since it came from Army Corps of Engineers land it is technically owned by the U.S. federal government. Although several casts of the Wankel Rex are on display around the world, the original fossils have never before been assembled into a standing mount. That’s changing now that the fossils have been transferred to the Smithsonian.

Curator Matt Carrano designed a deliriously cool pose, with the Tyrannosaurus poised as though prying the head off of a prone Triceratops. NMNH is visited by eight million people every year, so the Wankel Rex (now the Nation’s T. rex) will soon be the most viewed T. rex skeleton in the world. The Nation’s T. rex story has been covered by the Washington Post, NPR, National Geographic, and Smithsonian Magazine, among many others.

Poses that Show Behavior

The remounted mammoth demonstrates plausible behavior. Left image by the author, right image from Smithsonian Magazine.

Historically, mounted fossil skeletons were most often given anatomically neutral poses. This was a structural engineering necessity as much as it was a curatorial preference. However, modern technology has made it possible to safely display casts and even real skeletons in surprisingly dynamic poses. At many museums, this has usually manifested as mounted skeletons fighting or simply roaring at each other. In contrast, the NMNH team has endeavored to create dynamic mounts that show a greater variety of interesting behavior evidenced by the fossil record. For example, the remounted mammoth (shared during a talk by NMNH Director Kirk Johnson) is pushing its tusks along the ground, as if clearing snow off the grass. The Allosaurus (headless in the right image) is crouching next to a nest mound. Even the aforementioned T. rex and Triceratops scene is inspired by real research into T. rex feeding mechanics.

The Anthropocene

Most exhibits about the history of life close at some point in the past, but the National Fossil Hall continues the story into the present day. We are in the midst of an extinction event of our own making, and anthropogenic climate change, habitat destruction, and invasive species are as dangerous as any asteroid. During our very limited time on Earth, humans have altered the climate, the rate of erosion, and the acidity of oceans. Whether or not you think adopting “Anthropocene” as a formal geologic unit is reasonable, we have inarguably changed the planet in geologically measurable ways.

Curator Scott Wing discussed his approach to interpreting the age of humans in a Geological Society of America talk and in an Earth Matters blog post. The key is to make it clear that in spite of our destructive potential, humans have the power to mitigate and manage the consequences of altering the world around us. The exhibit will show visitors how they can take responsibility for humanity’s collective legacy.

Marsh Dinosaurs Re-imagined

An updated Stegosaurus replaces the 2004 cast, which replaced the original 1913 mount. Images from the Smithsonian Institution Archives and Kirk Johnson on twitter.

The new Edmontosaurus cast replaces the original mount, which had gone unmodified since 1904. Images by NMNH Paleobiology and Will S.

Most of the dinosaur skeletons exhibited at NMNH were assembled before 1920. Originally excavated by O.C. Marsh’s crews in the 19th century, these specimens have gone on to lead second lives on display, and have been seen by generations of visitors. Nevertheless, time has taken its toll. Some mounts have been rendered out-of-date by new discoveries, while others have gradually deteriorated due to fluctuating temperature and humidity, not to mention constant vibration from passing crowds. Before the fossil halls closed in 2014, NMNH preparators had already dismantled three historic dinosaurs (Triceratops, Stegosaurus, and Camptosaurus) and replaced them with updated casts. Returning these fossils to the collections ensures their continued safety, while also giving paleontologists a chance to study them for the first time in decades.

The renovation has been an opportunity to give other at-risk specimens the same treatment. It was especially important to get the real Ceratosaurus, Edmontosaurus, and Thescelosaurus skeletons off the exhibit floor because these are all holotypes — the original specimens that were used to define the species. Set in plaster on the exhibit walls, these important skeletons were virtually inaccessible. And as the preparators discovered when they removed them, they had not even been fully extracted from the rock they were found in. The real fossils are now available for research, while casts with lively poses and up-to-date anatomy will take their place on display (before anyone panics, the new exhibit will still feature several real dinosaur skeletons).

The Pocahontas Mine

As reported by the Bluefield Daily Telegraph, a Smithsonian crew of paleobotanists, geologists, and exhibits specialists visited the historic Pocahontas Exhibition Mine last November. This coal mine near Pocahontas, Virginia operated from 1882 to 1938, when ceased production and became a tourist attraction. The Smithsonian crew took photographs, video, and silicon molds of the mine’s walls, which are covered with Carboniferous-era plant impressions. A reconstruction of the fossiliferous mine will anchor the Carboniferous section of the exhibit.

Treasures from the Collection

A near-perfect Ophiacodon from Texas. Photo via the NMNH Department of Paleobiology.

A typical natural history museum has less than one percent of its collection on display at any time, and NMNH is no exception. In addition to introducing brand-new specimens and updating old ones, the renovation is an opportunity to bring a variety of never-before-displayed objects from the collections to the display floor. Of the hundreds of specimens earmarked for display, I can only highlight a few. There’s the historic cast of the plesiosaur Rhomaleosaurus, which has been in the collection since 1895 but never displayed. There’s the skull of the tusked whale Odobenocetops, which preparator Michelle Pinsdorf profiled in a webcast last year. Carrano showed NPR’s Adam Cole a sauropod osteoderm, collected decades ago but only identified recently. And then there’s the near-perfect Ophiacodon pictured above, collected in 1988 by Arnie Lewis and Nicholas Hotton. I remember this guy from my intern days, when it was referred to as “sleeping beauty.”

Research Casting International will start installing the large skeletons this summer, and then the countdown to opening day begins in earnest. Here’s wishing the NMNH team all the best as their years of work finally comes to fruition!

7 Comments

Filed under dinosaurs, exhibits, Extinct Monsters, fossil mounts, mammals, museums, NMNH, ornithopods, theropods, thyreophorans

September 30, 2016 · 9:20 am

The National Fossil Hall Rejects

In April 2014, the paleontology exhibits at the National Museum of Natural History closed for a wall-to-wall renovation. The re-imagined National Fossil Hall will reopen in 2019. We are now approaching the halfway point of this journey, which seems like a fine time to say farewell to some of the more charismatic specimens that are being rotated off display.

In comparison to the old exhibit, the new version will be influenced by a less-is-more design philosophy. While there will not be quite as many individual specimens on display, those that are included will be more visible and will be explored in more detail. This combined with the significant number of new specimens being added means that many old mainstays had to be cut from the roster. Cuts occur for a variety of reasons, including eliminating redundancy, preserving specimens that were not faring well in the open-air exhibit space, and making specimens that have been behind glass for decades available to a new generation of researchers. Retired specimens are of course not going far – they have been relocated to the collections where students and scientists can study them as needed.

Stegomastodon (USNM 10707)

The Stegomastodon in 2014. Photo by the author.

The young male Stegomastodon is the largest single specimen that is being retired from the NMNH fossil halls. James Gidley and Kirk Bryan collected this skeleton in the San Pedro Valley of Arizona, during the same 1921 collecting trip that produced the museum’s Glyptotherium (which will be returning). While the genus Stegomastodon was erected in 1912, Gidley referred his specimen to a new species, S. arizonae, due to its more “progressive” physiology and slightly younger age. By 1925, the skeleton was mounted and on display in the Hall of Extinct Monsters. While the original mount used the real fossil tusks, these were eventually replaced with facsimiles.

There are at least two reasons the Stegomastodon will not be returning in 2019. First, there are already two big elephants on display: the mammoth and the mastodon. Elephants take up a lot of space, and a third proboscidean offers diminishing returns when compared to the amount of floor space it requires. More importantly, the Stegomastodon is a holotype specimen, and the exhibit team elected to remove most of these important specimens from the public halls. This is both to keep them safe from the damaging effects of vibration, humidity, and fluctuating temperature, as well as to make them more accessible to researchers.

Paramylodon (USNM V 15164)

Collections staff wheel Paramylodon out of the exhibit hall. Source

During the 1960s, Assistant Curator Clayton Ray oversaw the construction of the short-lived Quaternary Hall, which was reworked into the Hall of Ice Age Mammals. This meant creating a number of brand-new mounts, including several animals from the Rancho La Brea Formation in Los Angeles County. La Brea fossils are not found articulated, but as a jumble of individual elements preserved in asphalt. The Los Angeles Natural History Museum provided NMNH with an assortment of these bones, which preparator Leroy Glenn assembled into two dire wolves, a saber-toothed cat, and the ~~sheep~~ cow-sized sloth Paramylodon.

Paramylodon is another cut for the sake of eliminating redundancy: the colossal Eremotherium completely overshadows this more modestly-sized sloth. This mount also needed some TLC. For aesthetic reasons, the Paramylodon was given an internal armature, which involves drilling holes through each of the bones. Last year, preparator Alan Zdinak took on the task of disassembling and conserving these damaged fossils with assistance from Michelle Pinsdorf.

Zygorhiza (USNM PAL 537887)

Zygorhiza cast in the Life in the Ancient Seas gallery. Source

When the Life in the Ancient Seas gallery opened in 1990, it featured a historic Basilosaurus skeleton that had been on display since the 1890s. This ancestral whale was relocated to the Ocean Hall in 2008, and a cast of the smaller whale Zygorhiza took its place in Life in the Ancient Seas. Since there is now an extensive whale evolution exhibit in Ocean Hall, this subject will not be a major part of the new paleontology exhibit. Both Zygorhiza and the dolphin Eurhinodelphis will have to go.

After the old fossil halls closed, Smithsonian affiliate Mark Uhen managed to acquire the retired Zygorhiza mount for George Mason University, where he is a professor. The whale is now on display in the Exploratory Hall atrium, suspended 30 feet in the air.

Tapirs, Horses, and Oreodonts

The tapir Hyrachyus and the mini-horse Orohippus. Photo by the author.

The last two major renovations of the NMNH fossil exhibits occurred when mammal specialists were in charge of the Paleobiology Department, and as a result the halls ended up with a lot of Cenozoic mammal mounts (at least 50, by my count). Virtually every major group was covered, often several times over. This menagerie has been culled for the new hall, which will focus on specimens that best tell the story of Earth’s changing climate during the past 66 million years. Casualties include the trio of Hagerman’s horses, the smaller horse Orohippus, the tapirs Hyrachyus and Helaletes, the ruminant Hypertragulus, and the oreodont Merycoidodon. Interestingly, the classic hall’s three large rhinos are sticking around, and will in fact be joined by at least one more.

Brachyceratops (USNM 7953)

Brachyceratops/Rubeosaurus. Photo by NMNH Department of Paleobiology.

The pocket-sized ceratopsian historically called Brachyceratops has been on display at NMNH since 1922. Discovered in 1913 by Curator of Fossil Reptiles Charles Gilmore, this animal is one of only a few dinosaur species excavated, prepared, described, and exhibited entirely in-house at NMNH. Assembled by Norman Boss, the mount is actually a composite of five individuals Gilmore found together in northeast Montana.

Gilmore described Brachyceratops as an unusually small but full-grown ceratopsian, but in 1997 Scott Sampson and colleagues confirmed that all five specimens were juveniles. Unfortunately, the fossils lack many diagnostic features that could link them to an adult form. According to Andrew McDonald, the most likely candidate is Rubeosaurus. Nevertheless, without the ability to recognize other growth stages of the same species, the name Brachyceratops is unusable and is generally regarded as a nomen dubium.

It is not difficult to surmise why the Brachyceratops would end up near the bottom of the list of specimens for the new exhibit. It is not especially large or impressive, it doesn’t have a recognizable name (or any proper name at all, really) and it doesn’t tell a critical story about evolution or deep time. With limited space available and new specimens being prepped for display, little Brachyceratops will have to go.

Corythosaurus (USNM V 15493)

Corythosaurus as seen in the 1960s. Photo courtesy of the Smithsonian Institution Archives.

In 1910, Barnum Brown of the American Museum of Natural History launched the first of several expeditions to the Red Deer River region of Alberta. Seeing Brown’s success and under pressure to prevent the Americans from hauling away so much of their natural heritage, the Canadian Geological Survey assembled their own team of fossil collectors in 1912. This group was headed by independent fossil hunter Charles Sternberg, who was accompanied by his sons George, Levi, and Charles Jr. Having secured several articulated and nearly complete dinosaur skeletons, Brown’s team moved on five years later. The Sternbergs, however, remained at the Red Deer River, and continued to collect specimens for the Royal Ontario Museum.

In 1933, Levi discovered a well-preserved back end of a Corythosaurus, complete with impressions of its pebbly skin. The Smithsonian purchased this specimen in 1937 for use at the Texas Centennial Exposition. It eventually found its way into the permanent paleontology exhibit at NMNH. Unfortunately, the half-Corythosaurus ended up crowded behind more eye-catching displays and was often overlooked by visitors. In the new exhibit, it will have to move aside to make room for new Cretaceous dinosaurs.

Assorted Dinosaur Skulls

Original skull of Hatcher the Triceratops, one of many dinosaur skulls coming off exhibit. Photo by the author.

In addition to complete dinosaur mounts, the old NMNH fossil halls included several dinosaur skulls, ranging from the giant cast of the AMNH Tyrannosaurus to the miniscule Bagaceratops. Most of these standalone skulls have been cut, although a few (Diplodocus, Camarasaurus, and Centrosaurus) are sticking around, to say nothing of new specimens being added. Other retirees in this category include the original skulls of Nedoceratops (labeled Diceratops), Triceratops, Edmontosaurus, and Corythosaurus, as well as casts of Protoceratops, Pachycephalosaurus, Stegoceras, Psittacosaurus, and Prenocephalae.

As usual, the reasons these specimens are coming off exhibit are varied. The Nedoceratops skull is a one-of-a-kind holotype that has been the subject of a great deal of conflicting research over its identity and relevance to Maastrichtian ceratopsian diversity. Putting this specimen back in the hands of scientists should help clarify what this bizarre creature actually is. Meanwhile, many of the other skulls (e.g. Protoceratops, Psittacosaurus, and Prenocephalae) come from Asian taxa. In the new fossil hall, the Mesozoic displays will primarily focus on a few well-known ecosystems in North America.

Dolichorynchops (USNM PAL 419645)

Dolichorhynchops from Montana, mounted by Arnie Lewis. Photo by Chip Clark.

Dolichorhynchops in the Life in the Ancient Seas exhibit. Photo by NMNH Department of Paleobiology.

The NMNH Dolichorhynchops is a relatively new mount. It was collected in Montana in 1977 and acquired in a trade with the Denver Museum of Nature and Science. Arnie Lewis prepared it for display in 1987. 24 years later, “Dolly” is being retired to the collections. This is not due to anything wrong with the specimen, but to make way for a bigger, cooler short-necked plesiosaur. NMNH purchased a cast of Rhomaleosaurus from the Henry Ward Natural Science Establishment in the 1890s, but it has not been on exhibit since at least 1910. This cast, which is based on an original at the National Museum of Ireland (and which is identical to the cast at the London Natural History Museum) will make its first public appearance in over a century in the new National Fossil Hall. Sorry, Dolichorhynchops.

This has hardly been a comprehensive list – just a few examples that illustrate the decisions that are made when planning a large-scale exhibit. If you are curious about other favorites from the old halls, you can check on their fate by searching the Department of Paleobiology’s online database. Just go to Search by Field and enter “Deep Time” under Collection Name to see most of the specimens earmarked for the new exhibit.

References

Gidley, J.W. 1925. Fossil Proboscidea and Edentata of the San Pedro Valley, Arizona. Shorter Contributions to General Geology (USGS). Professional Paper 140-B, pp. 83-95.

Gilmore, C.W. 1922. The Smallest Known Horned Dinosaur, Brachyceratops. Proceedings of the US National Museum 63:2424.

Gilmore, C.W. 1941. A History of the Division of Vertebrate Paleontology in the United States National Museum. Proceedings of the United States National Museum Vol. 90.

Gilmore, C.W. 1946. Notes on Recently Mounted Reptile Fossil Skeletons in the United States National Museum. Proceedings of the United States National Museum Vol. 96 No. 3196.

McDonald, A.T. 2011. A Subadult Specimen of Rubeosaurus ovatus(Dinosauria: Ceratopsidae), with Observations on other Ceratopsids from the Two Medicine Formation. PLoS ONE 6:8.

Sampson, S.D., Ryan, M.J. and Tanke, D.H. 1997. Craniofacial Ontogeny in Centrosaurine Dinosaurs: Taxonomic and Behavioral Implications. Zoological Journal of the Linnean Society 12:1:293-337.

7 Comments

Filed under collections, dinosaurs, exhibits, Extinct Monsters, fossil mounts, history of science, mammals, marginocephalians, museums, NMNH, ornithopods, reptiles, theropods

Tagged as exhibits, fossil mounts, museums, natural history museums, NMNH, paleontology, Smithsonian

February 26, 2016 · 12:16 pm

AMNH dinosaurs in vintage cartoons

Today I happened upon a pair of wonderful vintage cartoons that simply must be shared. I found them in Edwin Colbert’s The Dinosaur Book: The Ruling Reptiles and Their Relatives, digitized here. The cartoons originally appeared in the New Yorker and the Saturday Evening Post, respectively.

Original caption: “And here is my first dinosaur – makes me feel like a kid again every time I look at it.”

The cartoons plainly depict the “Brontosaurus” and “Trachodon” (now labeled Apatosaurus and Anatotitan) skeletons at the American Museum of Natural History, and as representations of these mounts, they aren’t bad. At the time of the cartoons’ initial publications in 1939 and 1940, these and dozens of other fossil mounts had been on display at AMNH for over 30 years. They were iconic New York attractions, and the museum had rightly earned itself a reputation as the place to see dinosaurs.

Original caption: “I don’t mind you boosting your home state, Conroy, but stop telling the children that’s a California jack rabbit!”

Perhaps it’s unwise to interpret these images too literally, but I can’t help but wonder which version of the AMNH fossil halls the cartoonists intended to depict. Since 1922, the famous mounts had been housed in Henry Osborn’s Great Hall of Dinosaurs, but during the 1930s the dinosaur exhibits underwent a significant expansion. The dinosaurs were reshuffled into two halls, one representing the Jurassic and one the Cretaceous.

The Great Hall of Dinosaurs as it appeared in the 1920s. Image courtesy of the AMNH Research Library.

The new Jurassic Hall opened around 1940. Photo from Dingus 1996.

The inclusion of a Stegosaurus with “Brontosaurus” and the ceratopsian skulls behind the “Trachodon” lead me to believe these are illustrations of the renovated halls, which would have been brand new at the time. But again, it’s just as likely that the cartoonists only intended to capture the general feel of these famous exhibits.

References

Colbert, E.H. 1945. The Dinosaur Book: The Ruling Reptiles and Their Relatives, 2nd Edition. New York, NY: The American Museum of Natural History/McGraw-Hill Book Company, Inc.

Dingus, L. (1996). Next of Kin: Great Fossils at the American Museum of Natural History. New York, NY: Rizzoli International Publications, Inc.

1 Comment

Filed under AMNH, dinosaurs, exhibits, fossil mounts, museums, ornithopods, paleoart, sauropods

Tagged as amnh, dinosaurs, fossil mounts, museum history, museums

December 11, 2015 · 2:25 pm

Was the Hawkins Hadrosaurus real?

Hadrosaurus at the Academy of Natural Sciences. Photo from Weishampel and Young 1996.

In the “Claosaurus” post earlier this week, I temporarily(?) lost my mind when I said that the Hadrosaurus Benjamin Waterhouse Hawkins assembled for the Academy of Natural Sciences was 100% plaster reconstruction. Thanks to John Sime, among others, for pointing out that this was incorrect. As usual, the truth is more complicated, and therefore much more interesting.

The Hadrosaurus project began when Hakwins was commissioned to create a series of life-sized prehistoric animals for display in New York City’s central park, under the direction of Joseph Leidy. The exhibition was cancelled when Hawkins’ on-site workshop was burned down by vandals, but he was able to salvage the Hadrosaurus skeleton for display at the Academy in Philadelphia. This reconstruction was based on little more than two limbs and a handful of vertebrae. It was a well-reasoned attempt – and it drew huge crowds – but it wasn’t long before new dinosaur finds rendered it obsolete. In 1901, Charles Beecher wrote that the Hadrosaurus mount had “long since ceased to have any value or interest except as a historical attempt.” No longer considered informative, the original Hadrosaurus was probably dismantled around the start of the 20th century. At least three plaster copies were distributed to other museums, but these were also discarded long ago.

There is no question that Hawkins’ reconstruction doesn’t reflect our present understanding of this animal, so in that sense it isn’t “real.” Still, it is of historic interest whether Hawkins used the handful of original Hadrosaurus fossils in the mount itself, or whether the entire display was fabricated. There is precedent for both posibilities: John Peale mounted an original mastodon skeleton in 1802, but the Smithsonian’s first attempts at Basilosaurus and Triceratops (1895 and 1900 respectively) included no real fossils. This question was actually up for discussion as early as 1926. Responding to an inquiry from Peabody Museum paleontologist Richard Lull, Academy of Natural Sciences curator Witmer Stone wrote that the Hadrosaurus mount was a complete reproduction. When Lull followed up with William Matthew of the American Museum of Natural History, however, Matthew recalled that “some or all of the original bones were used.”

The two letters reproduced below are in the collection of the Department of Vertebrate Paleontology Archives at the Peabody Museum of Natural History, and are shared with permission.

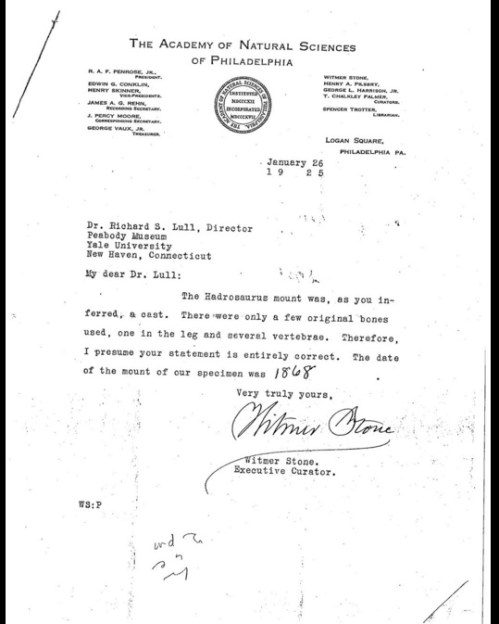

Letter from Witmer Stone to Richard Lull, January 26, 1925. Courtesy of the Dept. of Vertebrate Paleontology Archives, Yale Peabody Museum of Natural History.

Letter from William Matthew to Richard Lull, January 30, 1925. Courtesy of the Dept. of Vertebrate Paleontology Archives, Yale Peabody Museum of Natural History.

A look at the original Hadrosaurus fossils, now cataloged as ANSP 10005, suggests that Matthew was correct. At least a couple of the bones appear to bear drill holes, a tell-tale sign that they were once fastened to an armature. Likewise, in a photograph of the mount in Hawkins workshop, the elements that were actually recovered – the left leg*, part of the pelvis, and a scattering of vertebrae – appear to be darker in color. This suggests that these are the real bones, and the rest of the skeleton is plaster…unless Hawkins painted plaster casts to demonstrate which elements had been found.

*Note that the image below has been flipped horizontally for some reason. In the original, the left side of the skeleton is facing the camera.

Hadrosaurus in Hawkins’ studio. Image from Carpenter et al. 1994.

The answer to this little conundrum can be found in the official guidebook to the Academy of Natural Sciences, published in 1879. Apparently there were two versions of Hadrosaurus on display. The original 1868 mount did include the original fossils, but when the museum moved to a larger facility in 1876 (in part because of the spike in visitation caused by the Hadrosaurus exhibit) the mount was remade. The bones were not faring well in open air and were rapidly deteriorating, so they were retired to the collections and replaced with casts. Anyone who saw the Hadrosaurus before 1876 saw the fossils incorporated into the mount, and anyone who visited later saw a complete facsimile. Still, I’m pretty sure William Matthew was remembering incorrectly. He was born in 1871, so unless he was carefully observing the composition of the mount at age 5, he shouldn’t have seen the original version!

References

Beecher, C.E. 1901. The reconstruction of a Cretaceous dinosaur, Claosaurus annectens Marsh. Transactions of the Connecticut Academy of Arts and Sciences. Vol. 11, pp. 311-324.

Carpenter, K., Madsen, J.H. and Lewis, L. 1994. Mounting of Fossil Vertebrate Skeletons. Vertebrate Paleontological Techniques, Vol. 1. Cambridge, UK: Cambridge University Press.

Prieto-Márquez, A., Weishampel D.B., and Horner J.R. 2006. The dinosaur Hadrosaurus foulkii, from the Campanian of the East Coast of North America, with a re-evaluation of the genus. Acta Palaeontologica Polonica. Vol. 51, pp. 77-98.

Ruschenberger, W.S.W. and Tryon, G.W. 1879. Guide to the Museum of the Academy of Natural Sciences of Philadelphia. Philadelphia, PA: Academy of Natural Sciences.

Weishampel. D.B. and Young, L. 1996. Dinosaurs of the East Coast. Baltimore, MD: The Johns Hopkins University Press.

Beecher’s “Claosaurus”

Readers are likely aware that the Hadrosaurus Benjamin Waterhouse Hawkins created for the Academy of Natural Sciences was the first mounted dinosaur skeleton. It is less widely known, however, that this Hadrosaurus was a plaster facsimile, ~~which included none of the actual fossils that inspired it~~. (edit: not quite, see comments). The title of first dinosaur mount composed of original fossils belongs to the Belgian Iguanodon assembled by Louis Dollo in 1891 (I should probably write about this eventually, but Fernanda Castano has an excellent account at Letters From Gondwana). So what was the first real fossil dinosaur mount on this side of the Atlantic? Glad you asked – that would be none other than the 1901 Edmontosaurus at the Peabody Museum of Natural History.

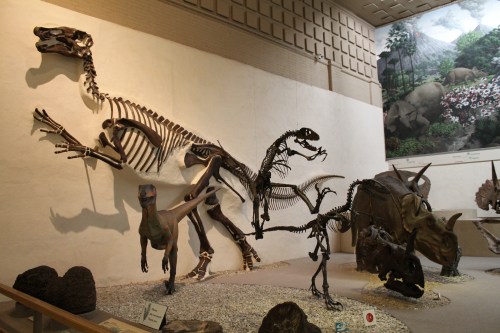

The PMNH Edmontosaurus with Deinonychus and Centrosaurus. Photo by the author.

There are plenty of Edmontosaurus skeletons on display today, but the Yale mount is noteworthy because of its remarkably modern appearance. While the Hawkins Hadrosaurus and Dollo Iguanodon were upright tail-draggers, the Edmontosaurus could be mistaken for a mount constructed in the last quarter century. Its raised tail, horizontal posture, and energetic gait all reflect current thinking about dinosaur posture and locomotion. And yet, it was built at the turn of the century, back when paleontologists supposedly all thought of dinosaurs as lethargic lizards.

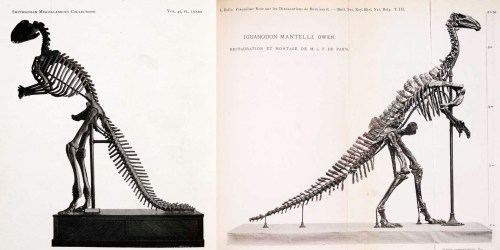

The Hawkins Hadrosarus and Dollo Iguanodon. Photos from

The Hawkins Hadrosarus and Dollo Iguanodon. Images from Paper Dinosaurs.

The scientist behind this mount was Charles Beecher. Born in Pennsylvania, Beecher studied at the University of Michigan before taking an Assistant of Paleontology position at Yale in 1888. He completed his PhD under Marsh, who apparently thought highly of him (and Marsh didn’t think highly of many people). Although his preferred research subjects were Paleozoic invertebrates, Beecher could be counted on to help prepare his mentor’s vast collection of dinosaur fossils, when needed. When Marsh died in 1899, Beecher succeeded him as the head of the Peabody Museum, and set himself the task of mounting one of the institution’s best dinosaur specimens for display.

Beecher selected YPM VP 2182 as the Peabody Museum’s first fossil mount because it was nearly complete and mostly articulated. Known to Marsh and Beecher as “Claosaurus” annectens*, this Edmontosaurus skeleton was collected in Wyoming by John Bell Hatcher (because of course it was). Beecher and assisting preparator Hugh Gibb attempted to preserve the fossils within their original matrix as much as possible. Since the specimen was somewhat laterally compressed, Beecher kept the right side mostly in situ and built up the left in high relief. The head and neck were technically never removed from their matrix block, but since the head was found curved under the body it had to be rotated into its life position. All told, only the right ribs, the corocoids, the final two-thirds of the tail, and some of the vertebral processes were reconstructed. No attempt was made to restore the ossified dorsal tendons, which were poorly preserved on this specimen.

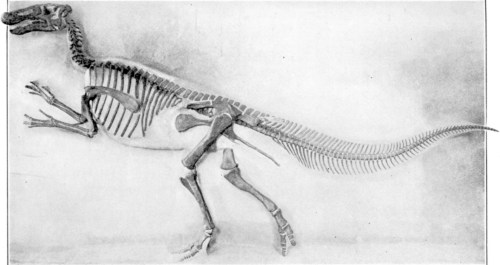

Beecher’s Edmontosaurus, ca. 1917. Source

The complete mount is 13 feet tall and 29 feet long, its tail extending past the edge of the 27 foot slab. For a few years, it was the largest fossil mount ever built. The slab itself is made up of original matrix blocks sealed together with a manufactured surface created from plaster, resin, and ground Laramie Formation sandstone. It was assembled in four pieces secured to wooden frames. These were designed to be separated and moved with relative ease, although PMNH staff have yet to try.

According to Beecher, he imbued the Edmontosaurus with its lively pose in order to preserve the in situ orientation of the pelvis and left femur. It is worth quoting Beecher’s 1901 description of the mount in full:

“It is intended that this huge specimen should convey to the observer the impression of the rapid rush of a Mesozoic brute. The head is thrown up and turned outward. The jaws are slightly separated. The forearms are balancing the sway of the shoulders. The left hind leg is at the end of the forward stride and bears the entire weight of the animal. The right foot has completed a step and has just left the ground preparatory to the forward swing. The ponderous and powerful tail is lifted free and doubly curved so as to balance the weight and compensate for the swaying of the body and legs. The whole expression is one of action and the spectator with little effort may endow this creature with many of its living attributes.”

Much like the AMNH Gorgosaurus, the Yale Edmontosaurus demonstrates that early 20th century paleontologists’ supposed aversion to energetic and agile dinosaurs has been grossly overstated. Beecher saw Edmontosaurus as a powerful, active animal, and actually criticized the earlier reconstructions by Hawkins and Dollo. He correctly pointed out that the back-swept ischia of ornithopod dinosaurs would not allow room for the drooping tails they had reconstructed, and also noted that fossilized dinosaur trackways never show the mark of a dragging tail.

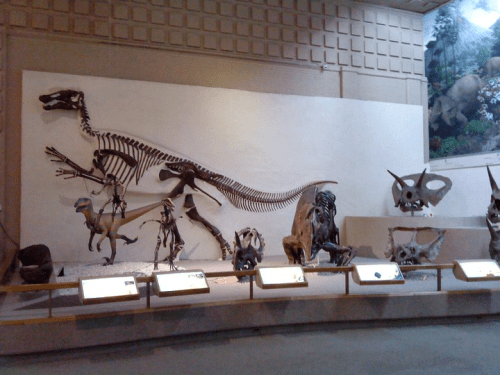

Edmontosaurus as presently displayed in the Great Hall of Dinosaurs. Source

Beecher died suddenly in January of 1904, and the Edmontosaurus display ended up being one of his final professional accomplishments. Despite the relative dearth of dinosaur material available at the time, Beecher’s careful and impartial study of the available evidence allowed him to reconstruct this animal in a way that is still considered accurate 114 years later. Beecher’s work shows us that old research isn’t necessarily outmoded. Good science can come from any age and any source, if one only takes the time to look.

*Today, the genus Claosaurus is reserved for Claosaurus agilis from Kansas. The referred species annectens has since been placed in Thespesius, Trachodon, Anatosaurus, and now Edmontosaurus.

References

Beecher, C.E. 1901. The reconstruction of a Cretaceous dinosaur, Claosaurus annectens Marsh. Transactions of the Connecticut Academy of Arts and Sciences. Vol. 11, pp. 311-324.

Jackson, R.T. 1904. Charles Emerson Beecher. The American Naturalist. Vol 38, No. 450.

Marsh, Othniel C. 1892. Restorations of Claosaurus and Ceratosaurus. American Journal of Science. Vol. 44, pp. 343-349.

5 Comments

Filed under dinosaurs, fossil mounts, history of science, museums, ornithopods, PMNH, reptiles

Tagged as Charles Beecher, Edmontosaurus, fossil mounts, history of science, museums, natural history museums, paleontology

Category Archives: ornithopods

Brachiosaurus altithorax (P 25107)

“Apatosaurus” sp. (P 25112 and P 27021)

Triceratops horridus (P 12003)

Gorgosaurus libratus (PR 2211)

Lambeosaurus lambei (PR 380)

Daspletosaurus torosus (PR 308)

Parasaurolophus cyrtocristatus (P 27393)

References

The setting

Dueling quarries

Playing nice

You get a rhino block, and you get a rhino block…

References

Diplodocus carnegii (Dippy)

Triceratops sp.

Iguanodon bernissartensis

Hypsilophodon foxii

Mantellisaurus atherfieldensis

Scolosaurus cutleri

Massospondylus carinatus

Gallimimus bullatus

Baryonyx walkerii

Stegosaurus stenops (Sophie)

References

Camarasaurus and Camptosaurus

Claosaurus

Centrosaurus

References

The East Wing Restored

A Story of Environmental Change

The Nation’s T. rex

Poses that Show Behavior

The Anthropocene

Marsh Dinosaurs Re-imagined

The Pocahontas Mine

Treasures from the Collection

Stegomastodon (USNM 10707)

Paramylodon (USNM V 15164)

Zygorhiza (USNM PAL 537887)

Tapirs, Horses, and Oreodonts

Brachyceratops (USNM 7953)

Corythosaurus (USNM V 15493)

Assorted Dinosaur Skulls

Dolichorynchops (USNM PAL 419645)

References

References

References

References

Recent Comments

Top Posts & Pages

Category Cloud

Blogroll
