Jurassic Museum

Teaser image for Jurassic Park 5, via Colin Trevorrow/Universal.

Well, this is a doozy. Jurassic World director Colin Trevorrow tweeted the above image this afternoon, which is a teaser for the upcoming “Jurassic World 2” (Jurassic Park 5?). The film doesn’t have an official title yet, but apparently they started shooting on February 23rd and are aiming for a June 2018 release.

The Victorian-style museum gallery piqued my interest immediately. Since this is the first promotional image they put out, it stands to reason that natural history exhibits might play a significant role in the film. Is this a flashback to a formative experience for a main character? Or is it a brief moment of quiet before Chris Pratt smashes through the wall riding a mutant cyborg T. rex? Both are probably equally likely at this point, but there are still a few things worth noting.

First, this scene is plainly referencing the century-old association in the public consciousness between museums and dinosaurs. When we think of museums, we think of dinosaurs, and vice versa. This is no accident – as I’ve discussed here on many occasions, dinosaurs (and their mounted skeletons in particular) played a central role in defining the modern museum at the start of the 20th century. The first Jurassic Park film played with this iconography in its classic finale, when the flesh-and-blood Tyrannosaurus and Velociraptor literally obliterate a pair of skeletal mounts. In that case, the implication was clear: the living, cloned dinosaurs represent new technology and scientific progress smashing the old and obsolete incarnations of paleontology to bits.

Y’know, this scene. (Universal).

Is “Jurassic World 2” pushing a similar message, casting the iconography of a museum hall as a past doomed to extinction? Maybe. The Victorian design elements – wood paneled walls, skeletons on open pedestals in orderly rows – distinctly evoke museums of the past. You’d be hard pressed to find an exhibit that looks like that today. Perhaps the filmmakers are using the Victorian iconography to enhance the impression of dusty obsolescence. Or maybe the baby boomer producers are recreating the sort of museum they remember from their childhood. The primary counterpoint is that the mise en scène on display here is stately and impressive. That dramatically-lit ceratopsian skull looks formidable, not at all like something shrinking back into history.

Let’s talk about that ceratopsian skull for a hot sec. The other skeletons are (perhaps incredibly) reasonably accurate representations of identifiable dinosaurs. We’ve got a tyrannosaur, a hadrosaur, and a dromaeosaur on the left, and what looks like Euoplocephalus, Kosmoceratops, and Protoceratops on the right. The skull in the center stands out as the sole fanciful element in the scene. It looks like an oversized, exaggerated Triceratops, with extra-long, tapering brow horns and a frill studded with spikes. Jurassic World established fantasy dinosaurs as being part of the Jurassic Park universe, so it’s possible this represents some kind of new, fictitious hybrid.

Charles Knight’s 1897 Agathaumas painting. Source

However, I was immediately reminded of Charles Knight’s classic take on Agathaumas. E.D. Cope named Agathaumas sylvestris in 1872, based on a pelvis and a number of vertebrae discovered in southwest Wyoming. It was technically the first ceratopsian dinosaur to be named and described, but without a skull, Cope had little idea of what the animal looked like (today, it’s considered a synonym of Triceratops).  Charles Knight depicted imagined the animal as a sort of spiny uber-Triceratops. His striking reconstruction was copied almost exactly for the Agathaumas that appeared in 1925’s The Lost World.

Triceratops and Agathaumas models, sculpted by Marcel Delgado and animated by Willis O’Brien. Source

It would be beyond awesome if the dramatic ceratopsian skull was meant to be a throwback or nod to the mythic Agathaumas. Or perhaps I’m reading too much in to it.

1 Comment

Filed under dinosaurs, exhibits, fossil mounts, marginocephalians, movies

Meeting the Titanosaur

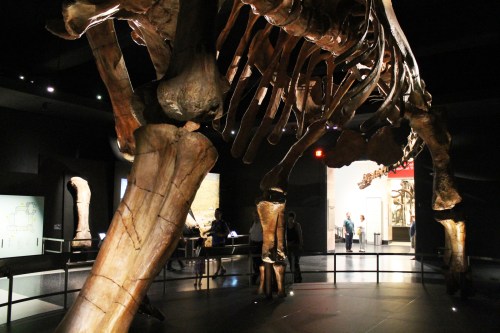

It be big

The titanosaur doesn’t photograph well. It must be experienced. Photo by the author.

On January 15, the American Museum of Natural History unveiled the first new fossil mount to be added to their paleontology halls in 20 years. It is the reconstructed skeleton of an as-yet-unnamed titanosaur, an immense sauropod dinosaur that lived in Argentina during the mid-Cretaceous. The titanosaur is probably the most hyped-up fossil mount since Sue, at least in the United States (Sophie the Stegosaurus in the U.K. and Tristan the Tyrannosaurus in Germany received similar attention). This merits some discussion. The AMNH public relations staff pulled no punches in selling the titanosaur as a must-see exhibit. Huge advertisements appeared on buses and buildings around New York, including in Times Square. The legendary David Attenborough hosted a television special on the discovery of the fossils. Countless local and national news outlets were invited to the titanosaur’s unveiling earlier this year. But is this dinosaur really the find of the century?

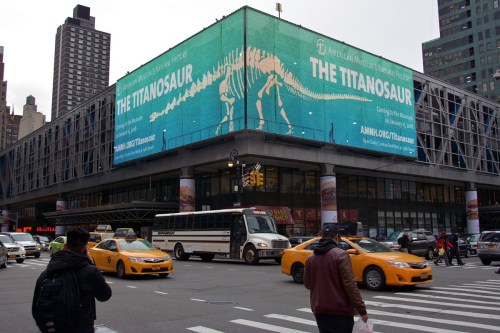

Titanosaur was even advertised in times square. Source

One of the many titanosaur ads that showed up around New York City this past winter. Source

It depends. The titanosaur represents a species new to science, but it has not yet been formally published. The fossils were recovered in 2014 by José Luis Carballido and Diego Pol, paleontologists with the Egidio Feruglio Paleontology Museum (the AMNH connection is that Pol was a doctoral student of Paleontology Division Chair Mark Norell). Bones from at least six individuals of the same species were found, together representing 70% of the skeleton. However, AMNH staff have mostly avoided calling this animal the biggest dinosaur ever.

Indeed, declaring any dinosaur species to be the largest is a fool’s errand. We’ve known for some time that South American titanosaurs, as a group, are probably the biggest land animals that ever lived. Unfortunately, these giants are typically represented by only a few isolated bones. For an animal to become fossilized, it needs to be buried shortly after death. But it takes a lot more dirt to cover a large animal than a small one. A flood or landslide big enough to completely cover a sauropod over a hundred feet long would be an exceedingly rare event. More often, these animals were picked apart by scavengers for some time before a few of the more durable bones were buried and fossilized. For example, Argentinosaurus is known from about ten percent of the skeleton, and Puertasaurus is known from just four vertebrae. Paleontologists can use better-known relatives to produce reasonable reconstructions from even these limited remains, but any length estimate is a ballpark figure. Even among related animals, proportions can vary significantly. Consider, for example, the very long tail of a green iguana as compared to the stubby tail of a Galapagos land iguana. Carballido and Pol’s find stands out among other titanosaurs because two-thirds of the skeleton is known. hen the description is published, it will undoubtedly shed new light on the skeletal anatomy of this group. Still, the missing parts mostly come from the neck and tail, which will probably preclude a precise estimate of the animal’s total length.

*This level of completeness is not entirely unprecedented. Dreadnoughtus, described in 2014, is also about 70% complete.

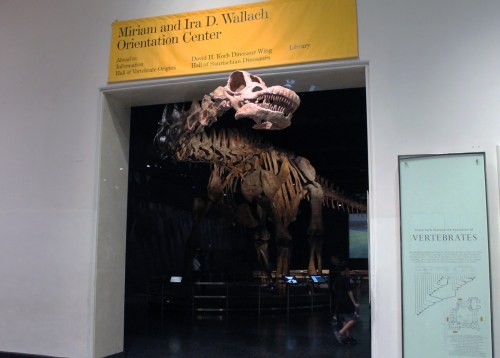

he peekin

The titanosaur’s head and neck extend out of the room and into the corridor. Photo by the author.

We can’t say the AMNH titanosaur is absolutely the biggest known dinosaur, but what about the mount? At 122 feet, the reconstructed skeleton prepared by Research Casting International dwarfs AMNH’s resident sauropod, the 82-foot apatosaurine. It’s also a fair bit longer than the museum’s brain-breakingly huge blue whale model. AMNH is not the first museum to display a titanosaur, however. The Royal Ontario Museum has a 110-foot Futalognkosaurus, which the AMNH mount handily beats. But the new titanosaur is essentially the same size as the 123-foot Argentinosaurus at the Fernbank Museum of Natural History (duplicates also exist in Europe and South America). The difference, as mentioned, is that not a lot about Argentinosaurus is actually known, and the mount is almost entirely a sculpted reconstruction. By comparison, the AMNH titanosaur is largely composed of 3-D printed components based on scans of original fossils. “The biggest reconstructed skeleton of a reasonably well-known dinosaur” isn’t the catchiest headline, though.

Suffice it so say that on paper, the AMNH titanosaur isn’t a revolution for dinosaur science. When I went to see it last weekend, I expected to see a typical example of a well-studied group of dinosaurs. I was not prepared.

the bastard

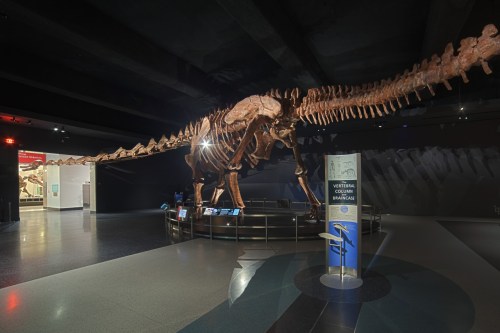

The closest I can find to a full-body photo of the titanosaur. Source

This bastard is BIG. I could go through a whole series of superlatives, but it’s impossible to describe the experience of sharing space with this magnificent skeleton. You cannot comprehend what a 122-foot dinosaur really is until you’ve experienced it. It helps that the titanosaur occupies a smallish, low-ceilinged room (a century ago, this was the infamous Hall of the Age of Man). It also helps that there are no long lines of sight into this space. You turn a corner and you are quite abruptly in the titanosaur’s presence. Regardless, the marketing line that was ubiquitous earlier this year – “everything else got a whole lot smaller” – rings unsettlingly true. Compared to the titanosaur, the mammoth and mastodon across the hall look like pipsqueaks. Even the AMNH blue whale, which usually requires a double-take, became a little easier to take in.

I’m no stranger to sauropods. I teach people about them at work all the time. But seeing the titanosaur in person was a revelation, and something I strongly recommend to anyone interested in the natural world. The titanosaur may not be the most important dinosaur discovery of our generation, but by giving it corporeal presence, AMNH created an incredible symbol. This is life at its limits, an embodiment of the incredible things the tetrapod body plan can do.

P.S.: If you’re concerned about the fate of the juvenile Barosaurus model that used to occupy this space, worry not. It now lives at the Cleveland Museum of Natural History, and will be on display at least through October of this year.

4 Comments

Filed under AMNH, dinosaurs, fossil mounts, museums, sauropods

AMNH dinosaurs in vintage cartoons

Today I happened upon a pair of wonderful vintage cartoons that simply must be shared. I found them in Edwin Colbert’s The Dinosaur Book: The Ruling Reptiles and Their Relatives, digitized here. The cartoons originally appeared in the New Yorker and the Saturday Evening Post, respectively.

original caption

Original caption: “And here is my first dinosaur – makes me feel like a kid again every time I look at it.”

The cartoons plainly depict the “Brontosaurus” and “Trachodon” (now labeled Apatosaurus and Anatotitan) skeletons at the American Museum of Natural History, and as representations of these mounts, they aren’t bad. At the time of the cartoons’ initial publications in 1939 and 1940, these and dozens of other fossil mounts had been on display at AMNH for over 30 years. They were iconic New York attractions, and the museum had rightly earned itself a reputation as the place to see dinosaurs.

original caption

Original caption: “I don’t mind you boosting your home state, Conroy, but stop telling the children that’s a California jack rabbit!”

Perhaps it’s unwise to interpret these images too literally, but I can’t help but wonder which version of the AMNH fossil halls the cartoonists intended to depict. Since 1922, the famous mounts had been housed in Henry Osborn’s Great Hall of Dinosaurs, but during the 1930s the dinosaur exhibits underwent a significant expansion. The dinosaurs were reshuffled into two halls, one representing the Jurassic and one the Cretaceous.

osborn era

The Great Hall of Dinosaurs as it appeared in the 1920s. Image courtesy of the AMNH Research Library.

brown's jurassic hall

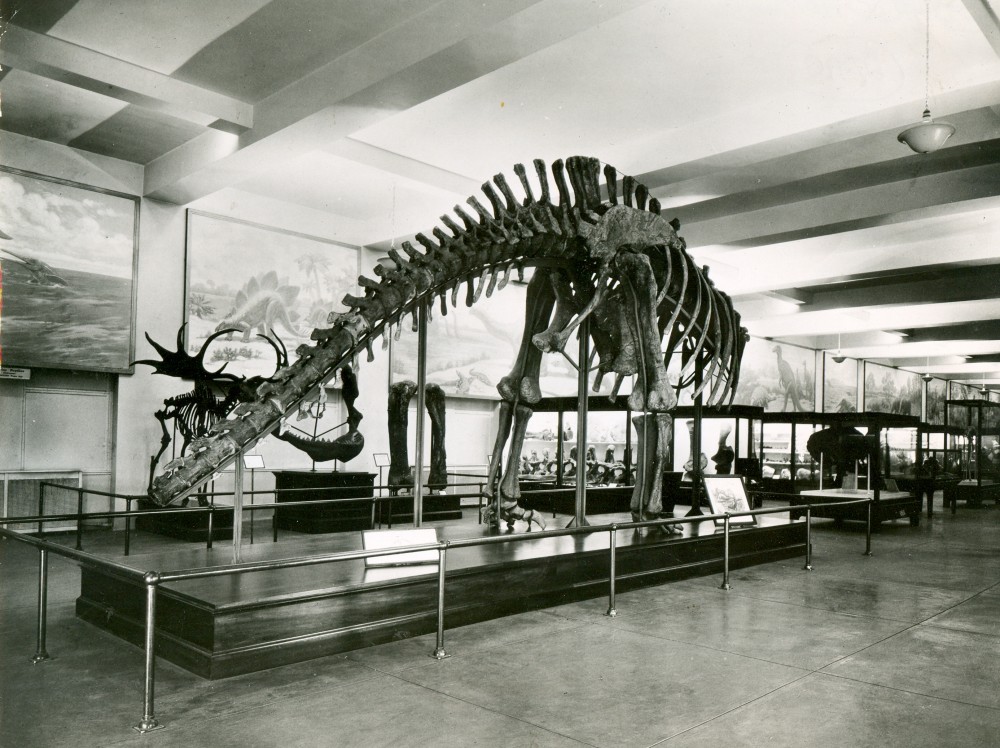

The new Jurassic Hall opened around 1940. Photo from Dingus 1996.

The inclusion of a Stegosaurus with “Brontosaurus” and the ceratopsian skulls behind the “Trachodon” lead me to believe these are illustrations of the renovated halls, which would have been brand new at the time. But again, it’s just as likely that the cartoonists only intended to capture the general feel of these famous exhibits.

References

Colbert, E.H. 1945. The Dinosaur Book: The Ruling Reptiles and Their Relatives, 2nd Edition. New York, NY: The American Museum of Natural History/McGraw-Hill Book Company, Inc.

Dingus, L. (1996). Next of Kin: Great Fossils at the American Museum of Natural History. New York, NY: Rizzoli International Publications, Inc.

Leave a comment

Filed under AMNH, dinosaurs, exhibits, fossil mounts, museums, ornithopods, paleoart, sauropods

History of the Field Museum Fossil Halls – Part 1

The Field Museum of Natural History (variously known as the Field Colombian Museum and the Chicago Museum of Natural History) was founded by wealthy philanthropists in the wake of the 1893 World’s Columbian Exposition in Chicago. It has since expanded into one of the largest natural history museums in the world, a destination attraction and a hub for ongoing research. What follows is a summary of the historic paleontology exhibits at the Field Museum – when and how they expanded and changed, when major specimens were added, and who spearheaded these efforts.

As with my previous overviews of fossil exhibits at AMNH and NMNH, please note that I will not be discussing field expeditions or research by museum staff in any detail, as these topics are well-explored elsewhere (see Paul Brinkman’s extensive work, for starters). My primary interest here is in the public-facing exhibits, and the people who created them.

Phase I: The Field Columbian Museum

The World’s Columbian Exposition was held in Chicago in 1893, principally as a celebration of the 400th anniversary of Christopher Columbus’s arrival in the Americas. Lasting six months and attended by 27 million people, the Exposition was monumental in size and scope. Years before it even opened, there was talk about using the Exposition displays to seed a new museum, which would rival the great natural history museums in New York and Washington, DC. Eager to establish an enduring cultural attraction in their city, a group of wealthy Chicagoans – including Marshall Field, who donated an unprecedented $1 million – contributed the necessary funds to buy up many of the Exposition’s exhibits and found the Field Columbian Museum.

As the largest and most elegant of the 200 temporary buildings constructed for the Exposition, the Palace of Fine Arts became the Field Museum’s home. Frederick Skiff served as the first director, acting as an intermediary between the board of trustees and the new curatorial staff, who would manage the collections and assemble the exhibits. Skiff hired geologist Oliver Farrington to curate the earth science collections, a diverse mix of minerals, gems, meteorites, fossils, and fabricated displays purchased from the Henry Ward Natural Sciences Establishment. With thousands of specimens to catalog, Farrington was soon overwhelmed. He repeatedly asked Skiff to hire a paleontology specialist to support him, but the board (composed of the businessmen who founded the museum) was uninterested in paying more salaries or acquiring new specimens.

fossils

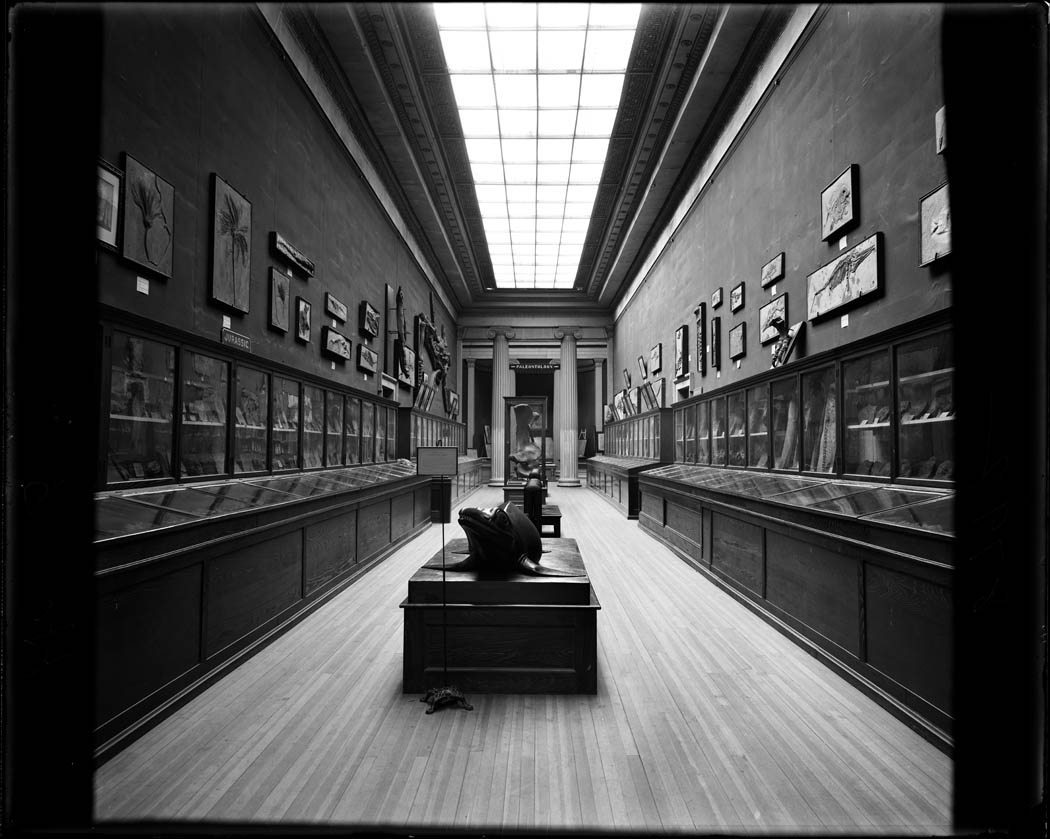

The model icthyosaur and thousands of fossils in cases were among the specimens purchased from the Ward Natural Sciences Establishment after the World’s Columbian Exposition. Image courtesy of the Field Museum Photo Archives.

When the Field Columbian Museum opened on June 2nd, 1894, most the 5,000-piece fossil collection was on public display. In addition to the cases of as-yet unlabled invertebrates, plants, and other small fossils, the exhibit included several large reconstructions of prehistoric animals. As of opening day, a life reconstruction of a mammoth stood in the west court, while skeletons of MegalocerosScistopleurum, MegatheriumHadrosaurus, and a uintathere stood in halls 35 and 36. With the possible exception of the Megaloceros, these were all replicas of mounts from other institutions. The Hadrosaurus in particular was woefully outdated, considered by contemporary scholars to have “long since ceased to have any value except as a historic attempt” (Beecher 1901).

After completing his catalog of the earth science collections in 1896, Farrington continued to lobby for a dedicated staff paleontologist. The board paid no attention until 1897, when the American Museum of Natural History and the Carnegie Museum of Natural History announced ambitious plans to scour the western interior for fossils. So began what Brinkman calls the second Jurassic dinosaur rush – a frenzied race among leading American museums to be the first to collect and mount a sauropod dinosaur. Not wanting to be left behind by peer institutions, the trustees approved the conditional hiring of Elmer Riggs to collect dinosaurs for the Field Museum.

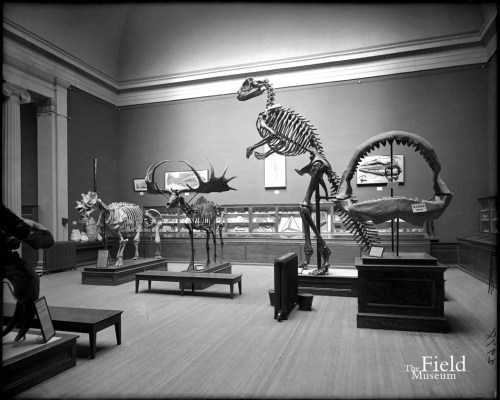

Hadrosaurus cast on display at the Field Museum. Field Museum Photo Archives.

Hadrosaurus stands among other fossil casts in the Field Columbian Museum. Image courtesy of the Field Museum Photo Archives.

Riggs and his classmate Barnum Brown cut their teeth in paleontology while studying under Samuel Wendell Williston at the University of Kansas. The two young men took part in an AMNH collecting expedition in 1896. Brown, who had quit his studies to work for the museum, quickly became a favorite at AMNH. Concerned about his own future, Riggs sent an unsolicited letter to Frederick Skiff, offering his skills as a fossil collector and preparator. The letter crossed Skiff’s desk at an opportune time, and in the summer of 1898 Riggs was paid a small stipend for a trial collecting trip with Farrington. The expedition was a success, and Riggs was hired as an Assistant Curator before the end of the year.

Riggs’ first three collecting seasons with the Field Museum were enormously successful. In addition to the holotype of Brachiosaurus, at the time the largest known dinosaur, Riggs collected a very-well-preserved back end of an Apatosaurus near Fruita, Colorado. Nevertheless, AMNH won the sauropod race when they completed their composite “Brontosaurus” mount in 1905. The Carnegie Museum had a Diplodocus on display in 1907, and was busy cranking out casts for European heads of state. While Riggs’ Apatosaurus was more complete than any single specimen the other museums had recovered, it was still only half a dinosaur. Riggs and Farrington repeatedly lobbied the board for funding to find more sauropod material with which to complete the skeleton, but the trustees had moved on to other things.

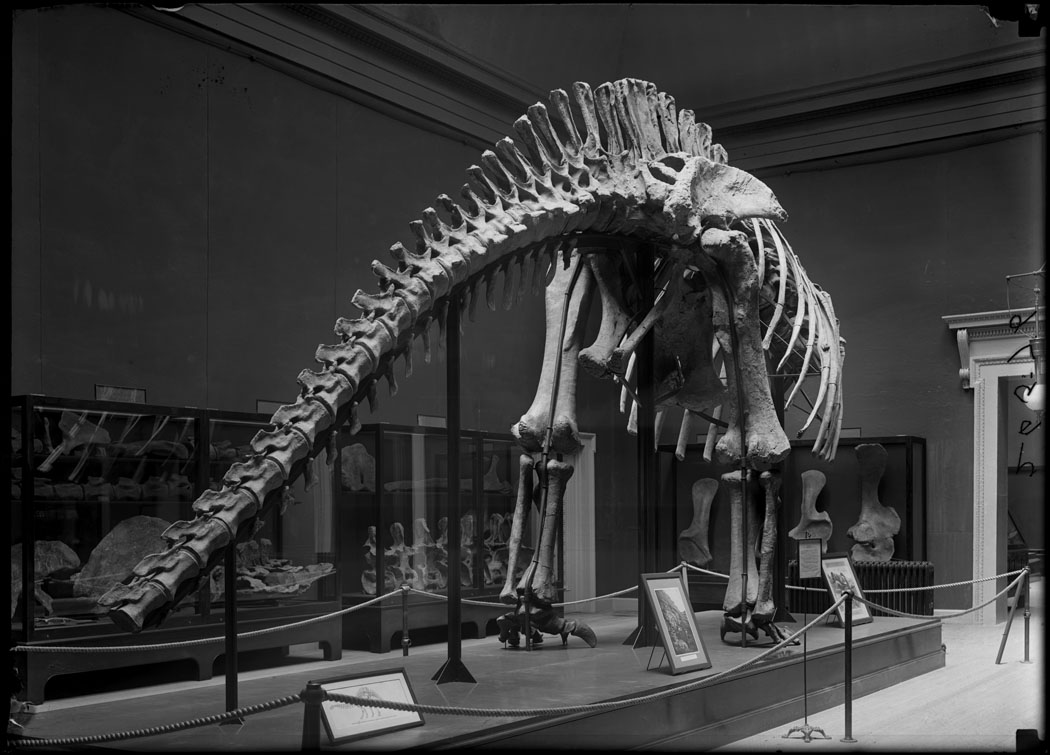

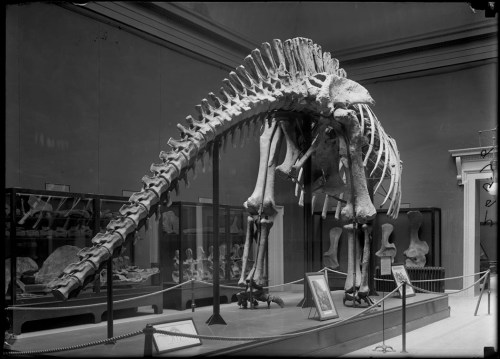

Riggs' Apatosaurus mount stood unfinished from 1908-1958. Photo from the Field Museum Library.

Riggs’ Apatosaurus mount stood unfinished from 1908-1958. Image courtesy of the Field Museum Photo Archives.

Plans were afoot to move the Field Museum to a new lakefront campus. However, when legal issues halted progress on the new building, Riggs was granted permission to mount the partial Apatosaurus in hall 35. The plaster casts previously displayed in this space were discarded, and unfortunately are now lost to history. A gas furnace was installed on the museum grounds, which Riggs and his small team used to shape massive steel I-beams for use in the armature. The teetering sauropod hindquarters was unveiled in 1908, but if Riggs hoped that the museum administrators would want to complete the mount once they saw how absurd the incomplete skeleton looked, he was out of luck.

Indeed, the years that followed were among the most frustrating of Riggs’ career. He received no funding to collect fossils after 1910, and could only look on enviously at the thriving paleontology research and exhibit programs at AMNH and the Carnegie Museum. The institutions in New York and Pittsburgh were headed by paleontologists, and bankrolled by wealthy fossil enthusiasts like J.P. Morgan and Andrew Carnegie. By comparison, the Field Museum was controlled by trustees with seemingly little interest in paleontology. Already paid less than the museum’s other curators, Farrington and Riggs were left with meager resources and little to do until the 1920s.

Phase II: Halls 37 and 38

The Palace of Fine Arts was intended to last six months, and after ten years it was in dire shape. The roof leaked constantly, putting exhibits and collections in danger, and fences had to be placed around the perimeter to protect visitors from falling brick. Before his death in 1906, Marshall Field worked with architect Daniel Burnham to design a new home for the museum. It took years to settle disputes over where to place the building, but ground was eventually broken off Lake Shore Drive in 1915. Completed in 1920, the new Field Museum of Natural History was a gleaming marble fortress, decorated inside and out with intricate neoclassical reliefs and statuary.

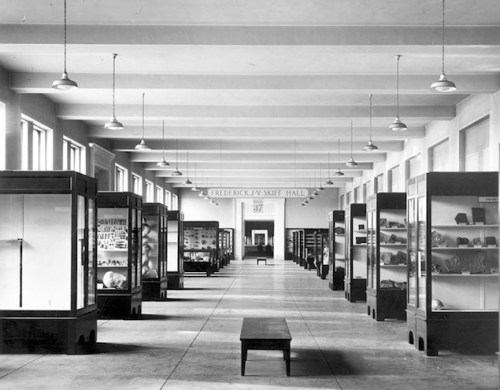

hall 37

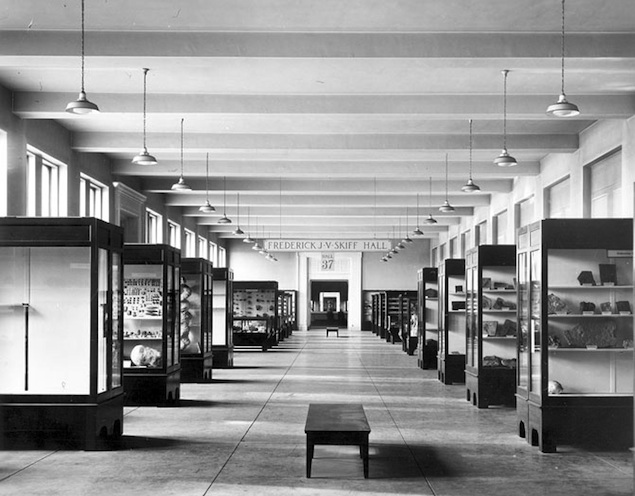

In the spirit of a classic cabinet of curiosity, some of the cases in Hall 37 contained over a thousand specimens apiece. Source

Exhibits and collections were transported by rail car, often without being removed from their display cases. Earth science exhibits found a new home on the west side of the upper level. Hall 37, an east-west facing gallery accessible directly off the west mezzanine, housed invertebrate and plant fossils. Hall 38, running north to south against the far west side of the building, contained vertebrate fossils. Although it was colloquially known as the “dinosaur hall”, this space never contained many dinosaurs. In the 1920s, the only dinosaurs to be found were the half-Apatosaurus, a Triceratops skull, an articulated “Morosaurus” (Camarasaurus) limb, and parts of Brachiosaurus. The bulk of the specimens on display were Cenozoic mammals, including horses, rhinos, camelids, and a mammoth and mastodon. There was also a life-sized “coal swamp” diorama behind a glass barrier, with large model insects suspended in flight.

This comparatively modest exhibit was expanded significantly between 1922 and 1927, when Elmer Riggs was once again able to collect fossils in the field. Thanks to a bequest from Marshall Field’s grandson, Riggs traveled to Alberta, Argentina, and Bolivia, securing many unique specimens along the way. These included several new species, like the marsupial cat Thylacosmilus and the predatory bird Andalgalornis. A colossal Megatherium Riggs recovered in Argentina was immediately mounted for display, and became one of the most memorable elements of Hall 38.

hall 38

A postcard of the partial Apatosaurus at the south end of Hall 38. Image courtesy of the Field Museum Photo Archives.

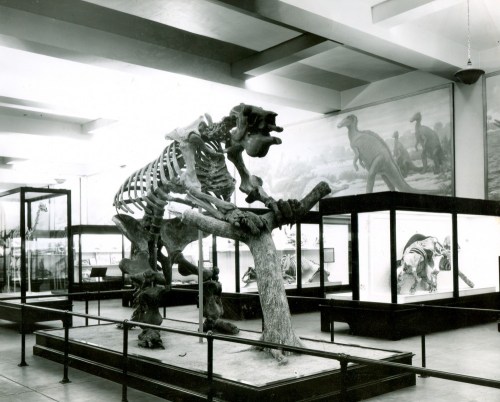

A postcard of the north end of Hall 38, featuring a South American giant sloth and other Cenozoic mammals.

Megatherium at the north end of Hall 38. Image courtesy of the Field Museum Photo Archives.

Hall 38 also boasted a spectacular set of murals by Charles Knight. The undisputed master of paleontological reconstructions and wildlife art, Knight had a long working relationship with Henry Osborn, president of AMNH. Osborn had commissioned Knight to create many large and small paintings for his museum’s fossil exhibits, but the two frequently argued over Knight’s remuneration. For years, Osborn and Knight discussed a series of immense wall canvases illustrating the entire history of life. Osborn could never get the money together, however, and Knight refused to produce any concept sketches for fear that they would be turned over to a less-skilled artist. In 1926, the Field Museum’s board of trustees asked for a meeting with Knight about an identical project for their new fossil hall. The initial discussion did not go well, and Knight walked out when the trustees started making “suggestions” about the content, color, and composition of the proposed artwork. Knight was very talented, but also very particular. He gladly accepted anatomical expertise from scientists but would not suffer meddling with the artistic aspects of his work. Fortunately for both parties, Knight’s daughter/manager Lucy intervened, securing her father the biggest commission of his career.

Knight completed 28 murals for the Field Museum, the largest of them measuring 25 feet long and nine feet high. Subjects ranged from the Proterozoic primordial soup to an iconic standoff between Tyrannosaurus and Triceratops. These images were not only painstakingly researched reconstructions based on the latest fossil evidence, they were (and still are) gorgeous works of art in their own right. With Knight’s murals in place, the Field Museum finally had a world-class paleontology exhibit.

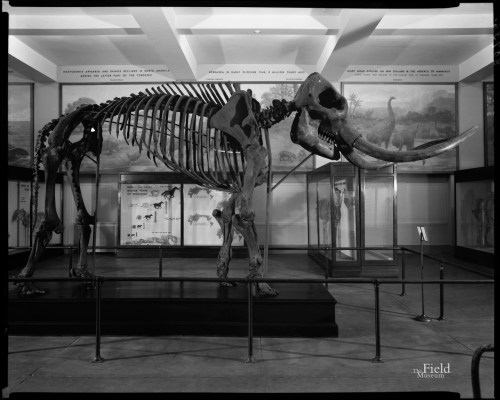

hall 38 mastodon

The mastodon in Hall 38, with fossil horses visible beyond. Image courtesy of the Field Museum Photo Archives.

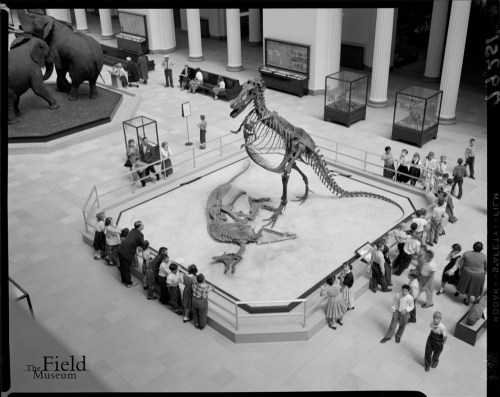

Gorgo in Stanley Field Hall. Photo courtesy of Field Museum Photo Archives.

Gorgosaurus” in the Stanley Field Hall. Photo courtesy of Field Museum Photo Archives.

Riggs retired in 1942, leaving paleontology at the Field Museum to the next generation, among them Eugene Richardson, Brian Patterson, and Orville Gilpin. In 1951, Richardson oversaw a thorough modernization of Hall 37. The number of specimens on display was drastically reduced, making room for more accessible explanations of the fossils and ten new dioramas of Paleozoic marine life. The resulting exhibit was one of the most comprehensive displays of fossil invertebrates in the world.

Although virtually no dinosaur research was done at the Field Museum between 1910 and the late 1990s, the 1950s saw the acquisition of two significant specimens for the benefit of the visiting public. In 1956, preparator Orville Gilpin assembled a Daspletosaurus (then called Gorgosaurus) for the central Stanley Field Hall. The skeleton was a surplus specimen from Barnum Brown’s years collecting along Alberta’s Red Deer River, and trustee Louis Ware spearheaded the effort to buy it from AMNH. Since the Daspletosaurus was acquired explicitly for display, Gilpin opted to skewer and otherwise permanently damage many of bones for the sake of an unobstructed, free-standing mount. In the mid 20th century, dinosaur fossils were thought of as display pieces first, and irreplaceable specimens second.

apatosaurus revised

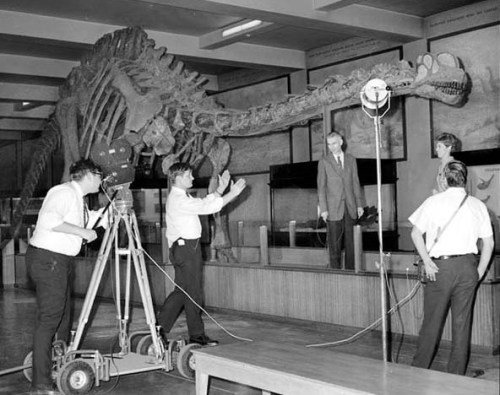

The newly-finished Apatosaurus serves as a backdrop for an educational video shoot. Source

Two years after installing the Daspletosaurus, Gilpin finally completed Riggs’ partial Apatosaurus in Hall 38. When Edward Holt announced that he had discovered the front half of a sauropod near Green River, Utah, the Field Museum purchased the rights to excavate and display the find. Gilpin added the new fossils to the existing mount without dismantling Riggs’ heavy-duty armature. Relabeled “Brontosaurus” and erroneously given a casted Camarasaurus skull, the refreshed sauropod debuted in April 1958 – half a century after Riggs started the project.

The next three decades saw occasional piecemeal additions to the fossil halls. For example, the University of Chicago donated its entire geology collection to the Field Museum in 1965. This included a unique assortment of Permian amphibians and synapsids from the red beds of central Texas, many of them holotypes. Field Museum preparators remounted several of these specimens and integrated them into the exhibits. Nevertheless, Hall 38 never received a complete overhaul, and by the late 1980s it was quite dated. Not only were the fossil mounts in stiff, tail-dragging poses, but the stilted label copy written by curators past did not meet modern expectations for natural history exhibits. Even the vibrant Charles Knight murals looked tired behind years of accumulated dust and dirt. In short, the Field Museum was long overdue for a total re-imaging of its paleontology displays.

Next time, we’ll take a look at the Field Museum’s fossil exhibits from the 1990s onward. Stay tuned!

References

Beecher, C.E. 1901. The reconstruction of a Cretaceous dinosaur, Claosaurus annectens Marsh. Transactions of the Connecticut Academy of Arts and Sciences. 11: 311-324.

Brinkman, P.D. 2000. Establishing Vertebrate Paleontology at Chicago’s Field Colombian Museum: 1893-1898. Archives of Natural History 27: 1: 81-114.

Brinkman, P.D. 2o10. The Second Jurassic Dinosaur Rush: Museums and Paleontology in America at the Turn of the 20th Century. Chicago, IL: The University of Chicago Press.

Chicago Natural History Museum Bulletin. (March 1956). 27: 3.

Gilpin, O.L. 1959. A Freestanding Mount of Gorgosaurus. Curator 2: 2: 162-168.

Glut, D.F. 2001. Remembering the Field Museum’s Hall 38. Jurassic Classics: A Collection of Saurian Essays and Mesozoic Musings. Jefferson, NC: McFarland.

Lelièvre, M A. 2006. Evolving Planet: Constructing the Culture of Science at Chicago’s Field Museum. Anthropologica 48: 2: 293-296.

Milner, R. 2012. Charles R. Knight: The Artist Who Saw Through Time. New York, NY: Abrams.

Tubitis, T.J. 2005. Revitalizing Life Over Time: A New Look for a Very Old Topic. In the Field 76: 2: 18.

Williams, P.M. 1968. The Burham Plan and the Field Museum. Bulletin of the Field Museum of Natural History 39: 5: 8-12.

Leave a comment

Filed under dinosaurs, exhibits, FMNH, fossil mounts, history of science, mammals, museums, reptiles, sauropods

Was the Hawkins Hadrosaurus real?

Photo from Weishampel and Young 1996.

Hadrosaurus at the Academy of Natural Sciences. Photo from Weishampel and Young 1996.

In the “Claosaurus” post earlier this week, I temporarily(?) lost my mind when I said that the Hadrosaurus Benjamin Waterhouse Hawkins assembled for the Academy of Natural Sciences was 100% plaster reconstruction. Thanks to John Sine, among others, for pointing out that this was incorrect. As usual, the truth is more complicated, and therefore much more interesting.

The Hadrosaurus project began when Hakwins was commissioned to create a series of life-sized prehistoric animals for display in New York City’s central park, under the direction of Joseph Leidy. The exhibition was cancelled when Hawkins’ on-site workshop was burned down by vandals, but he was able to salvage the Hadrosaurus skeleton for display at the Academy in Philadelphia. This reconstruction was based on little more than two limbs and a handful of vertebrae. It was a well-reasoned attempt – and it drew huge crowds – but it wasn’t long before new dinosaur finds rendered it obsolete. In 1901, Charles Beecher wrote that the Hadrosaurus mount had “long since ceased to have any value or interest except as a historical attempt.” No longer considered informative, the original Hadrosaurus was probably dismantled around the start of the 20th century. At least three plaster copies were distributed to other museums, but these were also discarded long ago.

There is no question that Hawkins’ reconstruction doesn’t reflect our present understanding of this animal, so in that sense it isn’t “real.” Still, it is of historic interest whether Hawkins used the handful of original Hadrosaurus fossils in the mount itself, or whether the entire display was fabricated. There is precedent for both posibilities: John Peale mounted an original mastodon skeleton in 1802, but the Smithsonian’s first attempts at Basilosaurus and Triceratops (1895 and 1900 respectively) included no real fossils. This question was actually up for discussion as early as 1926. Responding to an inquiry from Peabody Museum paleontologist Richard Lull, Academy of Natural Sciences curator Witmer Stone wrote that the Hadrosaurus mount was a complete reproduction. When Lull followed up with William Matthew of the American Museum of Natural History, however, Matthew recalled that “some or all of the original bones were used.”

The two letters reproduced below are in the collection of the Department of Vertebrate Paleontology Archives at the Peabody Museum of Natural History, and are shared with permission.

courtesy

Letter from Witmer Stone to Richard Lull, January 26, 1925. Courtesy of the Dept. of Vertebrate Paleontology Archives, Yale Peabody Museum of Natural History.

Courtesy

Letter from William Matthew to Richard Lull, January 30, 1925. Courtesy of the Dept. of Vertebrate Paleontology Archives, Yale Peabody Museum of Natural History.

A look at the original Hadrosaurus fossils, now cataloged as ANSP 10005, suggests that Matthew was correct. At least a couple of the bones appear to bear drill holes, a tell-tale sign that they were once fastened to an armature. Likewise, in a photograph of the mount in Hawkins workshop, the elements that were actually recovered – the left leg*, part of the pelvis, and a scattering of vertebrae – appear to be darker in color. This suggests that these are the real bones, and the rest of the skeleton is plaster…unless Hawkins painted plaster casts to demonstrate which elements had been found.

*Note that the image below has been flipped horizontally for some reason. In the original, the left side of the skeleton is facing the camera.

Hawkin's studio

Hadrosaurus in Hawkins’ studio. Image from Carpenter et al. 1994.

The answer to this little conundrum can be found in the official guidebook to the Academy of Natural Sciences, published in 1879. Apparently there were two versions of Hadrosaurus on display. The original 1868 mount did include the original fossils, but when the museum moved to a larger facility in 1876 (in part because of the spike in visitation caused by the Hadrosaurus exhibit) the mount was remade. The bones were not faring well in open air and were rapidly deteriorating, so they were retired to the collections and replaced with casts. Anyone who saw the Hadrosaurus before 1876 saw the fossils incorporated into the mount, and anyone who visited later saw a complete facsimile. Still, I’m pretty sure William Matthew was remembering incorrectly. He was born in 1871, so unless he was carefully observing the composition of the mount at age 5, he shouldn’t have seen the original version!

References

Beecher, C.E. 1901. The reconstruction of a Cretaceous dinosaur, Claosaurus annectens Marsh. Transactions of the Connecticut Academy of Arts and Sciences. Vol. 11, pp. 311-324.

Carpenter, K., Madsen, J.H. and Lewis, L. 1994. Mounting of Fossil Vertebrate Skeletons. Vertebrate Paleontological Techniques, Vol. 1. Cambridge, UK: Cambridge University Press.

Prieto-Márquez, A., Weishampel D.B., and Horner J.R. 2006. The dinosaur Hadrosaurus foulkii, from the Campanian of the East Coast of North America, with a re-evaluation of the genus. Acta Palaeontologica Polonica. Vol. 51, pp. 77-98.
Ruschenberger, W.S.W. and Tryon, G.W. 1879. Guide to the Museum of the Academy of Natural Sciences of Philadelphia. Philadelphia, PA: Academy of Natural Sciences.
Weishampel. D.B. and Young, L. 1996. Dinosaurs of the East Coast. Baltimore, MD: The Johns Hopkins University Press.

Leave a comment

Filed under dinosaurs, fossil mounts, history of science, museums, ornithopods

AMNH 5027 at 100

In December 1915, the American Museum of Natural History unveiled the very first mounted Tyrannosaurus rex skeleton, irrevocably cementing the image of the towering reptilian carnivore in the popular psyche. For a generation, AMNH was the only place in the world where one could see T. rex in person. Despite the tyrant king’s fame, old books emphasize the rarity of its fossils. The situation is very different today. In the last 30 years, the number of known Tyrannosaurus specimens has exploded. Once elusive, T. rex is now one of the best known meat-eating dinosaurs, and real and replica skeletons can be seen in museums around the world. The AMNH mount is no longer the only T. rex around, nor is it the biggest or most complete. It was, however, the first, and in a few weeks it will mark the 100th anniversary of its second life. Below is a partially recycled recap of this mount’s extraordinary journey.

Photo by the author.

AMNH 5027 in November 2015. Photo by the author.

The mount known as AMNH 5027 is actually a composite of material from two individuals. The first is the Tyrannosaurus rex holotype (originally AMNH 973, now CM 9380), which was discovered by Barnum Brown and Richard Lull during an AMNH expedition to Montana in 1902. The find consisted of little more than the pelvis, a single femur, one arm and shoulder, and fragmentary portions of the jaw and skull. Nevertheless, this was enough for AMNH director Henry Osborn to publish a brief description in 1905, as well as coin the species’ brilliantly evocative name. That same year, Adam Hermann prepared a plaster replica of the animal’s legs and pelvis, using Allosaurus fossils as reference when sculpting the missing lower legs and feet. This partial mount was initially displayed alongside the skeleton of a large ground bird, in order to accentuate the anatomical similarities.

Brown located a better Tyrannosaurus specimen in 1908. Apparently fearing poaching or scooping, Osborn wrote to Brown that he wished to “keep very quiet about this discovery, because I do not want to see a rush into the country where you are working.” After vanquishing many tons of horrific sandstone overburden, Brown returned to New York with what was at the time the most complete theropod specimen ever found. In addition to an “absolutely perfect” skull, the new find included most of the rib cage and spinal column, including the first half of the tail (Osborn 1916). Lowell Dingus would later describe this second specimen (the true AMNH 5027) as “a nasty old codger”, suffering from severe arthritis and possibly bone cancer. These pathologies were undoubtedly painful and probably debilitating.

Model of unrealized T. rex showdown mount from Osborn 1913.

Model of the unrealized T. rex showdown mount from Osborn 1913.

Osborn initially wanted to mount both Tyrannosaurus specimens facing off over a dead hadrosaur. He even commissioned E.S. Christman to sculpt wooden models which which to plan the scene (shown above). However, the structural limitations inherent to securing heavy fossils to a steel armature, as well as the inadequate amount of Tyrannosaurus fossils available, made such a sensational display impossible to achieve. Instead, the available fossils complemented one another remarkably well in the construction of a single mounted skeleton. Osborn noted this good fortune in 1916, but his statement that the two specimens were “exactly the same size” wasn’t quite accurate. The holotype is actually slightly larger and more robust than the 1908 specimen, and to this day the AMNH Tyrannosaurus mount has oversized legs.

The original Tyrannosaurus rex mount at the American Museum of Natural History. Photo from Dingus 1996.

The original Tyrannosaurus rex mount at AMNH. Note the original 1905 replica legs in the background. Photo from Dingus 1996.

Instead, Hermann’s team prepared a single Tyrannosaurus mount, combining the 1908 specimen with the reconstructed pelvis and legs based on the 1905 holotype. When the completed mount was unveiled in 1915, the media briefly lost their minds. In contemporary newspapers, the skeleton was called “the head of animal creation”, “the prize fighter of antiquity”, and “the absolute warlord of the earth”, among similarly hyperbolic proclamations. Even Osborn got in on the game, calling Tyrannosaurus “the most superb carnivorous mechanism among the terrestrial Vertebrata, in which raptorial destructive power and speed are combined.” With its tooth-laden jaws agape and a long, dragging lizard tail extending its length to over 40 feet, the Tyrannosaurus was akin to a mythical dragon, an impossible monster from a primordial world. This dragon, however, was real, albeit safely dead for 66 million years.

Image courtesy of the AMNH Archives.

T. rex in the Cretaceous Hall, 1960. Image courtesy of the AMNH Research Library.

The AMNH’s claim to the world’s only mounted Tyrannosaurus skeleton ended in 1941, when the holotype was sold to the Carnegie Museum of Natural History. The Pittsburgh museum’s hunch-backed reconstruction of the tyrant king was on display within a year. Although no longer the only T. rex on display, the AMNH mount certainly remained the most viewed as the 20th century progressed. It became an immutable symbol for the institution, visited again and again by generations of museum goers. Its likeness was even used as the iconic cover art of Michael Crichton’s Jurassic Park.

By the 1980s, however, a new wave of dinosaur research had conclusively demonstrated that these animals had been active and socially sophisticated. The AMNH fossil galleries had not been updated since the 1960s, and the upright, tail-dragging T. rex in particular was painfully outdated. AMNH had once been the center of American paleontology, but now its displays were lagging far behind newer museums.

finished mount, room under construction

Restoration of AMNH 5027 was completed nearly three years before the hall reopened. Photo from Dingus 1996.

Between 1987 and 1995, Lowell Dingus coordinated a comprehensive, $44 million renovation of the AMNH fossil exhibits. As part of the project, chief preparator Jeanne Kelly led the restoration and remounting of the most iconic specimens, Apatosaurus and Tyrannosaurus. Of the two mounts, the Tyrannosaurus presented the bigger challenge. The fossils were especially fragile, and some elements, specifically the cervical vertebrae, had never been completely freed from the sandstone matrix. It took six people working for two months just to strip away the layers of shellac applied by the original preparators. All told, the team spent a year and a half dismantling, conserving, and rebuilding the T. rex.

Phil Fraley’s exhibit company constructed the new armature, which gave the tyrant king a more accurate horizontal posture. While the original mount was supported by obtrusive rods extending from the floor, the new version is actually suspended from the ceiling by a pair of barely-visible steel cables. Playing with Christman’s original wooden models, curators Gene Gaffney and Mark Norrell settled on a fairly conservative stalking pose, imbuing the mount with a level of dignity befitting this historic specimen. The restored AMNH 5027 was completed in 1992, but would not be unveiled to the public until the rest of the gallery was finished in 1995. Since that time, tens of millions of visitors have flocked to see this new interpretation of Tyrannosaurus. This is the skeleton that showed the world that dragons are real, and it is still holding court today.

References

Dingus, L. 1996. Next of Kin: Great Fossils at the American Museum of Natural History. New York, NY: Rizzoli International Publications, Inc.

Glut, D.F. 2008. Tyrannosaurus rex: A Century of Celebrity. Tyrannosaurus rex, The Tyrant King. Larson, Peter and Carpenter, Kenneth, eds. Bloomington, IN: Indiana University Press.

McGinnis, H.J. 1982. Carnegie’s Dinosaurs: A Comprehensive Guide to Dinosaur Hall at Carnegie Museum of Natural History, Carnegie Institute. Pittsburgh, PA: The Board of Trustees, Carnegie Institute.

Norell, M, Gaffney, E, and Dingus, L. 1995. Discovering Dinosaurs in the American Museum of Natural History. New York, NY: Alfred A. Knopf, Inc.

Osborn, H.F. 1906. Tyrannosaurus, Upper Cretaceous Carnivorous Dinosaur: Second Communication. Bulletin of the American Museum of Natural History vol. 22, pp. 281-296.

Osborn, H.F. 1913. Tyrannosaurus, Restoration and Model of the Skeleton. Bulletin of the American Museum of Natural History vol 32, pp. 9-12.

Osborn, H.F. 1916. Skeletal Adaptations of Ornitholestes, Struthiomimus, and TyrannosaurusBulletin of the American Museum of Natural History vol 35, pp. 733-771.

5 Comments

Filed under AMNH, dinosaurs, fossil mounts, history of science, museums, theropods

The Nation’s T. rex Revealed

The Nation's T. rex was temporarily assembled in the RCI workshop for inspection by Smithsonian staff. Source

The Nation’s T. rex was temporarily assembled in the RCI workshop for inspection by Smithsonian staff. Source

Yesterday, a press embargo lifted and the world got it’s first look at the pose the Nation’s T. rex will assume in the new fossil hall at the National Museum of Natural History. I don’t have much to add to the solid coverage at The Washington Post, NPR, and Smithsonian Magazine except holy crap, that’s awesome.

The photo above (by Nikki Kahn of The Washington Post) was taken when Smithsonian staff visited the Research Casting International workshop to inspect the mount’s progress. Located outside of Toronto, RCI is the industry leader in the art of creating mounted fossil skeletons, and their work is on display in museums all over the world. The Nation’s T. rex is one of 52 mounts the company will create for NMNH over the next three years.

Dr. Carrano gestures toward the awesomeness behind him.

Dr. Carrano gestures toward the awesomeness behind him. Source

The Nation’s T. rex (also known as Wankel Rex) is new to NMNH, but it is not a new specimen. It was discovered by Montana rancher Kathy Wankel in 1988 on land owned by the Army Corps of Engineers. The skeleton, which was for a time the most complete Tyrannosaurus known, was held in trust at the Museum of the Rockies until last April, when the Corps loaned the specimen to the Smithsonian for the next 50 years. This is the first time the original fossils have been displayed in a standing mount, but RCI has been producing casts of the specimen for years. Examples can be seen at the Great North Museum, the Royal Ontario Museum, the Perot Museum of Nature and Science, and even the Google Campus.

The Smithsonian team inspecting every inch of the 2,000 pound mount included Curator of Dinosauria Matt Carrano, Exhibit Project Manager Siobhan Starrs, and Preparator Steve Jabo. The violent scene, with the Tyrannosaurus preparing to decapitate its Triceratops prey, was first suggested by Carrano over two years ago. The inspiration came from research by Denver Fowler and colleagues, which proposed that Tyrannosaurus regularly dismembered Triceratops by pulling the head off by the frill. The dynamic pose sets the Nation’s T. rex apart from the more “regal” stances other museums have chosen for their Tyrannosaurus mounts, and also reminds visitors that this animal was a living, acting being within its environment.

A 3-D printed model of the skeleton was used to plan the pose. Source

The exhibit team used a 3-D printed model of the skeleton to plan the pose. Source

The tyrant king’s prey is none other than a cast of Hatcher, NMNH’s resident Triceratops. This composite skeleton was the first mounted Triceratops ever exhibited, and it has been on display in one form or another since 1905. An updated reproduction of Hatcher can be seen right now in The Last American Dinosaurs, but apparently this will be its last hurrah. As Carrano put it, “Hatcher’s done its duty.” Even relegated to the role of food, however, Hatcher is still an impressive beast. The skeleton is nearly as long as the Nation’s T. rex, and noticeably bigger than the Triceratops mounts at other major U.S. museums.

Hatcher Photo by the author.

Poor Hatcher knows nothing of his imminent demise at the claws of a 38-foot murderbird. Photo by the author.

The NMNH team had a few notes for RCI, both for the sake of accuracy and the sake of the exhibit. Carrano requested that the fibula be rotated slightly, while Starrs emphasized that the tail should be at least 10 feet off the ground, to prevent over-enthusiastic visitors from grabbing at it. The workshop visit was also an opportunity to explore how the mount would look among the other denizens of the National Fossil Hall. Hatcher and the Nation’s T. rex will be sharing space on the Creataceous platform with Edmontosaurus, Thescelosaurus, and the crocodile relative Champsosaurus, among others. Working out dynamic poses that also keep key lines of sight open is no easy task, and the gallery space needs to be planned down to the inch.

As is now industry standard, RCI’s armature is made up of intricate steel cradles that are custom fitted to hold each of the 150 real fossils in place. Unlike many historic mounts, no holes have been drilled in the bones and none of the delicate fossils are supporting the structure’s weight. Most bones can be removed individually, and with the right equipment, the entire mount can be assembled in just a few hours. As such, we can rest assured that this display will not only be incredibly cool, but the authentic 66 million-year-old fossils will be as safe as they could possibly be while on view for 7 million visitors per year.
