Tag Archives: museums

June 12, 2022 · 9:06 pm

Rhinos too thick: Fossils and flattery at Agate Springs

“No progress at all. Rhinos too thick.”

So wrote American Museum of Natural History fossil collector Albert Thomson in his September 1917 field notes. At that point, Thomson been collecting mammal fossils at Agate Springs nearly every year since 1907—and was still finding rhino bones in such abundance that they formed a seemingly impenetrable layer.

Located in northwest Nebraska and dating to about 22 million years ago, the Agate Springs bone bed is an aggregation of fossilized animals on an astonishing scale. Like the Carnegie quarry at Dinosaur National Monument, it provides a snapshot of an ecosystem at a moment in geologic time. But while a high estimate of the individual dinosaurs represented at Carnegie Quarry is in the hundreds, the main bone bed at Agate Springs may well contain tens of thousands of animals. The vast majority of fossils come from the tapir-sized rhino Menoceras, scrambled and packed together in a layer up to two feet thick. Moropus, Daeodon, and an assortment of other hoofed animals and small carnivores have also been found. These animals may have gathered during a drought and succumbed to thirst or disease, before the returning rains rapidly buried their remains. It’s also possible that the bone bed represents a mass drowning during a flash food. Since different parts of the site vary in density, Agate Springs likely represents multiple mortality events over a number of years.

Charles Knight’s mural of the Agate Springs ecosystem. © Field Museum, CC BY-NC 4.0

Today, less than 30% of the Agate Springs bone bed has been excavated, but not for a lack of effort. Teams from a half dozen museums visited the site between 1900 and 1925, with the Carnegie Museum of Natural History (CM), the University of Nebraska State Museum (UNSM), and the American Museum of Natural History (AMNH) establishing large-scale excavations and returning year after year. As we shall see, the relationships between these teams were not always amicable, making this period at Agate Springs a window into the preoccupations of museum workers at the turn of the century. Agate Springs also illustrates how east coast paleontologists interacted with and relied on local people, defending their social capital as jealously as any fossil deposit. Finally, museums’ interest in Agate Springs in the mid 20th century exemplifies how exhibitions had evolved during the intervening period.

The setting

Agate Springs is unceded Sioux territory, occupied by settlers after the Kansas-Nebraska Act of 1854. James Cook purchased the treeless tract of rolling hills from his father-in-law in 1887, naming it Agate Springs after the rocky banks of the nearby Niobrara River. James and Kate Cook established a ranch where they raised horses and cattle, and Agate Springs became a popular stop for travelers on their way to Cheyenne, Wyoming.

The Cooks were aware of bones weathering out of the hills as far back as 1885, when the land was still owned by Kate’s father. James knew that scientists were on the lookout for fossils in the region—by one account he worked for O.C. Marsh as a translator in 1874. Once the ranch was established, he began writing to museums, including UNSM in Lincoln and the Carnegie Museum in Pittsburgh, inviting them to visit Agate Springs. A UNSM party led by Erwin Barbour was the first to drop by, spending a night at the Cook homestead in July 1892. Chiefly concerned with collecting “devil’s corkscrews” (ancient beaver burrows) north of the Niobrara, Barbour sent his student F.C. Kenyon to check out the bones Cook promised in the nearby hills. Kenyon collected as much as he could carry, but his report apparently did not excite Barbour, and the UNSM party moved on.

It would be twelve years before another paleontologist visited Agate Springs. Olaf Peterson of the Carnegie Museum stopped by the ranch in early August of 1904, at the end of a tumultuous field season in western Nebraska. Peterson had received a telegram on July 4 that his brother-in-law, boss, and mentor John Bell Hatcher had died of typhoid. Peterson intended to cut the season short, but Carnegie Museum director William Holland denied the request, writing in no uncertain terms that Peterson was to continue his work in Nebraska. Later in July, Peterson fell ill himself, and spent several days recovering in Fort Robinson. Suffice it to say, Peterson was not in the best of moods when he arrived at Agate Springs.

Nevertheless, the outcrops Peterson saw at Agate Springs revitalized his spirit. Accounts differ on what part of the site Cook showed him (this will be important shortly), but when he returned east two weeks later he was raving about a quarry with “ten skulls within a six-foot radius.” In Pittsburgh, Peterson and Holland began drawing up plans for an ambitious excavation the following year. In their view, they had staked a claim to the site: just like contemporary gold and oil prospectors, turn-of-the-century paleontologists lived by the rule of “dibs.” For the museum crowd, being the first scientist to “discover” a quarry meant an entitlement to control the site and the resources it produced. This included both the physical fossils and the privilege to describe and interpret those fossils—controlling the site meant controlling scientific knowledge.

Dueling quarries

Cook either didn’t know about such customs, or didn’t care. To his credit, Cook was never interested in monetizing the fossils at Agate Springs. By all accounts, he simply wanted to share with the world the knowledge that the bone bed represented. He was concerned that it was so expansive that no single team could uncover all its secrets. On May 26, 1905, Cook wrote to Barbour, inviting him to share in the bounty he had shown Peterson the previous summer, explaining that it was “so large that [the Carnegie team] could not work it out in years, so there is plenty of material for other parties to work with.”

On other occasions, Barbour had taken a cautious stance when corresponding with landowners. In this case, however, he could barely contain the enthusiasm in his reply. In a single letter, Barbour reminded Cook that UNSM had visited 12 years before and therefore should have collecting rights, asked Cook to place a literal flag on the site claiming it for the University of Nebraska, offered to hire Cook’s 18 year-old son Harold as a field assistant, and appealed to Cook’s state pride by listing the out-of-state institutions that were removing Nebraska’s fossil heritage each year.

Carnegie and University Hills at Agate Springs National Monument. Photo by Neublar110, CC SA

That summer, Peterson and Barbour opened quarries on two neighboring buttes at Agate Springs, which came to be known as Carnegie Hill and University Hill. While the two parties were cordial neighbors, letters exchanged by Holland, Barbour, and Cook demonstrate that the museum directors were uncomfortable with the situation. Holland repeatedly wrote to Cook, claiming that his team was more skilled than Barbour’s and warning that it would be bad for science if the fossils and geological data were split between two institutions. Harold Cook didn’t appreciate Holland’s condescending tone. In a note to his father pinned to one of the letters, he wrote that “a letter of this kind is the work of a pinheaded, egotistical, educated fool.”

The Carnegie and UNSM teams returned to Agate Springs in 1906, but spent the summer of 1907 elsewhere. The elder Cook took the opportunity to invite yet more paleontologists, and teams from AMNH, the Yale Peabody Museum, and Amherst College showed up to collect fossils.

Meanwhile, Holland began a campaign to wrest control of the site by any means necessary. He became particularly focused on the narrative of who discovered the bone bed. According to Holland, Cook had shown Peterson the smaller, less dense site that would be come to be known as Quarry A. Peterson then went prospecting on his own and found the primary bone bed that straddled the two buttes. Holland went on to argue that regardless of who first saw the fossils, Peterson earned credit for the discovery because he was the first trained scientist on the scene, and therefore the first individual to correctly identify the age and identity of the animal remains.

Cook rejected Holland’s retelling of the events of August 1904, insisting that he had known of the bone bed for years before he showed it to Peterson. In many ways, the two men were talking past each other. Cook found Holland’s insistence on claiming the discovery for Peterson nonsensical and disrespectful—he knew his own land, and he was the one who invited the paleontologists in the first place. Holland, on the other hand, was staking a claim among his fellow academics. He needed to demonstrate that the Carnegie Museum had been at Agate Springs first, so that other institutions would yield to his authority to interpret and publish on the fossils.

Menoceras fossils from Agate Springs on display at the Carnegie Museum of Natural History. Photo by the author.

Late in 1907, Holland visited the Cooks’ ranch in person for the first time. He offered to buy the fossil-bearing land outright, doubtlessly planning to block the other museums from accessing it. At this point, James Cook made the awkward discovery that Carnegie Hill and University Hill were actually just outside his official holdings, in the public domain. Holland moved to purchase the land, but Harold Cook beat him to it, building a cabin and filing a homestead claim in March 1908. In their gentlemanly rancher way, the Cooks told Holland to get lost, and the Carnegie Museum left Agate Springs for good.

Playing nice

While Holland had managed to sour his relationship with a remarkably welcoming and accommodating landowner, Barbour did the opposite. In letters to Cook, he regularly acknowledged the rancher as the discoverer of the site. He visited the Cooks frequently and employed Harold in the UNSM quarry, training the younger Cook into a formidable fossil prospector and anatomist. Soon Harold was studying at the University of Nebraska under Barbour, and a few years later, Harold and Barbour’s daughter Elinor were married. Barbour also named a few species after the Cooks, including Moropus cooki.

AMNH director Henry Osborn and field manager Albert Thomson had a similarly positive relationship with the Cooks. The New York museum took over Carnegie Quarry in 1908, and Osborn visited several times to express his gratitude. Like Barbour, he paid Harold for his time, labor, and expertise. Later, Osborn invited Harold to work at AMNH during the off-season. In return, AMNH was permitted to collect at Agate Springs for nearly two decades. Thomson returned almost every year through 1923, and the museum accumulated so many Menoceras and Moropus fossils that it began selling and trading them to other institutions.

Menoceras and Moropus slab at the National Museum of Natural History. Photo by the author.

The reward for staying in the Cooks’ good graces was clear. UNSM and AMNH paleontologists gained access to the Agate Spring quarries for many years, accumulating large collections. They earned accolades from publications, public interest from the skeletons they placed on exhibit, and even monetary rewards from selling the excess specimens. Meanwhile, the Carnegie Museum was shut out after their first few seasons of collecting because Holland was, if not outright hostile to the Cooks, unable to communicate effectively with the ranchers. For American paleontologists at the turn of the century, social capital was a critical resource. Positive relationships with landowners and other individuals in the fossil-rich western states earned them access to land, information about the terrain, and networks of eyes on the ground, any of which might lead them to the next important quarry.

You get a rhino block, and you get a rhino block…

The scale and intensity of the Agate Springs excavations decreased after 1910, and in the early 20s, Thompson and the AMNH crew closed up shop, believing they had found examples of every species that could be found. By that time, the site’s value for museums had shifted. Rather than being a bonanza of specimens to collect, categorize, and publish on, Agate Springs had become a place to quickly and easily obtain display-worthy fossils. As Hunt puts it, the site was a “storehouse of good exhibit materials, to be tapped when needed by museums wishing to mount a rhino or two.”

Today, Agate Springs fossils—acquired in the field or via trade—are on display at large and small museums all over North America. Many of these are mounted skeletons of rhinos, camels, and Moropus, but there is also a particular abundance of large, incompletely prepared slabs, which provide viewers with a small window into the Agate Springs bone bed. Because of the sheer density of bones, the early 20th century excavation teams quickly stopped jacketing fossils individually, and instead began preparing out large blocks, typically four to six feet across. The blocks were hardened with shellac, and reinforced with wood planks around their borders. Pulleys and cranes were required to lift the largest blocks out of the quarries. In the early years, the intention was to fully excavate these blocks at their respective museums. It’s not clear which museum first placed a complete block on exhibit, but the idea proved popular. Many later visitors to Agate Springs, from James Gidley of the National Museum of Natural History in 1909 to Elmer Riggs of the Field Museum of Natural History in 1940, came with the express purpose of collecting intact slabs for display.

Menoceras slab on display at the Field Museum of Natural History. Photo by the author.

The popularity of fossil blocks from Agate Springs coincides with a shift in philosophy toward exhibitions at natural history museums. While early 20th century exhibits were catalogs of life, emphasizing the breadth of the museum’s collection, by the 1920s and 30s many museums had begun moving toward narrative exhibits. Displays were intended to communicate ideas, and objects served as illustrations of those ideas. The fossil blocks from Agate Springs were ready-made illustrations of a number of paleontology concepts, from the process of taphonomy to the task of excavation millions of years later. Most have remained on display to this day, a fact that James Cook would undoubtably be pleased with.

An incomplete list of museums in possession of Agate Springs blocks follows. Do you know of others? Please leave a comment!

Carnegie Museum of Natural History
American Museum of Natural History
University of Nebraska State Museum
Field Museum of Natural History
National Museum of Natural History
Royal Ontario Museum
Yale Peabody Museum of Natural History
Harvard Museum of Comparative Zoology
University of Wyoming Geological Museum
South Dakota School of Mines and Technology
Wesleyan University Geology Museum
University of Austin Texas Memorial Museum
University of Michigan Museum of Natural History
Science Museum of Minnesota
Fort Robinson State Park Trailside Museum

References

Agate Fossil Beds: Official National Park Handbook. Washington, DC: National Park Service.

Hunt, R.M. 1984. The Agate Hills: History of Paleontological Excavations, 1904-1925.

Vetter, J. 2008. Cowboys, Scientists, and Fossils: The Field Site and Local Collaboration in the American West. Isis 99:2:273-303.

Skinner, M.F., Skinner, S.M., Gooris, R.J. 1977. Stratigraphy and Biostratigraphy of Late Cenozoic Deposits in Central Sioux County, Western Nebraska. Bulletin of the American Museum of Natural History 158:5:265-370.

3 Comments

Filed under AMNH, CMNH, collections, dinosaurs, DMNS, exhibits, field work, fossil mounts, history of science, museums, NMNH, ornithopods, sauropods, theropods, thyreophorans

Tagged as amnh, CMNH, dinosaur national monument, dinosaurs, fossil mounts, fossils, history of science, museums, NMNH, paleontology, ROM

March 8, 2017 · 5:03 pm

Jurassic Museum

Teaser image for Jurassic Park 5, via Colin Trevorrow/Universal.

Well, this is a doozy. Jurassic World director Colin Trevorrow tweeted the above image this afternoon, which is a teaser for the upcoming “Jurassic World 2” (Jurassic Park 5?). The film doesn’t have an official title yet, but apparently they started shooting on February 23rd and are aiming for a June 2018 release.

The Victorian-style museum gallery piqued my interest immediately. Since this is the first promotional image they put out, it stands to reason that natural history exhibits might play a significant role in the film. Is this a flashback to a formative experience for a main character? Or is it a brief moment of quiet before Chris Pratt smashes through the wall riding a mutant cyborg T. rex? Both are probably equally likely at this point, but there are still a few things worth noting.

First, this scene is plainly referencing the century-old association in the public consciousness between museums and dinosaurs. When we think of museums, we think of dinosaurs, and vice versa. This is no accident – as I’ve discussed here on many occasions, dinosaurs (and their mounted skeletons in particular) played a central role in defining the modern museum at the start of the 20th century. The first Jurassic Park film played with this iconography in its classic finale, when the flesh-and-blood Tyrannosaurus and Velociraptor literally obliterate a pair of skeletal mounts. In that case, the implication was clear: the living, cloned dinosaurs represent new technology and scientific progress smashing the old and obsolete incarnations of paleontology to bits.

Y’know, this scene. (Universal).

Is “Jurassic World 2” pushing a similar message, casting the iconography of a museum hall as a past doomed to extinction? Maybe. The Victorian design elements – wood paneled walls, skeletons on open pedestals in orderly rows – distinctly evoke museums of the past. You’d be hard pressed to find an exhibit that looks like that today. Perhaps the filmmakers are using the Victorian iconography to enhance the impression of dusty obsolescence. Or maybe the baby boomer producers are recreating the sort of museum they remember from their childhood. The primary counterpoint is that the mise en scène on display here is stately and impressive. That dramatically-lit ceratopsian skull looks formidable, not at all like something shrinking back into history.

Let’s talk about that ceratopsian skull for a hot sec. The other skeletons are (perhaps incredibly) reasonably accurate representations of identifiable dinosaurs. We’ve got a tyrannosaur, a hadrosaur, and a dromaeosaur on the left, and what looks like Euoplocephalus, Kosmoceratops, and Protoceratops on the right. The skull in the center stands out as the sole fanciful element in the scene. It looks like an oversized, exaggerated Triceratops, with extra-long, tapering brow horns and a frill studded with spikes. Jurassic World established fantasy dinosaurs as being part of the Jurassic Park universe, so it’s possible this represents some kind of new, fictitious hybrid.

Charles Knight’s 1897 Agathaumas painting. Source

However, I was immediately reminded of Charles Knight’s classic take on Agathaumas. E.D. Cope named Agathaumas sylvestris in 1872, based on a pelvis and a number of vertebrae discovered in southwest Wyoming. It was technically the first ceratopsian dinosaur to be named and described, but without a skull, Cope had little idea of what the animal looked like (today, it’s considered a synonym of Triceratops). Charles Knight depicted imagined the animal as a sort of spiny uber-Triceratops. His striking reconstruction was copied almost exactly for the Agathaumas that appeared in 1925’s The Lost World.

Triceratops and Agathaumas models, sculpted by Marcel Delgado and animated by Willis O’Brien. Source

It would be beyond awesome if the dramatic ceratopsian skull was meant to be a throwback or nod to the mythic Agathaumas. Or perhaps I’m reading too much in to it.

1 Comment

Filed under dinosaurs, exhibits, fossil mounts, marginocephalians, movies

Tagged as dinosaurs, fossils, jurassic world, museums

November 8, 2016 · 12:56 pm

The Hidden Rhomaleosaurus

Rhomaleosaurus cast at the NMNH Museum Support Center. Source

Residing upon the wall of the Smithsonian’s Museum Support Center (MSC) in Suitland, Maryland is the skeleton of a giant prehistoric reptile. This is a cast of Rhomaleosaurus cramptoni, a short-necked plesiosaur from the early Jurassic rocks of England’s ~~west~~east coast. With broad jaws bristling with teeth and a length exceeding 22 feet, this specimen would surely be a crowd pleaser, and yet it has never been on display at the National Museum of Natural History. Since the MSC opened in 1983, only staff, visiting scientists, and gaggles of interns have seen it.

The original fossil from which the Smithsonian cast was taken came from an alunite mine on the Yorkshire coast. Miners unearthed the nearly complete Rhomaleosaurus in 1848. This was a year after Mary Anning‘s death, and plesiosaurs were already well known to British naturalists. The new specimen was uncommonly large, however, and the mine’s owner, George Augustus Phipps, displayed it with pride at his residence. Five years later, Phipps gifted the skeleton to his friend Phillip Crampton, an Irish anatomist. Crampton arranged for the plesiosaur to be displayed at the 1853 meeting of the British Association for the Advancement of Science, held in Dublin.

Illustration of the Rhomaleosaurus cast for sale from Henry Ward’s 1866 catalog.

For nearly a decade, the skeleton remained in a semi-permanent tent that had been erected for the meeting. Eventually, increasing concern that the tent structure was not protecting the fossil from the elements led to the specimen’s conditional relocation to the Royal Dublin Society Museum. It was here that Alexander Carte and William Baily published the first – albeit brief – description of the Yorkshire plesiosaur, naming it Plesiosaurus cramptoni (Harry Seely moved it to the genus Rhomaleosaurus in 1874).

Around the same time that Carte and Baily were preparing their description, the Rhomaleosaurus received another fateful visitor. This was Henry Ward of Rochester, New York, founder of Ward’s Scientific Company. At the time, Ward was a well-known and well-regarded fossil and mineral dealer. Ward first traveled to Europe in 1854 at the age of 20. He continued to venture around the world collecting geological specimens, which he sold to fund his degree at the Paris School of Mines. Ward’s timing was excellent, and the connections he made during his studies put him in an ideal position to start a company supplying specimens to the new natural history museums that were springing up on both sides of the Atlantic. Ward was also permitted to take casts of museum specimens, apparently including the Rhomaleosaurus in Dublin.

Starting in 1866, the Ward Scientific Company catalog offered a plaster cast of “Plesiosaurus” cramptoni for sale. Described as the largest plesiosaur ever discovered, the fully painted cast was listed at $150, which would be a little over $4000 today. The skull or left fore-flipper could be had for $15 and $10, respectively.

Rhomaleosaurus cast at the London Museum of Natural History.

Rhomaleosaurus cast at the Museum of Natural History in London. Source

It is unknown how many Rhomaleosaurus casts Ward sold, but five survive today. In addition to the Smithsonian copy, casts are held by Cornell University, the University of Illinois, the Bath Royal Literary and Scientific Institute, and the Natural History Museum in London. Each of these casts varies slightly from the others. While the Smithsonian Rhomaleosaurus closely matches the catalog illustration (missing left flipper and all), the Bath version has duplicate front and back flippers, which means that they are backwards on one side. Meanwhile, all four flippers on the London cast are sculpted replacements.

Most of the Rhomaleosaurus casts are tucked away in geology departments or seminar rooms where they are not often seen by the public. The London copy is an exception, however. The Rhomaleosaurus holds court in the Fossil Marine Reptiles gallery, where it is the largest specimen on display. In fact, it may well be the second most-photographed object in the museum, after Dippy the Diplodocus. Somewhat anachronistically, the London Rhomaleosaurus is displayed with a placard about Mary Anning, even though it is one of the few specimens in the gallery she didn’t discover.

USNM fossil preparation lab in 1913. Photo courtesy of the Smithsonian Institution Archives.

The Smithsonian’s Rhomaleosaurus cast was purchased from Ward’s Scientific Company in 1895, when the United States National Museum was still operating out of the Arts and Industries building. Surprisingly, the cast is not on Curator Charles Gilmore’s list of display specimens, either in the old Arts and Industries exhibit or in the new USNM building that opened in 1910. Although the Department of Paleontology prepared exhibits for the 1896 International Exposition in Atlanta and the 1898 Trans-Mississippi Exposition in Omaha, the Rhomaleosaurus was not featured in either. Indeed, the plesiosaur can only be seen in historic photographs of the fossil preparation lab. From these, we can determine that the Rhomaleosaurus adorned the wall of this space as early as 1913 and as late as 1926. The cast was not part of any of the mid-century modifications to the paleontology exhibits, and was eventually relegated to MSC in 1983. It is still intact, but its existence is not widely known, even to paleontologists.

Sadly, the original Rhomaleosaurus fossils have not fared as well as the casts. In 1877, the Royal Dublin Society Museum was incorporated into the National Museum of Ireland, at which time the institution gained permanent ownership of the specimen. During a move in the 1920s, the Rhomaleosaurus was broken up with sledgehammers for ease of transport. Afterwards, the pieces were scattered throughout the collections for decades. Adam Smith has been instrumental in reuniting and restoring this historic skeleton (video of the pieces here). It was a principal subject of his 2007 doctoral thesis, and he oversaw the complete, three-dimensional preparation of the original skull. Currently, there are long-term plans to reassemble and display the Rhomaleosaurus at the National Museum of Ireland.

Overview artwork of the National Fossil Hall, on display in “Last American Dinosaurs” at NMNH. Note Rhomaleosaurus in the upper left, behind the Jurassic platform.

Back in the United States, the Smithsonian’s Rhomaleosaurus cast will finally go on exhibit in 2019. It will be featured in the new National Fossil Hall, mounted on the south wall of hall 4 (roughly where the café used to be – see the upper left of the image above). It seems that 168 years after its discovery, this Yorkshire plesiosaur is poised to re-enter the realm of public display on both sides of the Atlantic.

References

Smith, A. 2006. Dublin’s Jurassic “Sea-Dragon.” Geoscience 17: 26-27. http://plesiosauria.com/pdf/Smith_2006_Dublin_seadragon.pdf

Smith, A.S. 2007. Anatomy and Systematics of the Rhomaleosauridae (Sauropterygia: Plesiosauria). PhD thesis. School of Biology and Environmental Science, University College Dublin.

Smith, A.S. and Dyke, G.J. 2008. The skull of the giant predatory pliosaur Rhomaleosaurus cramptoni: implications for plesiosaur phylogenetics. Naturwissenschaften 95: 975-980.

Gilmore, C.W. 1941 A History of the Division of Vertebrate Paleontology in the United States National Museum. Proceedings of the United States National Museum 90.

Ward, H.A. 1866. Catalog of Casts and Fossils From the Principle Museums of Europe and America with Short Descriptions and Illustrations. Rochester, NY: Benton and Andrews.

2 Comments

Filed under exhibits, fossil mounts, history of science, museums, NHM, reptiles

Tagged as history of science, marine reptiles, museums, NHM London, NMNH, paleontology, Smithsonian

September 30, 2016 · 9:20 am

The National Fossil Hall Rejects

In April 2014, the paleontology exhibits at the National Museum of Natural History closed for a wall-to-wall renovation. The re-imagined National Fossil Hall will reopen in 2019. We are now approaching the halfway point of this journey, which seems like a fine time to say farewell to some of the more charismatic specimens that are being rotated off display.

In comparison to the old exhibit, the new version will be influenced by a less-is-more design philosophy. While there will not be quite as many individual specimens on display, those that are included will be more visible and will be explored in more detail. This combined with the significant number of new specimens being added means that many old mainstays had to be cut from the roster. Cuts occur for a variety of reasons, including eliminating redundancy, preserving specimens that were not faring well in the open-air exhibit space, and making specimens that have been behind glass for decades available to a new generation of researchers. Retired specimens are of course not going far – they have been relocated to the collections where students and scientists can study them as needed.

Stegomastodon (USNM 10707)

The Stegomastodon in 2014. Photo by the author.

The young male Stegomastodon is the largest single specimen that is being retired from the NMNH fossil halls. James Gidley and Kirk Bryan collected this skeleton in the San Pedro Valley of Arizona, during the same 1921 collecting trip that produced the museum’s Glyptotherium (which will be returning). While the genus Stegomastodon was erected in 1912, Gidley referred his specimen to a new species, S. arizonae, due to its more “progressive” physiology and slightly younger age. By 1925, the skeleton was mounted and on display in the Hall of Extinct Monsters. While the original mount used the real fossil tusks, these were eventually replaced with facsimiles.

There are at least two reasons the Stegomastodon will not be returning in 2019. First, there are already two big elephants on display: the mammoth and the mastodon. Elephants take up a lot of space, and a third proboscidean offers diminishing returns when compared to the amount of floor space it requires. More importantly, the Stegomastodon is a holotype specimen, and the exhibit team elected to remove most of these important specimens from the public halls. This is both to keep them safe from the damaging effects of vibration, humidity, and fluctuating temperature, as well as to make them more accessible to researchers.

Paramylodon (USNM V 15164)

Collections staff wheel Paramylodon out of the exhibit hall. Source

During the 1960s, Assistant Curator Clayton Ray oversaw the construction of the short-lived Quaternary Hall, which was reworked into the Hall of Ice Age Mammals. This meant creating a number of brand-new mounts, including several animals from the Rancho La Brea Formation in Los Angeles County. La Brea fossils are not found articulated, but as a jumble of individual elements preserved in asphalt. The Los Angeles Natural History Museum provided NMNH with an assortment of these bones, which preparator Leroy Glenn assembled into two dire wolves, a saber-toothed cat, and the ~~sheep~~ cow-sized sloth Paramylodon.

Paramylodon is another cut for the sake of eliminating redundancy: the colossal Eremotherium completely overshadows this more modestly-sized sloth. This mount also needed some TLC. For aesthetic reasons, the Paramylodon was given an internal armature, which involves drilling holes through each of the bones. Last year, preparator Alan Zdinak took on the task of disassembling and conserving these damaged fossils with assistance from Michelle Pinsdorf.

Zygorhiza (USNM PAL 537887)

Zygorhiza cast in the Life in the Ancient Seas gallery. Source

When the Life in the Ancient Seas gallery opened in 1990, it featured a historic Basilosaurus skeleton that had been on display since the 1890s. This ancestral whale was relocated to the Ocean Hall in 2008, and a cast of the smaller whale Zygorhiza took its place in Life in the Ancient Seas. Since there is now an extensive whale evolution exhibit in Ocean Hall, this subject will not be a major part of the new paleontology exhibit. Both Zygorhiza and the dolphin Eurhinodelphis will have to go.

After the old fossil halls closed, Smithsonian affiliate Mark Uhen managed to acquire the retired Zygorhiza mount for George Mason University, where he is a professor. The whale is now on display in the Exploratory Hall atrium, suspended 30 feet in the air.

Tapirs, Horses, and Oreodonts

The tapir Hyrachyus and the mini-horse Orohippus. Photo by the author.

The last two major renovations of the NMNH fossil exhibits occurred when mammal specialists were in charge of the Paleobiology Department, and as a result the halls ended up with a lot of Cenozoic mammal mounts (at least 50, by my count). Virtually every major group was covered, often several times over. This menagerie has been culled for the new hall, which will focus on specimens that best tell the story of Earth’s changing climate during the past 66 million years. Casualties include the trio of Hagerman’s horses, the smaller horse Orohippus, the tapirs Hyrachyus and Helaletes, the ruminant Hypertragulus, and the oreodont Merycoidodon. Interestingly, the classic hall’s three large rhinos are sticking around, and will in fact be joined by at least one more.

Brachyceratops (USNM 7953)

Brachyceratops/Rubeosaurus. Photo by NMNH Department of Paleobiology.

The pocket-sized ceratopsian historically called Brachyceratops has been on display at NMNH since 1922. Discovered in 1913 by Curator of Fossil Reptiles Charles Gilmore, this animal is one of only a few dinosaur species excavated, prepared, described, and exhibited entirely in-house at NMNH. Assembled by Norman Boss, the mount is actually a composite of five individuals Gilmore found together in northeast Montana.

Gilmore described Brachyceratops as an unusually small but full-grown ceratopsian, but in 1997 Scott Sampson and colleagues confirmed that all five specimens were juveniles. Unfortunately, the fossils lack many diagnostic features that could link them to an adult form. According to Andrew McDonald, the most likely candidate is Rubeosaurus. Nevertheless, without the ability to recognize other growth stages of the same species, the name Brachyceratops is unusable and is generally regarded as a nomen dubium.

It is not difficult to surmise why the Brachyceratops would end up near the bottom of the list of specimens for the new exhibit. It is not especially large or impressive, it doesn’t have a recognizable name (or any proper name at all, really) and it doesn’t tell a critical story about evolution or deep time. With limited space available and new specimens being prepped for display, little Brachyceratops will have to go.

Corythosaurus (USNM V 15493)

Corythosaurus as seen in the 1960s. Photo courtesy of the Smithsonian Institution Archives.

In 1910, Barnum Brown of the American Museum of Natural History launched the first of several expeditions to the Red Deer River region of Alberta. Seeing Brown’s success and under pressure to prevent the Americans from hauling away so much of their natural heritage, the Canadian Geological Survey assembled their own team of fossil collectors in 1912. This group was headed by independent fossil hunter Charles Sternberg, who was accompanied by his sons George, Levi, and Charles Jr. Having secured several articulated and nearly complete dinosaur skeletons, Brown’s team moved on five years later. The Sternbergs, however, remained at the Red Deer River, and continued to collect specimens for the Royal Ontario Museum.

In 1933, Levi discovered a well-preserved back end of a Corythosaurus, complete with impressions of its pebbly skin. The Smithsonian purchased this specimen in 1937 for use at the Texas Centennial Exposition. It eventually found its way into the permanent paleontology exhibit at NMNH. Unfortunately, the half-Corythosaurus ended up crowded behind more eye-catching displays and was often overlooked by visitors. In the new exhibit, it will have to move aside to make room for new Cretaceous dinosaurs.

Assorted Dinosaur Skulls

Original skull of Hatcher the Triceratops, one of many dinosaur skulls coming off exhibit. Photo by the author.

In addition to complete dinosaur mounts, the old NMNH fossil halls included several dinosaur skulls, ranging from the giant cast of the AMNH Tyrannosaurus to the miniscule Bagaceratops. Most of these standalone skulls have been cut, although a few (Diplodocus, Camarasaurus, and Centrosaurus) are sticking around, to say nothing of new specimens being added. Other retirees in this category include the original skulls of Nedoceratops (labeled Diceratops), Triceratops, Edmontosaurus, and Corythosaurus, as well as casts of Protoceratops, Pachycephalosaurus, Stegoceras, Psittacosaurus, and Prenocephalae.

As usual, the reasons these specimens are coming off exhibit are varied. The Nedoceratops skull is a one-of-a-kind holotype that has been the subject of a great deal of conflicting research over its identity and relevance to Maastrichtian ceratopsian diversity. Putting this specimen back in the hands of scientists should help clarify what this bizarre creature actually is. Meanwhile, many of the other skulls (e.g. Protoceratops, Psittacosaurus, and Prenocephalae) come from Asian taxa. In the new fossil hall, the Mesozoic displays will primarily focus on a few well-known ecosystems in North America.

Dolichorynchops (USNM PAL 419645)

Dolichorhynchops from Montana, mounted by Arnie Lewis. Photo by Chip Clark.

Dolichorhynchops in the Life in the Ancient Seas exhibit. Photo by NMNH Department of Paleobiology.

The NMNH Dolichorhynchops is a relatively new mount. It was collected in Montana in 1977 and acquired in a trade with the Denver Museum of Nature and Science. Arnie Lewis prepared it for display in 1987. 24 years later, “Dolly” is being retired to the collections. This is not due to anything wrong with the specimen, but to make way for a bigger, cooler short-necked plesiosaur. NMNH purchased a cast of Rhomaleosaurus from the Henry Ward Natural Science Establishment in the 1890s, but it has not been on exhibit since at least 1910. This cast, which is based on an original at the National Museum of Ireland (and which is identical to the cast at the London Natural History Museum) will make its first public appearance in over a century in the new National Fossil Hall. Sorry, Dolichorhynchops.

This has hardly been a comprehensive list – just a few examples that illustrate the decisions that are made when planning a large-scale exhibit. If you are curious about other favorites from the old halls, you can check on their fate by searching the Department of Paleobiology’s online database. Just go to Search by Field and enter “Deep Time” under Collection Name to see most of the specimens earmarked for the new exhibit.

References

Gidley, J.W. 1925. Fossil Proboscidea and Edentata of the San Pedro Valley, Arizona. Shorter Contributions to General Geology (USGS). Professional Paper 140-B, pp. 83-95.

Gilmore, C.W. 1922. The Smallest Known Horned Dinosaur, Brachyceratops. Proceedings of the US National Museum 63:2424.

Gilmore, C.W. 1941. A History of the Division of Vertebrate Paleontology in the United States National Museum. Proceedings of the United States National Museum Vol. 90.

Gilmore, C.W. 1946. Notes on Recently Mounted Reptile Fossil Skeletons in the United States National Museum. Proceedings of the United States National Museum Vol. 96 No. 3196.

McDonald, A.T. 2011. A Subadult Specimen of Rubeosaurus ovatus(Dinosauria: Ceratopsidae), with Observations on other Ceratopsids from the Two Medicine Formation. PLoS ONE 6:8.

Sampson, S.D., Ryan, M.J. and Tanke, D.H. 1997. Craniofacial Ontogeny in Centrosaurine Dinosaurs: Taxonomic and Behavioral Implications. Zoological Journal of the Linnean Society 12:1:293-337.

7 Comments

Filed under collections, dinosaurs, exhibits, Extinct Monsters, fossil mounts, history of science, mammals, marginocephalians, museums, NMNH, ornithopods, reptiles, theropods

Tagged as exhibits, fossil mounts, museums, natural history museums, NMNH, paleontology, Smithsonian

September 13, 2016 · 2:55 pm

A Game Changer?

Today, Google and 60 partner museums unveiled the new natural history arm of the Google Cultural Institute. Launched in 2011, the Cultural Institute is an effort to make culturally significant material accessible online. Up until this point, the primary focus has been on art and history. In conjunction with museums and other institutions around the world, Google has been uploading millions of images, archival documents, and virtual walkthroughs of significant places. The natural history project offers more of the same, but with 100% more dinosaurs.

I had no idea this was in the works, nor do I know much beyond what is said in the press release. After spending much of this morning exploring the site, however, you can color me impressed. The sheer amount of content is overwhelming: 300,000 annotated specimen photos, virtual walkthroughs of 50 museums, and 184 multimedia presentations on topics both general (cabinets of curiosities) and esoteric (native plants and fish of Korea). Unfortunately, accessing this content can be a bit of a chore. I was often confused by the user interface, and found many of the most interesting or useful items by accident.

Somewhere in the Ancient Americas exhibit at the Field Museum of Natural History. Google Cultural Institute

For me, the museum walkthroughs are the clear highlight. Using Google’s Street View technology, users can explore the included museums and get surprisingly close to individual displays. Some of these “virtual tours” are frustratingly limited to a few corridors between exhibits, but others provide darn near the full experience of actually being there. Of the museum walkthroughs I’ve looked at so far, the National Museum of Natural History and Berlin’s Museum für Naturkunde are particular standouts in this regard. A handful of museums have had virtual tours available online since at least the early 2000s, but this is the first time I’ve seen the concept escape the gimmick stage and become something potentially useful.

The quality of the multimedia presentations (“virtual exhibits”, if you must) is a bit mixed. The best ones make specific use of the partner museums’ collections, highlighting the scientific, cultural, or historical significance of particular objects. These presentations provide curatorial expertise and novel insights that are not easily found elsewhere. Other presentations, however, are frustratingly generalized, and don’t include much content that one couldn’t get from skimming a Wikipedia article.

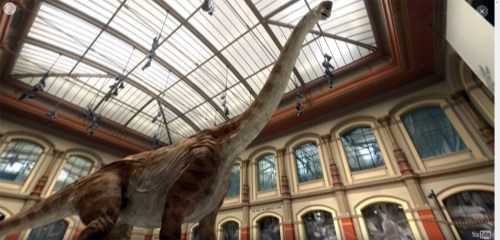

yawn, another cgi sauropod. I'd rather see the mount.

Yet another middling CGI dinosaur. Yay, I guess? Google Cultural Institute

I would include the site’s flagship attractions – narrated 360-degree tours of selected exhibit halls – in the second camp. These three short videos each feature an exhibit that “comes to life” with the help of some acceptable-but-not-spectacular CGI. Take the video about the Giraffatitan at the Museum für Naturkunde. It’s awesome to be able to look all around the hall, but most of the video is taken up by an animated version of the dinosaur that doesn’t accomplish anything it’s Jurassic Park counterpart didn’t 23 years ago. The video starts to tell some interesting stories – convergent evolution between sauropods and giraffes, the rate of extinction caused by human activities far outpaces normal background extinction – but the goofy CGI Giraffatitan is very much in the way. Museums have so many strengths, so I’ll never understand the impulse to rely on things like animated dinosaurs that a) their audience can see elsewhere and b) Hollywood will always be able to do better.

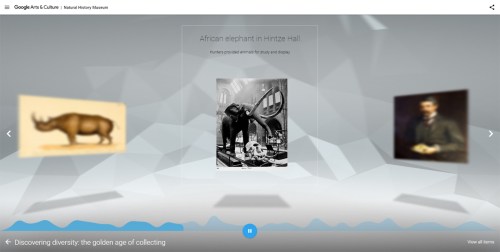

A great deal of content to be found by the bold.

A great deal of content can be found by the bold. Google Cultural Institute

All in all, the new natural history project at the Google Cultural Institute is a very impressive starting point. Nevertheless, my optimism is tempered by the fact that the web is littered with apps and mini-websites developed by museums, then almost immediately abandoned. Too often, digital projects are taken on without a clear idea of who will continue to update it, what need is being addressed, or even who the website or app is for. The real test will be whether Google and the partner museums will continue to support the Cultural Institute with new content. This has been a recurring problem with museums’ digital endeavors, but perhaps the collaboration with Google (and its extensive infrastructure) will help.

Moreover, accessibility is an admirable goal, but there is a very wide gap between putting stuff online and creating something that lots of people (teachers, students, people who don’t live near museums) actually want to use. I’m encouraged by the range of material on the Cultural Institute site. Some content is fairly general, perhaps suitable for a 3rd grade science report, while other content is far more in-depth. I will be very curious to see what the public ends up using, and for what purpose. It would also be neat to see if this ended up being the start of a truly global digital collection, useful for educators and researchers alike. We’ll see if the Cultural Institute ends up being the catalyst that finally makes digital museums happen!

3 Comments

Filed under collections, dinosaurs, education, exhibits, museums, sauropods, science communication

Tagged as digital, education, Google Cultural Institute, museums, natural history museums, science communication, science education

August 4, 2016 · 12:16 pm

Painting the Ancient Seas

During a 1958 benchmarking trip to a number of North American natural history museums, Smithsonian exhibits specialist Ann Karras wrote to Assistant Secretary Remington Kellogg about the state of artwork in paleontology displays. She noted with some frustration that since the paleontological community’s early 20th century love affair with Charles Knight, very little had been accomplished in this field. Everywhere she went, Karras saw reproductions of the same decades-old Knight paintings, supplemented by only the most tentative attempts at original artwork. As Karras postulated, “reverence for [Knight’s] work on the part of paleontologists may have thwarted any ambitions in that area of illustration for some years.” The sole outlier was the Peabody Museum of Natural History, home of the 1947 Age of Reptiles mural by Rudolph Zallinger. Impressed by the scale and quality of this 110-foot fresco, Karras suggested that the Smithsonian invest in a similarly monumental piece of up-to-date paleoart at some point in the future.

Karras’s wish was finally realized in 1990, with the debut of Eleanor Kish’s epic Life in the Ancient Seas mural in the exhibit of the same name. Sixteen feet high and 130 feet long (with a sixteen by twenty foot supplement on the opposite wall), this mural is even larger than Zallinger’s better-known magnum opus. It also covers more of Earth’s history, spanning 541 years of deep time across the entire Phanerozoic Eon. But while The Age of Reptiles charts the progression of life on land, Life in the Ancient Seas follows the denizens of the undersea realm. From the explosion of invertebrate diversity in the Cambrian to the proliferation of aquatic mammals in the recent past, the mural demonstrates that the history of life is most thoroughly documented by marine fossils.

Dunkleosteus. Art by Eleanor Kish. Copyright Smithsonian Institution.

Close-up of Dunkleosteus and eurypterids. Art by Eleanor Kish. Source

The idea to include a mural in the Life in the Ancient Seas exhibit came relatively late. There was no mention of the artwork in the 1987 briefing document for potential donors, and as late as June of that year curator Nicholas Hotton was writing in hopeful terms about the inclusion of a full-color illustration of Dolichorhynchops. Eventually, however, the exhibit team got the go-ahead to start looking for an artist. Content Specialist Linda Deck started by assembling a list of three dozen prominent paleoartists. She sent each of them a letter of invitation, describing the project and emphasizing the immense scale of the desired product. Half of the artists responded with resumes and portfolio samples, and from these the exhibit team narrowed the field to six candidates*.

The short-list candidates were then given a $1000 stipend to paint a small sample piece. Each artist was provided with the scenario (a group of ammonites releasing a cloud of ink upon being attacked by a mosasaur), an assortment of fossil reference photos, and encouragement to get in touch with NMNH curators as needed. Of the five artists who completed this challenge, the exhibit team agreed unanimously that Kish’s work was the best fit for the project. Not only did she demonstrate the ability to accurately render the animals with anatomical precision, her bold color palate would work well as the backdrop for the entire exhibit.

Art by Eleanor Kish. Copyright Smithsonian Institution.

The mosasaur section of the mural, presumably not far off from Kish’s original concept piece. Art by Eleanor Kish. Courtesy of the Smithsonian Institution.

Eleanor (or Ely) Kish was born in 1924 to a family of artists. Growing up in New Jersey, she became a naturalized Canadian citizen in 1972. While Kish was a professional artist for most of her adult life, her career in paleontological illustration kicked off in the 1970s, at Ottawa’s Canadian Museum of Nature. It was there that she worked with paleontologist Dale Russell on some of the earliest Renaissance-era dinosaur reconstructions (an assortment of paintings from Russel’s An Odessey of Time: The Dinosaurs of North America can be seen here). Tales of dinosaur art from this era often focus on Gregory Paul, John Sibbick, and their imitators, but Kish’s work was similarly prominent in books and magazines of the day.

Kish’s art is instantly recognizable for its portrayal of active, highly expressive dinosaurs in breathtakingly realized landscapes. The worlds she created – particularly the skies – have an almost poetic beauty, while the plants and animals that inhabit them drip with dew and pulsate with life. Kish’s work is often overlooked today because her dinosaurs are shrink-wrapped in the extreme, sometimes appearing emaciated or even ghoulish. The skeletal look is very much out of vogue (modern paleontologists prefer their dinosaurs appropriately bulked out with muscle, fat, and feathers), but as Christian Kammerer pointed out on twitter, it’s important to consider Kish’s art in context. Her carefully-researched work was a powerful counterpoint to the rotund, shapeless dinosaurs that had dominated paleoart in preceding decades, and a critical step on the road to the reconstructions we know today.

Kish with pencil sketch, color comprehensive, and models.

The artist with her models, pencil sketch, and color comprehensive. Courtesy of the Smithsonian Institution Archives.

Kish pretends to size up her canvas during a video shoot. Courtesy of the Smithsonian Institution Archives.

Once she received her work visa in May 1988, Kish moved to the Washington, DC area to begin Life in the Ancient Seas. She began by constructing small models of the most prominent animals that would appear in the mural. Working primarily with Sculptey, she built the animals’ skeletons first, using fossil photos as reference. Once these were approved, Kish sculpted the animals’ musculature and outer surfaces. She then used her models to paint a 16-foot small scale (1.5 inch to 1 foot) pencil sketch of the mural. This enabled her to work out the poses and behaviors of the animals, as well as the overall composition of the artwork. The next step was to produce the “color comprehensive”: a miniature painting with all the detail of the final piece. Since it would be impossible to photograph the entire mural within the narrow confines of Hall 5, this is the version that was reproduced for books, magazines, and postcards.

After fourteen months of preliminary work, Kish applied the first brushstrokes to the wall in the Spring of 1989. The museum’s graphics shop had prepared the surface well in advance, laying overlapping sheets of canvas onto drywall and carefully buffing out wrinkles and tears. Kish painted 130 feet of ocean backdrop for the main mural first, which took nearly two months. Next, Kish completed the smaller Cretaceous mural on the south side of the gallery, then moved on to the daunting task of filling in the large mural. She populated the scene chronologically, starting with the Paleozoic on the far left and moving forward through time. The exhibits department coordinated closely with Kish, so that the rest of the exhibit could be installed in her wake as each section of the mural was finished. The project took a total of two years to complete.

The “small” 20-foot Mesozoic mural, which appeared on the south wall of Hall 5. Art by Eleanor Kish. Courtesy of the Smithsonian Institution.

Life in the Ancient Seas is an absolute masterpiece. Within the exhibit, this meticulously crafted image defines the space’s layout and color palate. It visually separates concepts and themes, and even directs visitor traffic with it’s strong leftward momentum. But Life in the Ancient Seas is the rare piece that was designed for a particular space, yet still holds up as a beautiful work of art on its own terms. The three biggest animals – Dunkleosteus, Tylosaurus, and Basilosaurus – anchor the action and provide a focal point for the viewer. From there, dynamic schools of fish draw the eye back and forth across the canvas. The longer one looks at this vibrant and colorful seascape, the more details emerge.

Of course, the primary function of the mural is to bring the static fossils on display to life, and Kish does not disappoint. The canvas is filled with hundreds of animals in perpetual motion. Streams of bubbles erupting from the creatures’ mouths imbue them with breath and energy. Although plenty of animals are being eaten, Life in the Ancient Seas is not a savage struggle of life and death. In one area, an inquisitive shark gets a face full of ink from a cephalopod that has no time for its antics. In another, a school of fish is sent careening in different directions by the powerfully swishing tail of the Tylosaurus. Instead of focusing on the macabre, Kish brilliantly incorporates whimsical humor into her work without plunging into the realm of cartoonishness. It is a feat that other paleoartists might do well to emulate. Meanwhile, Kish cleverly grounds some of the stranger extinct animals by juxtaposing them with their more familiar brethren. For example, the association of Basilosaurus, which resembles a fanciful sea dragon, with comparably mundane dugongs and dolphins makes this serpentine ancestral whale seem more plausible.

The back lit cove where Miocene sea lions and penguins frolic is easily the most beautiful part of the mural. Art by Eleanor Kish. Courtesy of the Smithsonian Institution.

Life in the Ancient Seas was the largest project Kish ever took on. As she stated in multiple interviews, the Smithsonian commission made her career. The money she earned allowed her to buy a rural home in Ontario and convert it into a studio, which allowed her to produce more work more quickly. “I always wanted a studio,” she told the Ottawa Star, “but I never had the money. The Smithsonian gave me that chunk of cash.”

Ely Kish passed away on October 12, 2014 at the age of 90. Those who knew her are quick to mention her kindness and generosity, particularly toward young artists. Past colleagues also fondly recall her impressive bouts of swearing, which would occasionally punctuate her normally soft-spoken demeanor. For the rest of us, we have Kish’s amazing artwork to remember her by. Kish created worlds we could otherwise never see, and she did it on a breathtaking scale. Although hers was a visual medium, she made the past into something we could feel and even experience. She and her talents will be missed.

Many thanks to the Smithsonian Institution Archives staff for providing access to the materials used in writing this article.

References

Deck, L. 1992. The Art in Creating Life in the Ancient Seas. Journal of Natural Science Illustration 1: 4: 1-12.

Marsh, D.E. 2014. From Extinct Monsters to Deep Time: An ethnography of fossil exhibits production at the Smithsonian’s National Museum of Natural History. http://circle.ubc.ca/handle/2429/50177

10 Comments

Filed under exhibits, Extinct Monsters, fish, museums, NMNH, paleoart, reptiles

Tagged as exhibits, Extinct Monsters, museums, natural history museums, NMNH, paleoart, paleontology, Smithsonian

July 27, 2016 · 6:29 pm

Revisting the Ancient Seas

Between 1981 and 1990, the National Museum of Natural History carried out its second major overhaul of the east wing paleontology exhibits. Entitled “Fossils: The History of Life”, the new exhibit complex represented a significant departure from earlier iterations of this space. While the previous renovation arranged specimens according to taxonomy and curatorial specialties, “The History of Life” followed the evolutionary progression of fossil plants and animals through time. The new exhibits also differed from prior efforts in that they were not put together exclusively by curators. Instead, the design process was led by educators and exhibits specialists, who sought curatorial input at all stages. The result was a (comparably) more relatable and approachable paleontology exhibit, created with the museum’s core audience of laypeople in mind.

By 1987, four sections were completed: The Earliest Traces of Life, Conquest of the Land, Reptiles: Masters of the Land, and Mammals in the Limelight. Occupying halls 2, 3, and 4, these exhibits (along with the older Hall of Ice Age Mammals and the Rise of Man in Hall 6) told the complete story of the terrestrial fossil record. However, Hall 5 (the narrow space running parallel to the central dinosaur exhibit on its north side) was still vacant.

1987 map of planned additions to the “History of Life” exhibit complex, including the never-realized Changing Earth. Courtesy of the Smithsonian Institution Archives.

Going back to the 1977 theme statement that kicked off the History of Life renovations, the intent was always for Hall 5 to feature two exhibits: one on prehistoric sea life and another on the geological context for the fossil record. These ideas were fleshed out in a 1987 briefing packet that was distributed to potential donors. As the document explained, “it is in the undersea realm that the history of life is most abundantly documented,” and coverage of fossil marine life is therefore “critical” to visitors’ understanding of evolution through deep time. From the beginning, the “Life in the Ancient Seas” exhibit promised to feature a life-sized diorama of a Permian reef community, mounted skeletons suspended in life-like swimming poses, and an immersive underwater ambiance. Meanwhile, the proposed “Changing Earth” exhibit would “illuminate the entire story [told in the fossil halls] by looking at the ways geological processes have affected the course of evolution over millions of years.” A key feature was a “video disc time machine”, which was essentially a computer terminal where artwork reconstructing different time periods could be viewed.

Changing Earth was ultimately never built. Instead, the allocated space became a windowed fossil preparation lab, which would prove to be one of the most popular exhibits in the History of Life complex. Nevertheless, many of the ideas planned for Changing Earth would be revisited in the Geology, Gems, and Minerals hall, which opened in 1997. Life in the Ancient Seas did get funding, however, and with a budget of approximately $4 million, production of the exhibit was underway by early 1988.

Life in the Ancient Seas concept art. Artist unknown. Courtesy of the Smithsonian Institution Archives.

Life in the Ancient Seas concept art. Artist unknown. Courtesy of the Smithsonian Institution Archives.

As with any large exhibit, Life in the Ancient Seas was made possible through the combined efforts of dozens of talented scientists, artists, and technicians. Like the rest of the History of Life complex, the Department of Exhibits generally initiated and produced the content, which the Department of Paleobiology then revised or approved. Linda Deck was the content specialist, steering the ship throughout the planning and production process. She selected specimens, chose the major storylines, and acted as a bridge between the curators and exhibits staff. Li Bailey and Steve Makovenyi were the designers, overseeing the exhibit’s aesthetics and making sure it functioned as a cohesive whole. Sue Voss was the lead writer of label copy.

The hall’s design revolved around two main ideas, one aesthetic and one pedagogical. Visually, the exhibit needed to “simulate the perspective of a scuba diver” (Deck 1992). Makovenyi and Bailey gave the hall a blue-green color palate, with a low, black-tiled ceiling. Shimmering lights projected on the floor contributed to the illusion of traveling through the underwater world. Meanwhile, the layout of the hall adhered strictly to the chronology of geologic time. As visitors traversed the space, archways and glass barriers emphasized the conceptual divisions between the Paleozoic, Mesozoic, and Cenozoic eras.

Tylosaurus and Hesperornis are classic NMNH mounts. Photo by the author.

Dolichorhynchops from Montana, mounted by Arnie Lewis. Photo by Chip Clark.

Life in the Ancient Seas featured over 1,000 specimens, most of which were invertebrates like trilobites, brachiopods, ammonites, and bivalves. Early lists of vertebrates earmarked for display were (as is typical) much longer than the final selection of twelve mounted skeletons – a walrus and a baleen whale were among the casualties. A few of the mounts, like the ancestral whale Basilosaurus (USNM V 4675) and the sea lizard Tylosaurus (USNM V 8898), had already been on display for decades and needed only modest touch-ups for the new exhibit. Most of the vertebrate skeletons, however, were brand new. The Dolichorhynchops (USNM PAL 419645) was collected in Montana in 1977, and acquired in a trade with the Denver Museum of Nature and Science. Arnie Lewis prepared and assembled the mount in 1987. A Eurhinodelphis dolphin (USNM PAL 24477) from Maryland was mounted by contractor Constance Barut Rankin. Her work was so impressive that she earned a full-time position for her trouble. The sea cow Metaxytherium (USNM PAL 244477) was a very late addition, having been excavated in Florida during the 1988 field season.

Miocene dolphin and sea cow. Photo by the author.

A variety of created objects joined the real specimens in telling the story of marine life through time. Model Hybodus sharks swam near the ceiling, and a realistic papier-mâché seabed extended the length of the exhibit beneath the mounted skeletons (little did visitors know this “seabed” was fragile enough to be punched through if it was ever stepped on). The exhibit team decided early on that Life in the Ancient Seas would include an 11-foot high, life-sized diorama of a Permian reef, based on the Glass Mountains deposits in Texas. Smithsonian paleontologist G. Arthur Cooper spent years collecting and publishing on the immaculate fossils found in this region, so a reconstruction of the Permian near-shore ecosystem was an obvious choice. What’s more, there was already a man lined up for the job. Terry Chase of Missouri-based Chase Studios (who would later go on to create Phoenix the whale) had already built a Permian reef for the Petroleum Museum in Midland, Texas, and most of the same molds and designs could be re-used. Still, the NMNH diorama was a massive undertaking, featuring 100,000 unique models – some hand-sculpted and some cast in translucent resin or wax.

Phillip Anderson experimented with a variety of materials to create the shimmering of sunlight shining through water that appeared in the diorama and at the exhibit’s two main entrances. As it turns out, nothing looks as good as actual light penetrating actual water. To accomplish the effect, Anderson rigged a piston cylinder to continuously produce waves in a shoebox-sized plexiglass container of water. A quartz light shone through the container and projected the pattern onto the floors and walls.

The Permian reef at the Midland Petroleum Museum. I stupidly never took a picture of the NMNH version. Source

Life in the Ancient Seas opened in May 1990. In a Washington Post review, Hank Burchard raved about the ocean-themed design and especially Voss’s text, stating that “every museum text writer in town should study her style.” For the next 23 years, Life in the Ancient seas stood out as the gem among the east wing fossil exhibits. It was more colorful, easier to navigate, and generally more inviting than the other History of Life galleries. The theatrical label copy was arguably over the top (“Act One had been a bottom-dweller’s ballet, Act Two would be a swimmer’s spectacle”), but the exhibit as a whole plainly succeeded in presenting the story of evolution, adaptation, and extinction in an appealing and attractive way. Over the years, there were a few changes: the shimmering lights were shut off, a charming clay-mation video about the end-Cretaceous food chain collapse was removed, and the Dunkleosteus skull and Basilosaurus skeleton were relocated to the Ocean Hall (the latter was replaced with a cast of the related whale Zygorhiza). Indeed, the opening of the similarly-themed but far larger Ocean Hall in 2008 overshadowed Life in the Ancient Seas, and made many of its displays redundant. Although it was the best part of the History of Life complex, Life in the Ancient Seas was also the shortest lived. It was the last section to open, and in 2013, it was the first section to close.

Those familiar with the exhibit will have surely noticed that I have yet to discuss the beautiful 122-foot mural painted by Ely Kish. Running the entire length of the exhibit, this amazing artwork outclasses even the famous “Age of Reptiles” at the Yale Peabody Museum in terms of scale and number of subjects depicted. This monumental accomplishment will be the subject of the next post – stay tuned!

References

Burchard, H. 1990. Fossils Fuel Sea Journey. The Washington Post. https://www.washingtonpost.com/archive/lifestyle/1990/05/25/fossils-fuel-sea-journey/d582f067-0745-44a0-90c8-248c1328962a/

Deck, L. 1992. The Art in Creating Life in the Ancient Seas. Journal of Natural Science Illustration 1: 4: 1-12.

Telfer, A. 2013. Goodbye to Life in the Ancient Seas Exhibit. Digging the Fossil Record: Paleobiology at the Smithsonian. http://nmnh.typepad.com/smithsonian_fossils/2013/11/ancient-seas.html

3 Comments

Filed under exhibits, Extinct Monsters, fish, fossil mounts, mammals, museums, NMNH, reptiles

Tagged as exhibits, Extinct Monsters, fossil mounts, museums, natural history museums, NMNH, paleoart, paleontology, Smithsonian

June 19, 2016 · 9:57 am

The Epistemological Challenge of Model Whales

The very nature of whales precludes scientific study of these incredible animals. They are enormous—strong and powerful in life and unwieldy to manipulate in death. They live in the open ocean, where they can only be reached by boat or plane. Living whales fare poorly in captivity, and dead whales rapidly deteriorate into an oily, reeking mess. If there was ever a natural specimen that does not lend itself to display in a museum, it would be a whale.

This is not for lack of trying. Museums have long sought to collect whales, both to complete their records of biodiversity and to show the visiting public the spectacular extremes of animal life. Success in this endeavor has always been mixed. The Natural History Museum of London has one of the best collections of real whales, including dolphins, porpoises, and a humpback (Megaptera novaeangliae) fetus pickled in bathtub-sized vats of alcohol. Larger whales*, however, can only be displayed as skeletons, which unfortunately misrepresent the shape of the living animal (and as many museums have learned the hard way, even whale bones stink and drip blubber for years after cleaning). Many taxidermists have attempted to preserve the skins of large whales over the years, but this has typically resulted in grotesque, short-lived failures**.

A Smithsonian team takes plaster molds from a blue whale caught by whalers in Newfoundland. Source

A museum is a place for real things, but what can museum workers do if a specimen is so irreconcilable with the practicalities of display? Throughout the 20th century, many museums have experimented with life-sized model whales. Vouched by scientists and based on photographs and measurements of actual whales, these models provided (and continue to provide) many visitors with the closest experience they will ever have to seeing a giant whale in person. However, to display a model is to raise key questions about authenticity. Constructed from papier-mâché, plaster, or fiberglass, a model whale lacks the flesh-and-blood reality of a true whale. Its legitimacy comes from a disassociated set of observations, and the perceived authority and expertise of the scientists who made them. The situation is complicated by the fact that we know remarkably little about living whales, and historical scientists knew even less. Model whales have never been intended to deceive audiences, but many could hardly be called accurate reconstructions today.

In the 19th century, the only people who had seen living whales up close were whalers—a group probably more concerned with staying alive than making careful anatomical observations. Scientists had to rely on occasional, all-too-brief surface sightings and the misshapen corpses of beached animals. While the situation has improved, we still know precious little about whales’ lives below the waves. Is it scientifically acceptable, or even ethical, to present a reconstruction of an animal based on such limited information? Let the epistemological nightmare begin!

*By large whales, I am referring primarily to mysticetes and the sperm whale (Physter macrocephalus).

**One notable exception is the juvenile blue whale at the Göteborg Natural History Museum in Sweden. Not only is this the only mounted mysticete in the world, it is the only whale to have an upholstered seating area inside. Once a destination for lovers’ trysts, the whale’s interior now hosts Santa Claus at Christmastime.

Round 1: 1880 – 1938

This bisected humpback at the United States National Museum was the first large whale replica displayed at a major museum. Image courtesy of the Smithsonian Institution Archives.

Spencer Baird, the Smithsonian’s first curator, was a marine biologist with a strong interest in cetaceans. He quickly made the Smithsonian a place for whales, assembling an impressive collection and hiring staff with similar research priorities. It is therefore no surprise that the first full-sized replica of a large whale would be built at the United States National Museum. In 1882, exhibit specialist Joseph Palmer mounted the skeleton of a humpback whale with its left side enclosed in a plaster death cast of the same individual. This display lasted until the early 20th century, when it was scrapped during the move from the Arts and Industries Building to what is now the National Museum of Natural History. In 1901, Ward’s Natural Science Establishment provided a similar half-mount of a sperm whale to the Bishop Museum in Honolulu.

However, museum workers soon set their sights on bigger whales—specifically, the largest animal the Earth has ever known. In 1903, Smithsonian Curator of Mammals Frederick True teamed up with Head of Exhibits Frederick Lucas to create the first scientifically informed life-sized model of a blue whale (Balaenoptera musculus). To accomplish this, the two Fredericks traveled to the Cabot Steam Whaling Company processing station in Newfoundland. At this point in time, whaling had progressed well beyond the rickety wooden ships described by Melville. It was a technologically sophisticated and ruthlessly efficient operation, largely conducted from floating meat factories armed with explosive harpoons. This period of industrialized whaling drove many whale species to the brink of extinction. For their part, True and Lucas were convinced that they only had a few years left to observe a giant cetacean firsthand.

After debuting at the St. Louis World’s fair, Lucas’s blue (or “sulphur-bottom”) whale found at home at USNM. Photo courtesy of the Smithsonian Institution Archives..

True and Lucas watched the whalers haul in several smaller blue whales before selecting a 78-foot, 70-ton behemoth as their subject. Once the whalers brought the dead animal into shallow water, the museum workers rode out in a dinghy to measure the whale and take plaster molds of its flank, flukes, and head. They worked continuously over two days, racing to beat the onset of decomposition. The resulting molds only represented half the animal, and were significantly distorted by the sagging and bloating of the carcass, but Lucas made do.

Following Carl Akeley’s general method for creating life-like taxidermy mounts, Lucas started by blocking out the whale’s basic dimensions with a steel and basswood frame. His team then used wood and wire mesh to further shape the boat-like model, and finished it with an outer layer of papier-mâché. It is unclear if Lucas was able to use any actual casts of the Newfoundland whale, or if he sculpted it freehand using the molds as reference. Most likely, it was a combination of the two. The colossal model was shipped by rail for its debut at the 1904 Louisiana Purchase Exposition in St. Louis (alongside a familiar Stegosaurus and Triceratops). Afterward, Lucas’s whale was displayed in the Arts and Industries Building, and later, in the west wing of the newly completed NMNH.

In 1906, the American Museum of Natural History started work on a blue whale of their own. Rather than measuring their own dead whale, the AMNH exhibits team led by F.C.A. Richardson (who also built the NMNH Stegosaurus) used measurements from True’s monograph, Whalebone Whales of the Western North Atlantic. In fact, the New York model ended up with virtually identical proportions to its Smithsonian predecessor, and was probably styled after the same Newfoundland carcass. Richardson ran into trouble when he couldn’t get his whale’s papier-mâché skin to hold up—it sagged against the wooden frame, making the model look emaciated. Richardson was eventually dismissed from the project, replaced by Roy Chapman Andrews (who would later lead the Central Asiatic Expeditions). At the time, neither Andrews nor anyone else working on the model had ever seen a whale in person. Still, the completed model was, by all contemporary accounts, just as convincing as the Smithsonian version.

It seems there is nowhere in the NHM Hall of Mammals where one can see, much less photograph, the entire blue whale. Source

On the other side of the Atlantic, London NHM scientists scoffed at the Americans and their replica whales. Zoological Department head William Calman was particularly contemptuous, opining that natural history museums should only display real specimens. Apparently something changed in the decades that followed, because in 1937 NHM unveiled a wood-and-plaster blue whale model built by Percy Stammwitz. For some reason it is often claimed that the London cetacean was the first life-sized blue whale replica, which is plainly untrue. Nevertheless, at 92 feet and seven tons, it was the largest such exhibit when it debuted. It is also the oldest blue whale replica that is still on display today.

Round 2: 1963 – 1969

The Smithsonian’s second blue whale model dominated the Life in the Sea exhibit. Photo courtesy of the Smithsonian Institution Archives.

Back in America, the NMNH and AMNH blue whales endured for several decades. Eventually, however, new cetacean research and new standards for museum displays made these first generation models obsolete. In the late 1950s, Frank Taylor initiated the Smithsonian-wide modernization program, which was to replace the institution’s aging exhibits. Early on the agenda was an update to the marine life exhibit, home to the 1904 blue whale. Designing the new hall was like pulling teeth, as intransigent curators refused to cooperate or furnish specimens for what they saw as a misguided endeavor*. Still, Taylor was able to commission a new, larger blue whale model to serve as the exhibit’s centerpiece.

The first NMNH whale bore an unfortunate resemblance to a giant grey sausage**. True and Lucas based the proportions on a bloated and decomposing carcass, understandably missing some of the nuances of the animal’s form. Meanwhile, the model’s stiff posture and cylindrical shape were necessary given the structural limitations of the materials used in its construction. The 1963 model corrected both problems. Although photographs of living blue whales underwater were still a decade away, footage of grey whales (Eschrichtius robustus) at sea helped the model-makers imbue their creation with life. The model was given a gentle diving pose, and lightweight plastic and fiberglass helped make this more dynamic sculpture possible. With a total length of 94 feet, the new whale was painted a cheery light blue, with pale yellow spots. Two steel beams secured the model’s left side to the north wall of the gallery.

After several false starts, AMNH began serious work on a replacement for their own outdated sausage-whale in 1967. The new blue whale model would be the centerpiece of the long-delayed Hall of Ocean Life, now slated to open for the museum’s centennial in 1969. This firm deadline made an already challenging project even more stressful—by the end, Department of Mammology Chair Richard van Gelder had threatened to resign twice, and was nearly fired three times.

The rig securing this 9-ton blue whale model to the ceiling is an engineering marvel. Photo courtesy of the AMNH Research Library.

To start, van Gelder was frustrated by the museum administrators’ firm insistence that the new whale not be suspended by wires (which they thought looked tacky). As a tongue-in-cheek counter-proposal, van Gelder suggested the museum construct a dead, beached whale splayed out on the floor. To his chagrin, the administrators loved the idea because it would be much cheaper. Gordon Reekie of the exhibits department began planning an immersive experience with the sounds of gulls and crashing surf. As legend has it, van Gelder successfully sabotaged the dead whale concept when he told a group of donors that the smell of the rotting carcass would also be simulated.

Lyle Barton eventually devised the final plan, in which the steel structure securing the whale to the ceiling would be hidden within the model’s arching back. Once van Gelder deflected a last-minute request to give the whale an open mouth (not only was this inaccurate, but it would tempt people to throw things into it), workers from StructoFab carved the model from huge blocks of polyurethane. Like Andrews before him, van Gelder had never seen a blue whale in person, but did his best to ensure the accuracy of the model—down to the 28 hairs on its chin.

One more headache remained: at nine tons, the completed model was heavier than anticipated. 600 pounds of paint had to be sanded off and reapplied with a lighter touch before the model met the recommendations of two independent teams of engineers. Still, Barton insisted on measuring the distance between the whale’s chin and the floor every day for several months, just in case.

Restoring the squid and the whale Source

“The Squid and the Whale” with its original paint job. Source

In addition to the blue whale, the Hall of Ocean Life debuted with a second model cetacean. This famous diorama depicts the head of a sperm whale as the animal wrestles with a giant squid (Architeuthis dux). When the model was built, nobody had ever seen a live giant squid, much less one battling the world’s largest predator. We know that sperm whales eat squid because squid parts are found in their bellies. Suction-cup scars on whales’ faces tell us the squid do not always do down without a fight. Still, the 1960s modelmakers had to guess at the appearance of the cephalopod. Even the sperm whale proved difficult to recreate: these animals appear light grey underwater but almost black on the surface, and curators argued how to paint the model. This was rendered moot when the diorama was placed in a nearly pitch-black environment, simulating the gloomy depths 23,000 feet under the sea. Barely visible in the darkness, this display is fantastically eerie. The fact that the event it represents has never been (and may never be) witnessed by human eyes makes it all the more unsettling.

*Curators objected to the planned exhibit’s interdisciplinary presentation, which would use specimens to make broader points about ecology, climate, and maritime history. They preferred displays that were divided by sub-discipline and which strictly adhered to taxonomic tradition.

**Counterintuitively, the awkward, stiff shape of the original NMNH blue whale actually made it more believable: many visitors thought they were looking at a real taxidermied whale gone slightly awry. One of the aims when designing a replacement was to reduce confusion by creating an object that was clearly artificial.

Round 3: 2003 – Present

Blue whale model at AMNH. Photo by the author.

The restored AMNH blue whale in 2015. Photo by the author.

Sadly, not all of the historic cetacean models are still with us. The original NMNH blue whale was discarded in the early 1960s to make way for its replacement. AMNH saved its first whale in storage until 1973, when they offered it free of charge to anyone who could arrange for its removal from the building. When no serious offers were made, this model was also demolished (although the eyeball was sold during a fundraising event). The second NMNH blue whale eventually proved to be somewhat inaccurate: the throat was over-inflated and the coloration was all wrong. It was hidden from view for most of the 1990s, although its back was still visible over a blockade. In 2000, the west wing was converted into the Mammals Hall, and the construction contractor gained ownership of the unwanted whale. He briefly listed the model on eBay, but unfortunately the whale fell apart once it was pulled off the wall.

The International Whaling Commission banned the hunting of blue whales in 1966. Since that time, interest in conservation and improved technology have enhanced our understanding of these marine giants. While few blue whale behaviors have been observed, much less photographed, marine biologists know far more than they did half a century ago. Armed with better knowledge of blue whale anatomy, AMNH exhibits staff made several modifications to the 1969 model. In addition to a resculpted jawline and a relocated blowhole, the whale gained a navel and an anus (both details were overlooked the first time around). Finally, its slate gray skin, based on photographs of beached carcasses, was repainted in the vivid blue of a living whale.

Like the blue whale, the AMNH giant squid was remodeled and repainted in 2003 based on new information about this elusive creature’s shape and color. Photo by the author.

The roster of model cetaceans has seen several additions in recent decades. Among them are a gray whale built for the Monterey Bay Aquarium in 1984, and yet another blue whale displayed outside Tokyo’s National Museum of Nature and Science. One of the newest life-sized whale sculptures to grace museum halls is Phoenix, a North Atlantic right whale (Eubalaena glacialis) on display at NMNH since 2008. This model is special because it represents a real, individual animal that is alive in the ocean today.

Scientists at the New England Aquarium have tracked the real Phoenix (a.k.a. #1705) since her birth in 1987. She was selected for the NMNH model because her life history is well known, and because the ongoing study of this individual presents an opportunity to show science in action. An interdisciplinary group of researchers including Marilyn Marx, Amy Knowlton, Michael Moore, Jim Mead, and Charles Potter spent two years working out every detail of the model, down to the chin scars Phoenix got in a run-in with a fishing net. Missouri-based Elemoose Studios was commissioned to build the full-sized model. Because the historic space the whale was to be exhibited in could not support the weight of a traditional fiberglass model, modelmaker Terry Chase had to get creative. He designed an ultra-light aluminum frame, with a foam build-up and paper skin. The completed model is 45 feet long but weighs only 2,300 pounds.

Phoenix floats majestically in the NMNH Ocean Hall. Source

A model whale will always be an imperfect substitute for reality. Early attempts were limited as much by available technology and materials as they were by an incomplete understanding of their living counterparts. Lucas and Andrews could scarcely dream of the light but strong urethane foam used to create the Phoenix replica. Nevertheless, model whales have become steadily more accurate with each generation, keeping pace with marine biologists’ improving access to whales in their natural habitat. With considerable effort, it is now even possible to exhibit a convincing duplicate of a living individual.

The advantage of a model whale is that it is much easier to observe than a real whale. Paradoxically, this is also what makes these exhibits so epistemologically challenging. Even for somebody fortunate enough to have seen a whale at sea, a museum model is a much more visceral and relatable encounter. Almost nobody has seen a living blue whale underwater, but millions see the AMNH model every year. For those people, this chunk of polyurethane IS a blue whale. It represents their understanding of the animal, and is how they make sense of any fleeting glimpses of real whales they may have seen. Creating a whale stand-in is therefore not only technically challenging for a museum, it is an immense responsibility.

References

Burnett, D.G. 2012. The Sounding of the Whale: Science and Cetaceans in the Twentieth Century. Chicago, IL: University of Chicago Press.

Hoare, P. 2010. The Whale: In Search of the Giants of the Sea. New York, NY: HarperCollins.

Quinn, S.C. 2006. Windows on Nature: The Great Habitat Dioramas of the American Museum of Natural History. New York, NY: Abrams.

Rader, K.A. and Cain, V.E.M. 2014. Life on Display: Revolutionizing U.S. Museums of Science and Natural History in the Twentieth Century. Chicago, IL: University of Chicago Press.

Rossi, M. 2008. Modeling the Unknown: How to Make a Perfect Whale. Endeavour 32: 2: 58-63.

Rossi, M. 2010. Fabricating Authenticity: Modeling a Whale at the American Museum of Natural History, 1906-1974. Isis 101: 2: 338-361.

Smithsonian Institution. 2008. Modeling Phoenix, Our North Atlantic Right Whale. http://naturalhistory.si.edu/exhibits/ocean_hall/whale_model.html

Smithsonian Institution. 2010. A Century of Whales at the Smithsonian Institution. http://naturalhistory.si.edu/onehundredyears/profiles/Whales_SI.html

Wallace, J.E. 2000. A Gathering of Wonders: Behind the Scenes at the American Museum of Natural History. New York, NY: St. Martin’s Press.

3 Comments

Filed under AMNH, exhibits, history of science, mammals, museums, NHM, NMNH

Tagged as amnh, cetaceans, exhibits, museums, natural history museums, science communication, Smithsonian

June 1, 2016 · 2:41 pm

Book Review: Life on Display

lifeondisplaycover I’ve never written a book review here before, but Karen A. Rader and Victoria E.M. Cain’s Life on Display: Revolutionizing U.S. Museums of Science and Natural History in the 20th Century is a fine place to start. Published in 2014, this fascinating and exhaustively researched volume follows the struggle of natural history museum workers to define the purpose of their institutions. Ultimately, are museums places for exhibits, or places for collections? Rader and Cain chart the internal and external perceptions of natural history museums through time, recounting the people and events that made these institutions what they are. If you have a serious interest in science communication or the history and philosophy of science, Life on Display is a must-read.

Many accounts of the history of museum exhibits (including mine) have placed the transition from cases of specimens with minimal interpretation to audience-centered learning experiences in the latter part of the 20th century. However, Rader and Cain convincingly demonstrate that the seeds for this reform, called the “New Museum Idea”, were planted much earlier. Traditional European museums were places for quiet contemplation, designed by and for the scholarly elite. The new crop of American natural history museums that emerged in the late 19th century were physically modeled after their European forebears, but almost from the get-go their missions were distinctly populist. As early as 1910, museum leaders like Oliver Farrington and Frederic Lucas were using the same rhetoric we use today to sell museums as community resources for lifelong learning. Concerned with the state of science literacy and the increasingly urban experiences of most Americans, these reformers argued that museums could reintroduce the public to nature and hone their skills of observation and deduction.

Exhibits like this one at USNM were deemed incomprehensible and inspired early reform

Exhibit halls like this one at the first United States National Museum were incomprehensible to most visitors. Photo courtesy of the Smithsonian Institution Archives.

By modern standards, early expressions of the New Museum Idea were modest. Strict taxonomic organization was loosened to accommodate categories that were meaningful to laypeople, such as “game birds.” Labels that only included the Latin name and date of a specimen’s collection were revised to include information about the behavior and habitat of the organism in question. Illustrations of the life appearance of certain animals and plants were added, and education departments were established to coordinate tours for schoolchildren. However, even these humble reforms could be hotbeds of internal controversy. Some curators insisted that any kind of reproduction – even an illustration – was bound to confuse visitors, and opined that displaying anything less than the complete range of known diversity for a given group was unfathomable.

Contrary to what one might expect, the lines of conflict did not neatly divide curators from administrators and educators. For example, American Museum of Natural History herpetologist Mary Dickerson was a scientist first, but she staunchly advocated for attractive and comprehensible exhibits. Reformers also had differing political agendas. While Dickerson’s camp wanted to use accessible exhibits to inspire young people to appreciate nature and the need for conservation, AMNH director Henry Osborn saw public displays as a way to enforce social order among immigrant populations.

By the 1920s, advocates for audience-centered exhibits seemed to have won. In the public eye, the primary purpose of a museum was not research – it was to create ever more impressive displays. In particular, meticulously crafted habitat dioramas became the centerpieces of natural history museums. Although inherently artificial, these little worlds behind glass showcased the splendor of the natural world in a way that rows of carefully organized specimens never could. Children found dioramas particularly approachable, and the museums’ primary audience shifted from scholars to families. Dioramas were also the sort of capital expenditures that attracted donors, and for a time natural history museums fared well nurturing relationships with wealthy philanthropists.

Children study a diorama of Peruvian oceanic birds. Photo courtesy of the AMNH Research Library.

In the interwar period, ongoing ambitions to improve science literacy among the general public birthed a new kind of museum. Carlos Cummings led the way by transforming the Buffalo Society of Natural Sciences into one of the first science museums. Here, galleries were organized based on themes and connections, and specimens were utilized to illustrate general ideas. For example, separate halls of invertebrate zoology, ornithology, and mammology were combined in an exhibit that focused on evolution and ecology. After World War II, the newly established science museums also began to focus on technology and industry. Despite a laudable emphasis on practical science, these exhibits often came with significant bias. Corporate sponsorship of energy and agricultural displays was standard practice, as was outright jingoism in exhibits about aviation and space travel.

As science museums continued to carve out their own audience-centered niche, the legacy natural history museums actually regressed to their pre-New Museum Idea state. To me, this is the most fascinating part of Rader and Cain’s narrative. Curators essentially reclaimed their museums as research institutions, letting exhibits languish as they focused on collections and scholarly publications. Smithsonian entomologist Waldo Schmitt typified the mindset of mid-century curators when he declared exhibits to be nothing more than “show windows for displaying our wares and accomplishments” (quoted in Rader and Cain, pg. 170). To this generation of scientists, “outreach” meant participating in a public “ID day” once a year – anything more was beneath them. Museums compensated by hiring more dedicated exhibit and education staff, but without curatorial support these institutions remained decidedly retrograde.

Back to basics: a phylogeny-based mollusc exhibit is installed in 1952. Source

Back to basics: a phylogeny-based mollusc exhibit is installed in 1952. Photo courtesy of the AMNH Photo Archives.

Rader and Cain devote an entire chapter to the disruption caused by Manhattan Project physicist-turned-educator Frank Oppenheimer and his San Francisco Exploratorium. A playground-like open space filled with modular interactive activities, the Exploratorium completely upended the public’s understanding of what a museum could be. The exhibits were designed with rigorous adherence to the scientific method in mind, but they were also active, alive, and more than a little chaotic. The Exploratorium resonated with the counter-culture trends of the late 1960s, and natural history museums saw their visitation plummet as families turned to Oppenheimer and his imitators. Legacy museums insisted that these new science centers weren’t real museums (they didn’t have collections!), but now that the public had a choice they were voting with their feet.

Natural history museums admitted that they had taken the public for granted, but during the 80s and 90s they compensated a little too hard. Following the lead of science centers, many natural history museums turned to business and marketing specialists to fill leadership roles. They branded themselves as tourist attractions, added play areas and gimmicky technology, and used relentlessly-marketed blockbuster exhibits to keep people coming back. Robot dinosaurs and flight simulators heralded a sad decline in museum scholarship, and what’s more, the museums all started to look the same. They sourced popular exhibits from the same vendors, showed the same IMAX movies, and stocked their gift shops with the same merchandise. In many ways, the edutainment boom seemed like a race to the lowest common denominator.

The wonderful NMNH Ocean Hall combines real specimens and in-house research with lessons in theatricality from the Age of Edutainment. Photo by the author.

Although Rader and Cain stop at the end of the 20th century, they touch on recent trends that have helped put natural history museums back on track. Museums are still hurting for funding, and often rely on blockbusters and concessions to keep their doors open. However, in-house researchers are once again taking an active role in the public faces of their institutions. Scientists work with professional designers and educators to create informative displays that also utilize lessons in showmanship learned from blockbuster exhibits. Some museums are working harder to emphasize the importance of their collections, and making them more accessible to the public. Nevertheless, the fact that these collaborations revolve around public interpretation in the first place leads Rader and Cain to conclude that New Museum Idea advocates ultimately won. Exhibits, not collections, are now the heart and soul of natural history museums. Whether or not that is a good thing is, of course, open to debate.

The scope of Rader and Cain’s research is breathtaking – the book includes 164 pages of notes and references. The authors have plumbed the depths of museum archives and despite the breadth of their subject, they have emerged with a clear narrative thread and a convincing conclusion. One thing I found lacking, however, was discussion of the role of paleontology in the history of 20th century museums. Clearly I have a bit of a bias, but Life on Display contains only a few passing references to fossil displays. This seems like a critical omission, both because paleontology is so integral to the public’s understanding of what natural history museums offer and because the basic format of a fossil mount exhibit has remained remarkably consistent since the 19th century. Clearly that is the subject for another book (yes, yes, I’m working on it!).

All in all, Life on Display is an extremely readable and informative account of an oft-overlooked realm of science education. It will be a regular reference for me, and I highly recommend it.

Reference

Rader, K.A. and Cain, V.E.M. 2014. Life on Display: Revolutionizing U.S. Museums of Science and Natural History in the Twentieth Century. Chicago, IL: University of Chicago Press.

1 Comment

Filed under education, exhibits, museums, reviews, science communication

Tagged as amnh, exhibits, museums, natural history museums, science communication, Smithsonian

May 19, 2016 · 11:00 am

Dispatch from SEAVP2016

Wow, it’s been awhile. The real world has been keeping me busy, but I’ve been researching a couple new museum history stories that I will write up with all haste. In the meantime, I’d like to share some brief thoughts on the Southeast Association of Vertebrate Paleontology conference at the Virginia Museum of Natural History, which I attended earlier this week. SEAVP has a reputation for being fairly laid back, even as gatherings of paleontologists go. No frantic networking or jostling to introduce oneself to celebrity researchers, just a bunch of enthusiastic people excited to share their work.

Acrocanthosaurus is photobombed by some legless mammal.

With 50-some attendees, nearly everyone was either speaking or presenting a poster. Miranda Armour-Chelu took on the challenge of reconstructing the taphonomic circumstances surrounding historically collected dugong fossils. Marcelo Kramer shared his adventures prospecting for Quaternary fossils in unexplored caves in northern Brazil. Julie Rej explained the difficulty of identifying Australian agamid fossils when most modern comparative collections in museums consist of pickled lizards, rather than bones. My own talk was a show-and-tell session of some of the cool new fossils discovered by visitors to Maryland’s Dinosaur Park. If I had to pick a standout session, it would be C.T. Griffin’s fascinating research comparing the growth trajectories of early dinosaurs to modern birds and crocodillians. Not as straightforward as one might expect.

Splitting shale at the Solite Fossil Site.

Max’s tanywhatsit fossil.

The following day, we visited the famed Solite Fossil Site, one of the most fossiliferous terrestrial Triassic localities in the world. These shales are best known for preserving an abundance of unique insects, but vertebrates and diagnostic plant fossils are also known. In particular, the site has produced hundreds of the tiny long-necked reptile Tanytrachelos. It only took 20 minutes for my colleague Max Bovis to find a “tany”, and an hour later he reportedly found a fossil fish. Both will be entered into the VMNH collection. We also visited Virginia Tech, where Michelle Stocker and Sterling Nesbit provided a tour of the paleobiology department facilities. We saw unique fossils from Ghost Ranch, New Mexico and the extant comparative specimen lab, but I was most envious of their 3-D printing set-up!

An immersive habitat diorama featuring the Ice Age beaver Castoroides.

What of the exhibits at VMNH? They’re fantastic. Despite the museum’s small size, the production quality on all the displays is really top notch. The Uncovering Virginia hall highlights several fossil sites around the state, including the Ice Age mammals from Saltville, the coal seams of Grundy, and the aforementioned Solite quarry. In addition to original specimens and reconstructions of the excavations, there are a number of inspired hands-on activities. Visitors can put a whale jaw back together and articulate a femur with a pelvis, mirroring challenges actually faced by fossil preparators (nary a sandbox dig in sight!). I also liked a multimedia display where pressing a button (labeled “press here to go back in time”) pulls back an image of the Grundy coal mine and reveals a moving diorama of a Carboniferous coal swamp.

The central Hall of Ancient Life features local whale and Ice Age fossils, as well as some visiting dignitaries like a cast of Big Al the Allosaurus. Don’t forget to check out the second floor balcony, which contains Morrison Formation dinosaur bones and a secret Tenontosaurus mount.

Group photo courtesy of Alex Hastings, VMNH.

All in all, an excellent conference – hats off to Alex Hatings, Christina Byrd, and everyone else involved in arranging it. I’m looking forward to next year’s meeting, which will be hosted by the Gray Fossil Site Museum in Tennessee!

3 Comments

Filed under citizen science, Dinosaur Park, dinosaurs, education, exhibits, field work, mammals, museums, reptiles, reviews

Tagged as exhibits, fossils, museums, paleontology

Tag Archives: museums

Rhinos too thick: Fossils and flattery at Agate Springs

The setting

Dueling quarries

Playing nice

You get a rhino block, and you get a rhino block…

References

Jurassic Museum

The Hidden Rhomaleosaurus

References

The National Fossil Hall Rejects

Stegomastodon (USNM 10707)

Paramylodon (USNM V 15164)

Zygorhiza (USNM PAL 537887)

Tapirs, Horses, and Oreodonts

Brachyceratops (USNM 7953)

Corythosaurus (USNM V 15493)

Assorted Dinosaur Skulls

Dolichorynchops (USNM PAL 419645)

References

A Game Changer?

Painting the Ancient Seas

References

Revisting the Ancient Seas

References

The Epistemological Challenge of Model Whales

Round 1: 1880 – 1938

Round 2: 1963 – 1969

Round 3: 2003 – Present

References

Book Review: Life on Display

Reference

Dispatch from SEAVP2016

Recent Comments

Top Posts & Pages

Blogroll

Tag Archives: museums

The setting

Dueling quarries

Playing nice

You get a rhino block, and you get a rhino block…

References

References

Stegomastodon (USNM 10707)

Paramylodon (USNM V 15164)

Zygorhiza (USNM PAL 537887)

Tapirs, Horses, and Oreodonts

Brachyceratops (USNM 7953)

Corythosaurus (USNM V 15493)

Assorted Dinosaur Skulls

Dolichorynchops (USNM PAL 419645)

References

References

References

Round 1: 1880 – 1938

Round 2: 1963 – 1969

Round 3: 2003 – Present

References

Reference

Recent Comments

Top Posts & Pages

Category Cloud

Blogroll
